VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12205CASE SUB-ASSY, VENTILATION
12205ARING, O(FOR VENTILATION CASE)
12215SEPARATOR, CASE
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
9012608052
main90126-08052
9155180616
main91551-80616
9155180825
main91551-80825
9415180800
main94151-80800

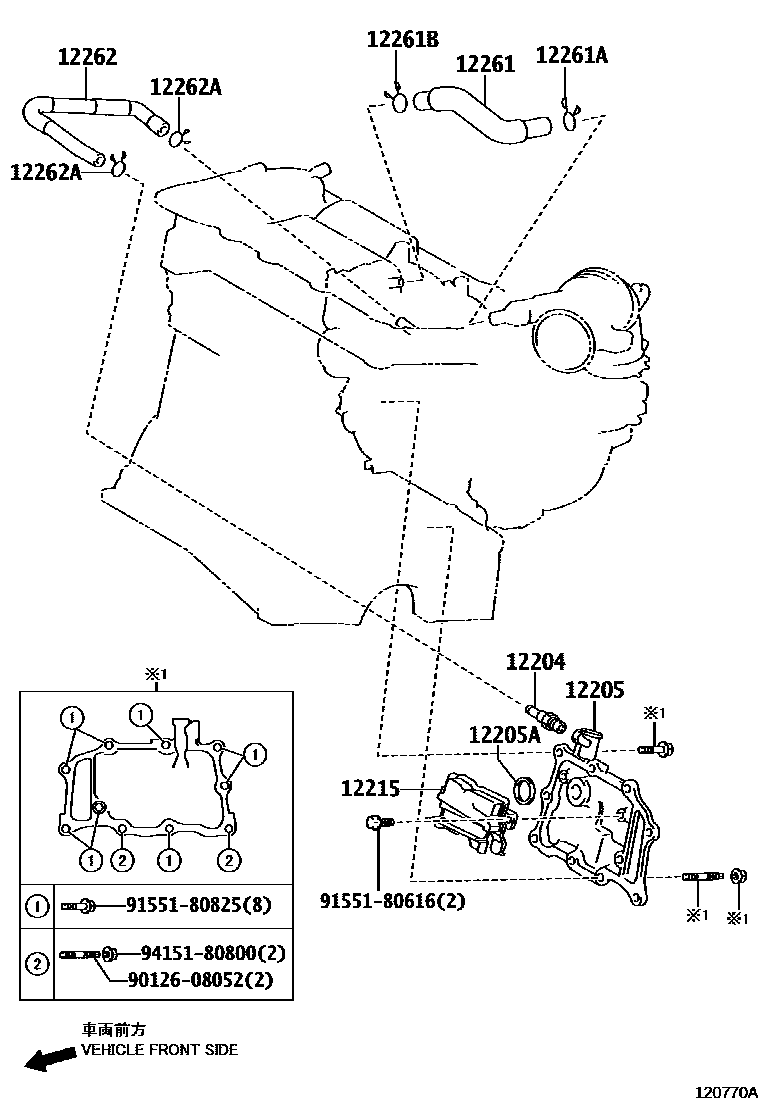

13 parts on this diagram · 1 diagram in section
