E
EPC Data

REAR MOULDING

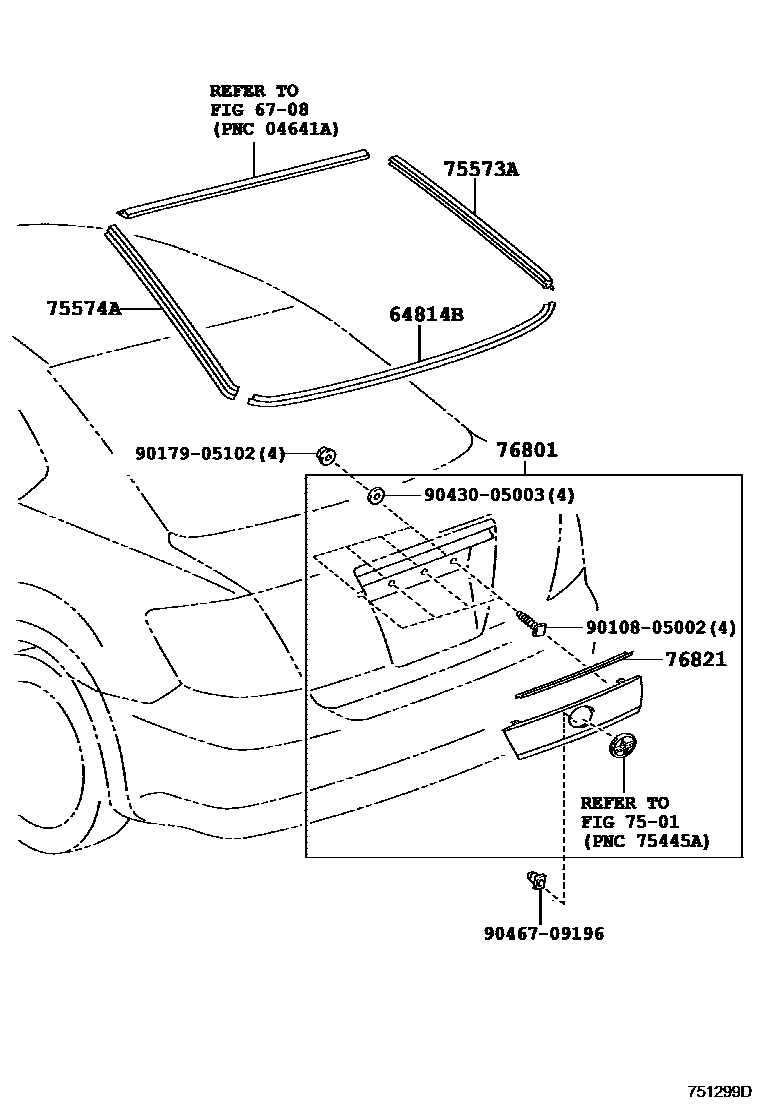

Parts diagram
64814BDAM, BACK WINDOW GLASS ADHESIVE, NO.2
main64814-21030i200405-201007
6708
7501
75573AMOULDING, BACK WINDOW, OUTSIDE RH
main75573-21030i200405-201007
75574AMOULDING, BACK WINDOW, OUTSIDE LH
main75574-21020i200405-201007
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-21070-A0i200405-200905
SUPER WHITE 2,040
sub76801-21071
sub90179-05102
main76801-21070-B0i200405-200905
DK.GRAY MC.,1E0
sub76801-21071
sub90179-05102
main76801-21070-B1i200405-200505
SILVER M.M.,1E7
sub76801-21071
sub90179-05102
main76801-21070-B2i200505-200905
SILVER ME.,1F7
sub76801-21071
sub90179-05102
main76801-21070-C0i200405-200905
BLACK MC.,209
sub76801-21071
sub90179-05102
main76801-21070-D0i200405-200704
BORDEAUX MC.,3P2
sub76801-21071
sub90179-05102
main76801-21070-D2i200704-200905
BLACKISH RED MC.,3R0
sub76801-21071
sub90179-05102
main76801-21070-J0i200405-200505
DK.BLUE M.M.,8P4
sub76801-21071
sub90179-05102
main76801-21070-J1i200405-200704
LT.BLUE ME.,8Q6
sub76801-21071
sub90179-05102
main76801-21070-J2i200505-200905
DK.BLUE MC.,8S6
sub76801-21071
sub90179-05102
main76801-21070-J4i200704-200905
LT.BLUE M.M.,8S7
sub76801-21071
sub90179-05102
main76801-21070-J5i200708-200904
DK.BLUE MC.,8T5
sub76801-21071
sub90179-05102
main76801-21071-A0i200906-201007
SUPER WHITE 2,040
sub76801-21071
main76801-21071-B0i200906-201007
DK.GRAY MC.,1E0
sub76801-21071
main76801-21071-B2i200906-201007
SILVER ME.,1F7
sub76801-21071
main76801-21071-C0i200906-201007
BLACK MC.,209
sub76801-21071
main76801-21071-D2i200906-201007
BLACKISH RED MC.,3R0
sub76801-21071
main76801-21071-J2i200906-201007
DK.BLUE MC.,8S6
sub76801-21071
main76801-21071-J4i200906-201007
LT.BLUE M.M.,8S7
sub76801-21071
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
main76821-21040i200405
9010805002
main90108-05002
9017905102
main90179-05102
9043005003
main90430-05003
9046709196
main90467-09196

11 parts on this diagram · 1 diagram in section
