REAR SEAT & SEAT TRACK

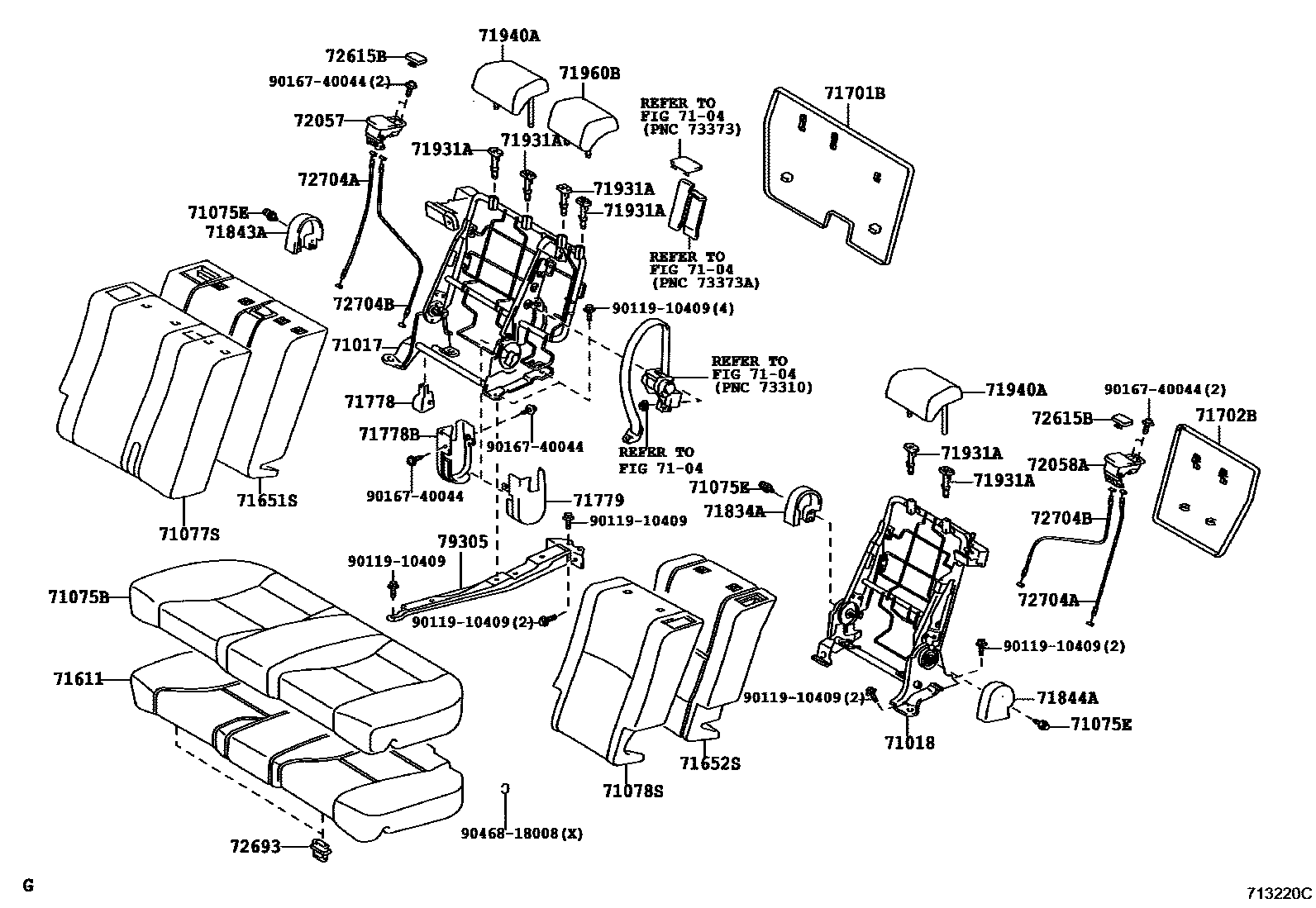

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-21060i200405-201007
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-21050i200405-201007
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-21410-C0i200405-200605
BLACK,TRIM1#
sub71075-21411
main71075-21411-B2i200605-200704
DK.GRAY,TRIM1#
main71075-21411-B3i200704-200804
DK.GRAY,TRIM1#
main71075-21411-B4i200804-201007
DK. GRAY,TRIM1#
71075ECLIP(FOR REAR SEAT)
main90467-06133-B8i200405-200903
DK.GRAY,TRIM1#
sub90467-06133
main90467-07144i200904-201007
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-21420-C0i200405-200605
BLACK,TRIM1#
sub71077-21440
main71077-21440-B0i200605-200704
DK.GRAY,TRIM1#
main71077-21440-B1i200704-200804
DK.GRAY,TRIM1#
main71077-21440-B2i200804-201007
DK. GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-21230-C0i200405-200605
BLACK,TRIM1#
sub71078-21250
main71078-21250-B0i200605-200704
DK.GRAY,TRIM1#
sub71078-21251
main71078-21250-B1i200704-200804
DK.GRAY,TRIM1#
sub71078-21251
main71078-21250-B2i200804-201007
DK. GRAY,TRIM1#
sub71078-21251
71611PAD, REAR SEAT CUSHION
main71503-21010i200405-200411
sub71503-21011
main71503-21011i200412-201007
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-21110i200405-201007
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-21100i200405-201007
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-21010i200405-201007
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-21010i200405-201007
71778COVER, REAR SEAT SIDE HINGE MALE, RH
main71778-21010-B0i200405-201007
DK.GRAY,TRIM1#
71778BCOVER, REAR SEAT SIDE HINGE MALE, RH
main71778-21020-B0i200405-201007
DK.GRAY,TRIM1#
71779COVER, REAR SEAT SIDE HINGE MALE, LH
main71779-21020-B0i200405-201007
DK.GRAY,TRIM1#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
main71834-21030-B0i200405-201007
DK.GRAY,TRIM1#
71843ACOVER, REAR SEAT RECLINING, NO.2 RH
main71843-21010-B0i200405-201007
DK.GRAY,TRIM1#
71844ACOVER, REAR SEAT RECLINING, NO.2 LH
main71844-21010-B0i200405-201007
DK.GRAY,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-B4i200405-200410
W(LOCK)&W(BUTTON),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,CENTER
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B4i200405-200410
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#,CENTER
sub71930-52030
sub71930-42020
sub71930-44020
main71930-44020-B0i200802-201007
W(LOCK),DK.GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-47010-B2i200411-200605
W(LOCK),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,CENTER
sub71930-47010
sub71930-44020
main71930-47010-B2i200411-200605
W(LOCK),DK.GRAY,TRIM1#,CENTER
sub71930-47010
sub71930-44020
main71930-47010-B2i200405-200605
W(LOCK),DK.GRAY,TRIM1#,RH & LH
sub71930-47010
sub71930-44020
main71930-47010-B2i200405-200605
W(LOCK),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,RH & LH
sub71930-47010
sub71930-44020
main71930-47010-B2i200605-200801
W(LOCK),DK.GRAY,TRIM1#
sub71930-47010
sub71930-44020
main71931-42020-B4i200405-200410
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#,CENTER
sub71931-42020
main71931-42020-B4i200405-200410
W(LOCK)&W/O(BUTTON),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,CENTER
sub71931-42020
main71931-47010-B2i200405-200605
W/O(LOCK),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,RH & LH
sub71931-47010
sub71931-42020
main71931-47010-B2i200405-200605
W/O(LOCK),DK.GRAY,TRIM1#,RH & LH
sub71931-47010
sub71931-42020
main71931-47010-B2i200411-200605
W/O(LOCK),DK.GRAY,TRIM1#,CENTER
sub71931-47010
sub71931-42020
main71931-47010-B2i200411-200605
W/O(LOCK),SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#,CENTER
sub71931-47010
sub71931-42020
main71931-47010-B2i200605-201007
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-47010
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-21130-C0i200405-201007
BLACK,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-21060-C0i200405-201007
BLACK,TRIM1#
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-21010-B0i200405-201007
DK.GRAY,TRIM1#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
main72058-21010-B0i200405-201007
DK.GRAY,TRIM1#
72615BCOVER, REAR SEAT LOCK STRIKER, RH
main72615-48020-B2i200405-201007
DK.GRAY,TRIM1#
sub72615-48020
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i200405
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-21010i200405-201007
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
main72704-21020i200405-201007
RH SEAT
main72704-21030i200405-201007
LH SEAT
79305LEG SUB-ASSY, NO.3 SEAT
main79305-21010i200405
9011910409
main90119-10409
9016740044
main90167-40044
9046818008
main90468-18008

31 parts on this diagram · 1 diagram in section
