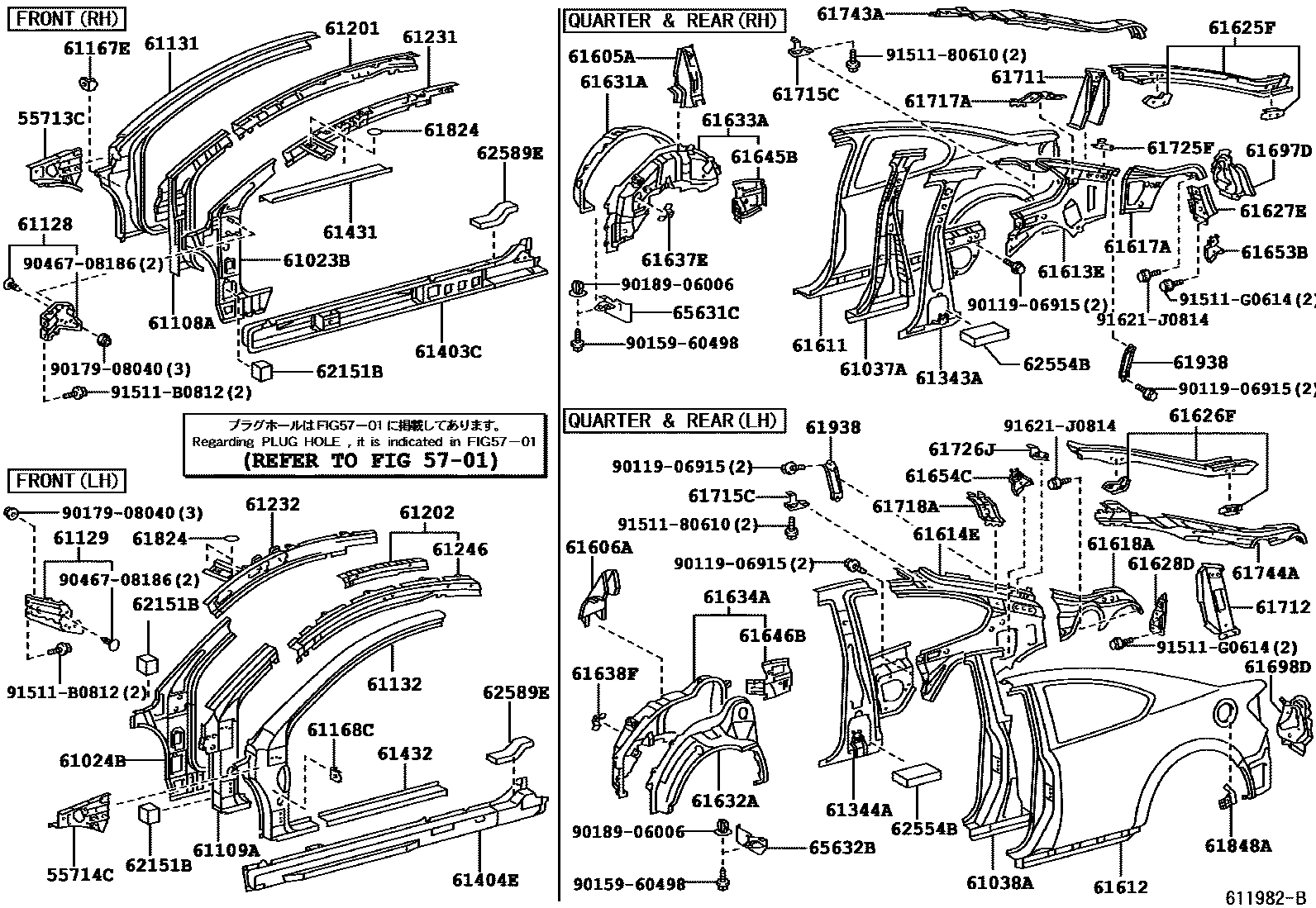

SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61167EBRACKET, NO.6 PILLAR OUTER
61168CBRACKET, NO.6 PILLAR OUTER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61431PANEL, ROCKER, OUTER REAR RH
61432PANEL, ROCKER, OUTER REAR LH
61605AREINFORCEMENT SUB-ASSY, QUARTER PANEL, RH
61606AREINFORCEMENT SUB-ASSY, QUARTER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637EBRACKET, QUARTER WHEEL HOUSE
61638FBRACKET, QUARTER WHEEL HOUSE, LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61653BBRACKET, DECK SIDE TRIM
61654CBRACKET, DECK SIDE TRIM, LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61715CBRACKET, ROOF SIDE, RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH
61725FREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER RH
61726JREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61824PLATE, NOISE CONTROL, NO.1
61848ARETAINER, QUARTER PANEL, LH
61938BRACKET, ROOF SIDE UPR RAIL, RH
62151BPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
62589EPAD, QUARTER PILLAR
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
9011906915
main90119-06915
9015960498
main90159-60498
9017908040
main90179-08040
9018906006
main90189-06006
9046708186
main90467-08186
9151180610
main91511-80610
91511B0812
main91511-B0812
91511G0614
main91511-G0614
91621J0814
main91621-J0814
75 parts on this diagram · 1 diagram in section
