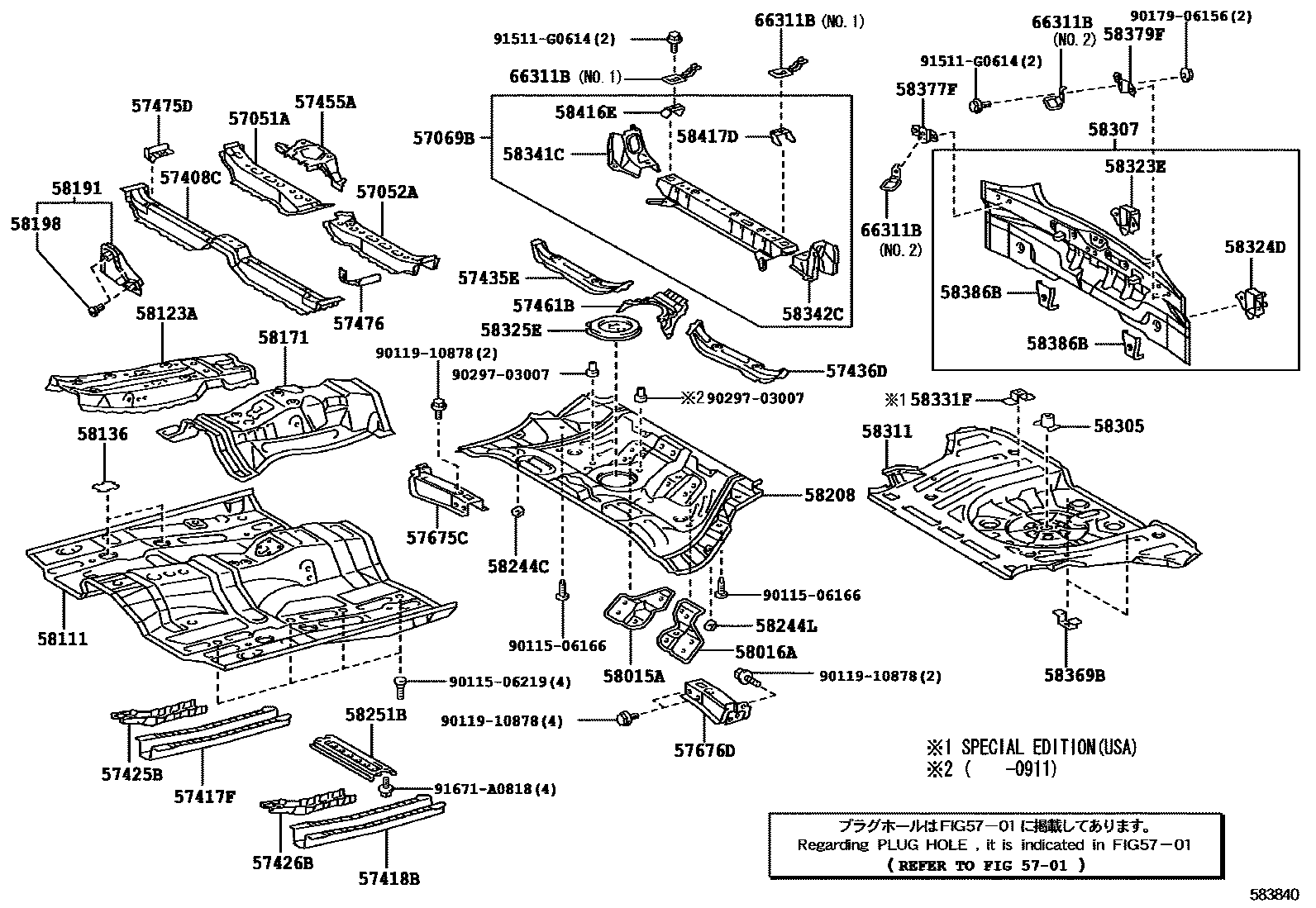

FLOOR PAN & LOWER BACK PANEL
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH
57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58244LBRACKET, REAR SEAT CUSHION MOUNTING, RH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369BBRACKET, FUEL TUBE, NO.3
58377FBRACKET, LOWER BACK TRIM, RH
58379FBRACKET, LOWER BACK TRIM, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58416EBRACKET, DECK BOARD, NO.1 RH
58417DBRACKET, DECK BOARD, NO.1 LH
66311BHOOK, ROPE
NO.2
BLACK,TRIM1#,NO.1
9011506166
main90115-06166
9011506219
main90115-06219
9011910878
main90119-10878
9017906156
main90179-06156
9029703007
main90297-03007
91511G0614
main91511-G0614
91671A0818
main91671-A0818
52 parts on this diagram · 1 diagram in section
