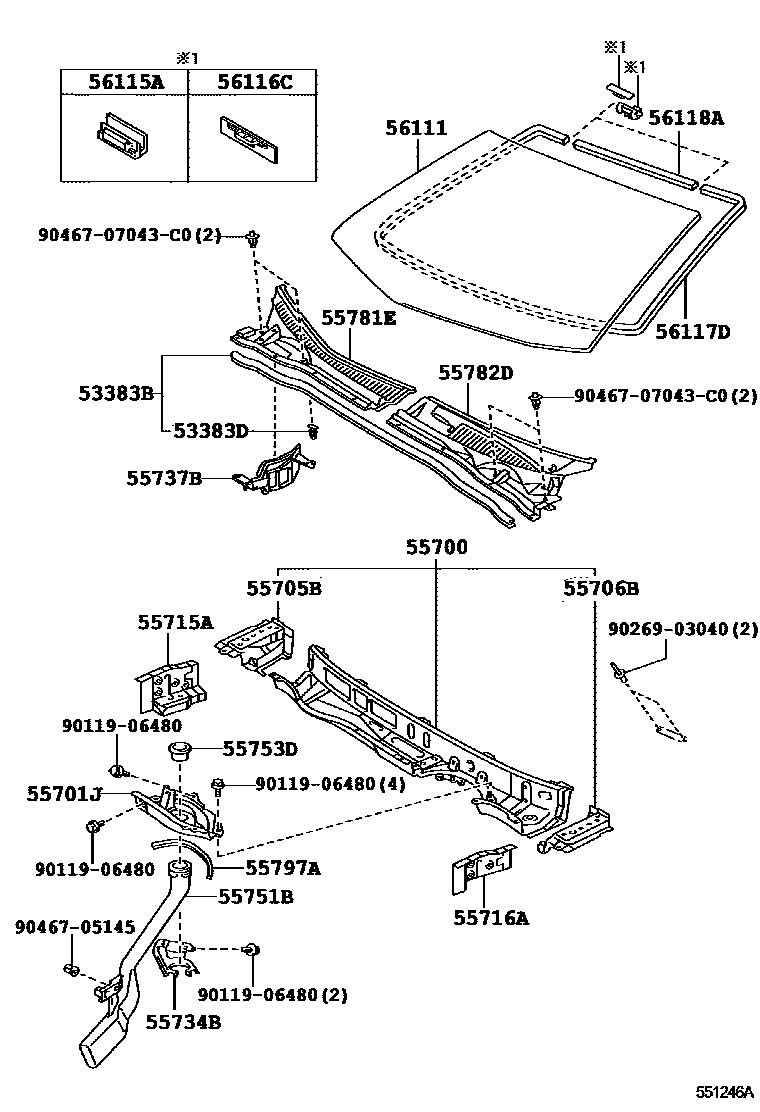

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-21020iANT10200405

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108iANT10200405

55700PANEL ASSY, FRONT

main55700-21080iANT10200405-201007

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-21010iANT10200405

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-21020iANT10200405

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-21020iANT10200405

55715ABRACE, COWL TOP TO APRON, RH

main55715-21020iANT10200405-201007

55716ABRACE, COWL TOP TO APRON, LH

main55716-21020iANT10200405-201007

55734BBRACKET, COWL BODY MOUNTING, LOWER LH

main55734-21010iANT10200405

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-21010iANT10200405

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-21010iANT10200405

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-63010iANT10200405

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-21030iANT10200405

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-21010iANT10200405

55797ASEAL, COWL WATER EXTRACT

main55797-21010iANT10200405

56111GLASS, WINDSHIELD

main56111-21190iANT10200405-200702

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iANT10200405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iANT10200405

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-21030iANT10200405

L=3306

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main64813-52010iANT10200405

*D,L=638

sub56117-50140

9011906480

main90119-06480

9026903040

main90269-03040

9046705145

main90467-05145

9046707043C0

main90467-07043C0

24 parts on this diagram · 1 diagram in section
