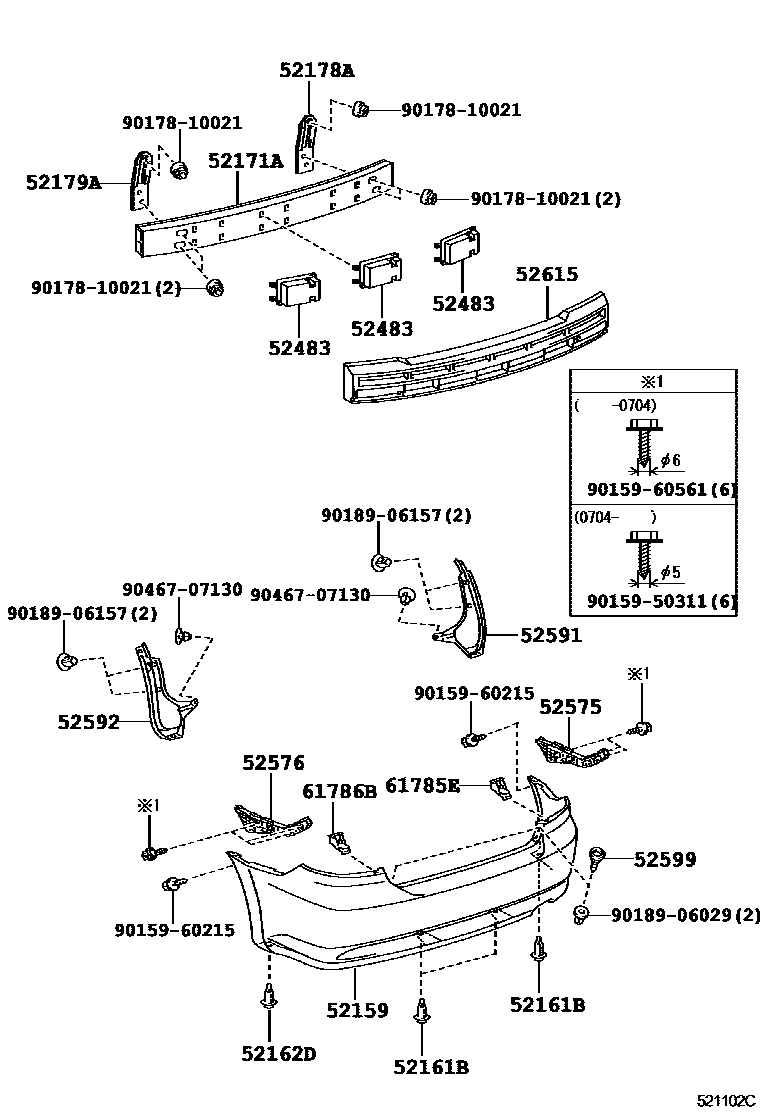

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-21902iANT10200405

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iANT10200405

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-16010iANT10200405

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-21040iANT10200405

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-21010iANT10200405

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52179-21010iANT10200405

52483BRACKET, REAR BUMPER SHIELD, CENTER

main52483-21040iANT10200405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-21030iANT10200405-200704

sub52575-21031

sub90159-50311

main52575-21031iANT10200704

52576RETAINER, REAR BUMPER SIDE, LH

main52576-21030iANT10200405-200704

sub52576-21031

sub90159-50311

main52576-21031iANT10200704

52591SEAL, REAR BUMPER SIDE, RH

main52591-21040iANT10200405

52592SEAL, REAR BUMPER SIDE, LH

main52592-21040iANT10200405

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iANT10200405

52615ABSORBER, REAR BUMPER ENERGY

main52615-21020iANT10200405

61785EBRACKET, REAR BUMPER SIDE, RH

main61786-21020iANT10200405

61786BBRACKET, REAR BUMPER SIDE, LH

main61786-21020iANT10200405

9015950311

main90159-50311

9015960215

main90159-60215

9015960561

main90159-60561

9017810021

main90178-10021

9018906029

main90189-06029

9018906157

main90189-06157

9046707130

main90467-07130

22 parts on this diagram · 1 diagram in section
