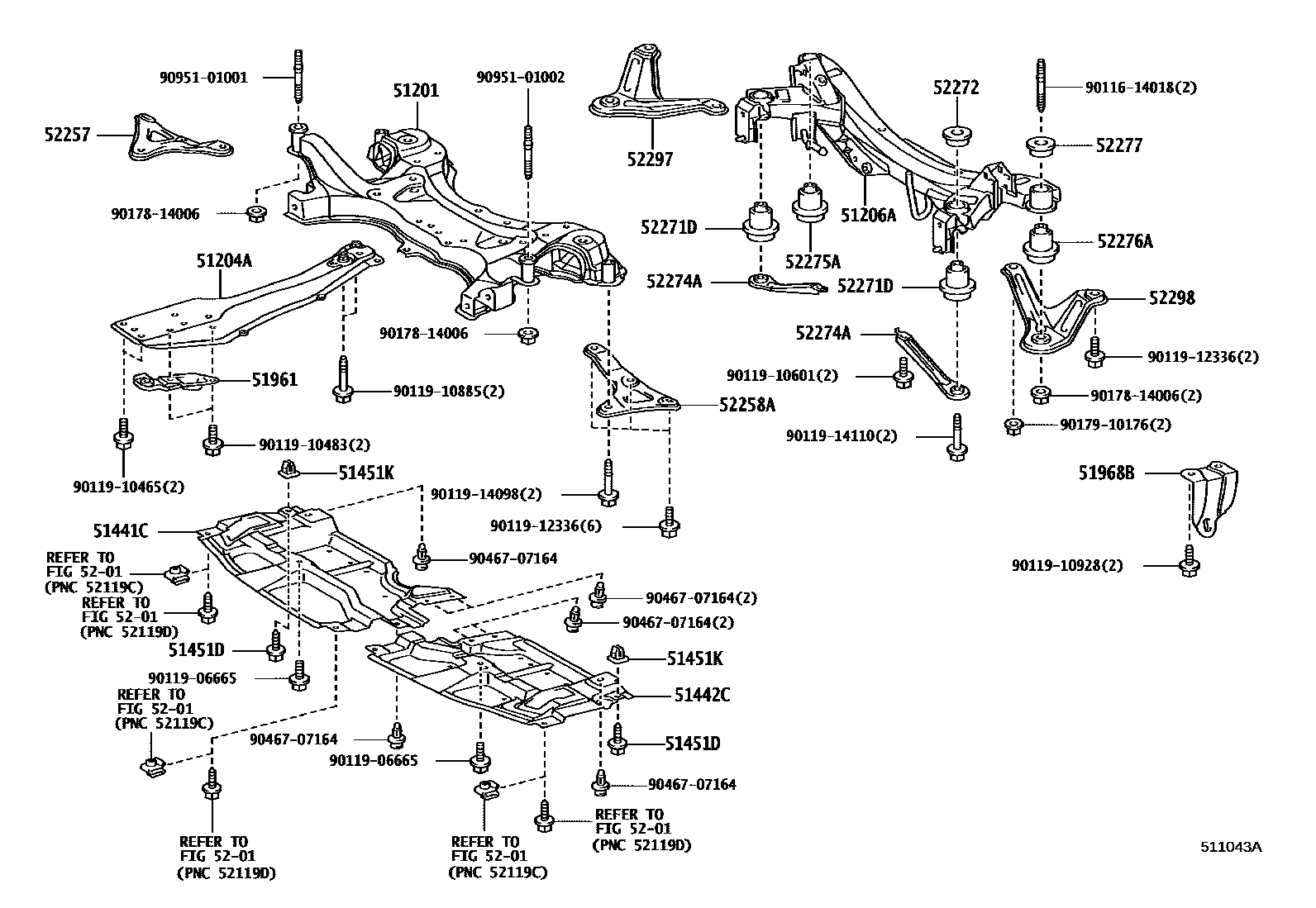

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-21060iANT10200405

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iANT10200405

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-21090iANT10200405-200408

sub51206-21091

main51206-21091iANT10200408

51441CCOVER, ENGINE UNDER, RH

main51441-21030iANT10200405

51442CCOVER, ENGINE UNDER, LH

main51442-21030iANT10200405

51451DSCREW, NO.1

main90159-60383iANT10200405-201007

51451KGROMMET, SCREW, NO.1

main90189-06208iANT10200405-201007

51961HOOK, NO.1

main51963-32040iANT10200405

51968BHOOK, TRANSPORT, REAR LH

main51968-20140iANT10200405-201007

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iANT10200405

sub52257-20071

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iANT10200405

sub52258-20071

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-21030iANT10200405

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-21030iANT10200405

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-21010iANT10200405

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-21030iANT10200405

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-21010iANT10200405

52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-21010iANT10200405

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-21030iANT10200405

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-21030iANT10200405

9011614018

main90116-14018

9011906665

main90119-06665

9011910465

main90119-10465

9011910483

main90119-10483

9011910601

main90119-10601

9011910885

main90119-10885

9011910928

main90119-10928

9011912336

main90119-12336

9011914098

main90119-14098

9011914110

main90119-14110

9017814006

main90178-14006

9017910176

main90179-10176

9046707164

main90467-07164

9095101001

main90951-01001

9095101002

main90951-01002

35 parts on this diagram · 1 diagram in section
