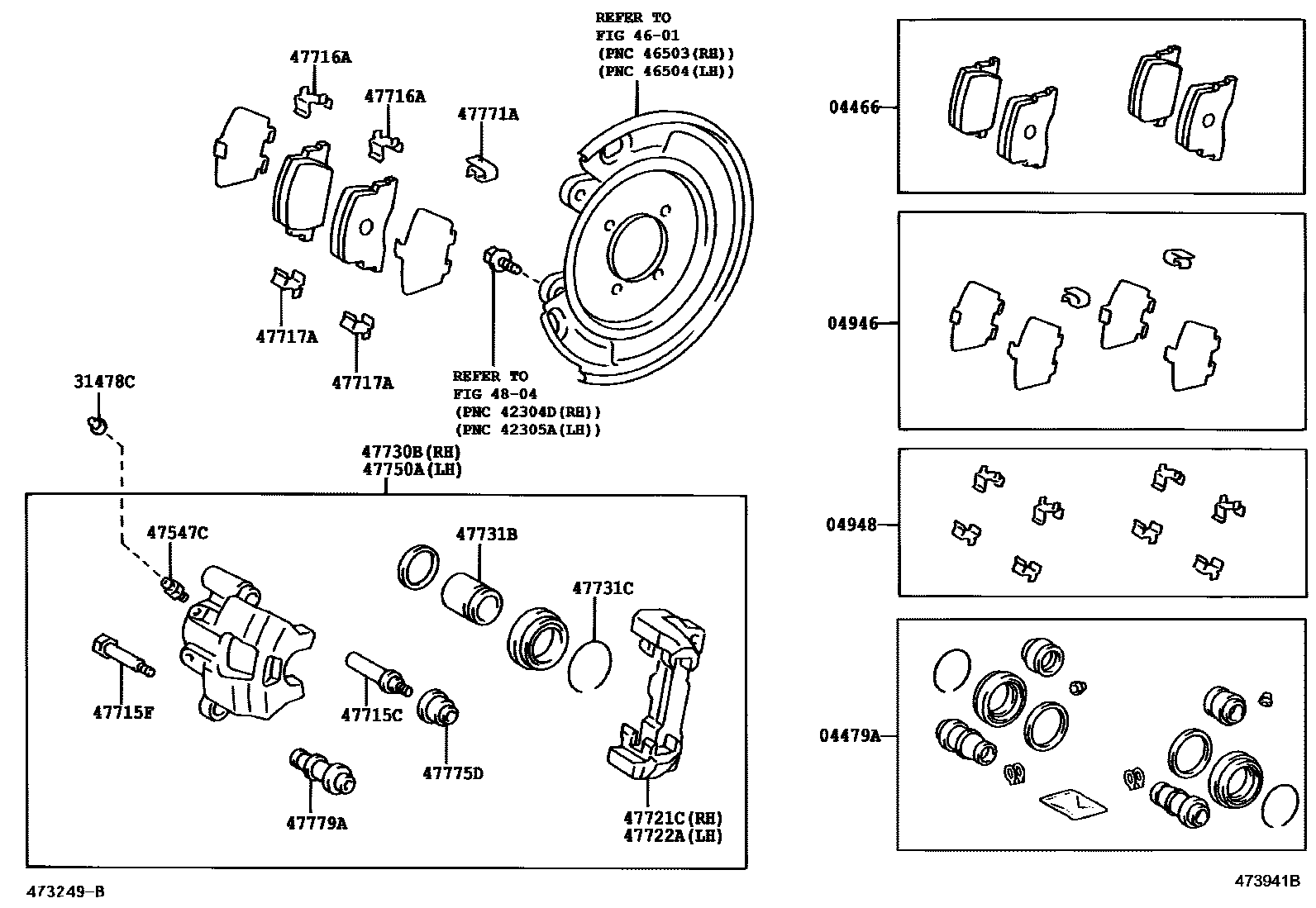

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-32040iANT10200405-201007

MARK SUMITOMO PS549

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-21040iANT10200907

sub04479-21041

main04479-33110iANT10200405-200907

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32080iANT10200405-200907

main04946-32090iANT10200907

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040iANT10200405

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iANT10200405

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iANT10200405

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32030iANT10200405-200907

main47715-32040iANT10200907

47715FPIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47715-32020iANT10200405

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060iANT10200405

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060iANT10200405

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32150iANT10200405-200907

sub47715-32040

sub47721-32151

sub47722-32151

sub47771-32050

sub47875-30340

main47721-32151iANT10200907

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-32150iANT10200405-200907

sub47722-32151

sub47715-32040

sub47771-32050

sub47875-30340

main47722-32151iANT10200907

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21030iANT10200405

47731BPISTON, REAR DISC BRAKE

main47731-33040iANT10200405

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003iANT10200405

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21030iANT10200405

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iANT10200405-200907

main47771-32050iANT10200907

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iANT10200405-200907

main47875-30340iANT10200907

sub47875-30341

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030iANT10200405

4804

21 parts on this diagram · 1 diagram in section
