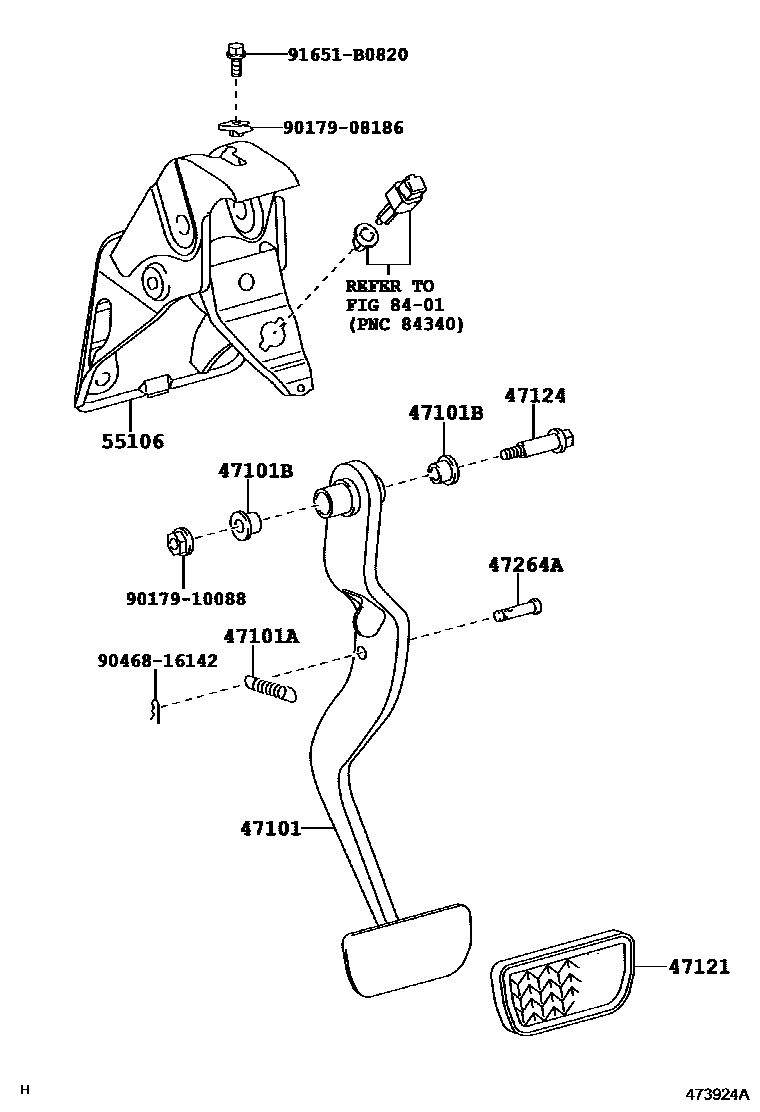

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-21030iANT10..5F200405

main47101-21040iANT10..4FC200405

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07037iANT10200405

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iANT10200405

47121PAD, BRAKE PEDAL

main31321-52010iANT10..5F200405-201007

main47121-52010iANT10..4FC200405-201007

47124SHAFT, BRAKE PEDAL

main90109-10174iANT10200405

47264APIN(FOR PUSH ROD)

main90249-08051iANT10200405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-21020iANT10200405-201007

8401

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91651B0820

main91651-B0820

12 parts on this diagram · 1 diagram in section
