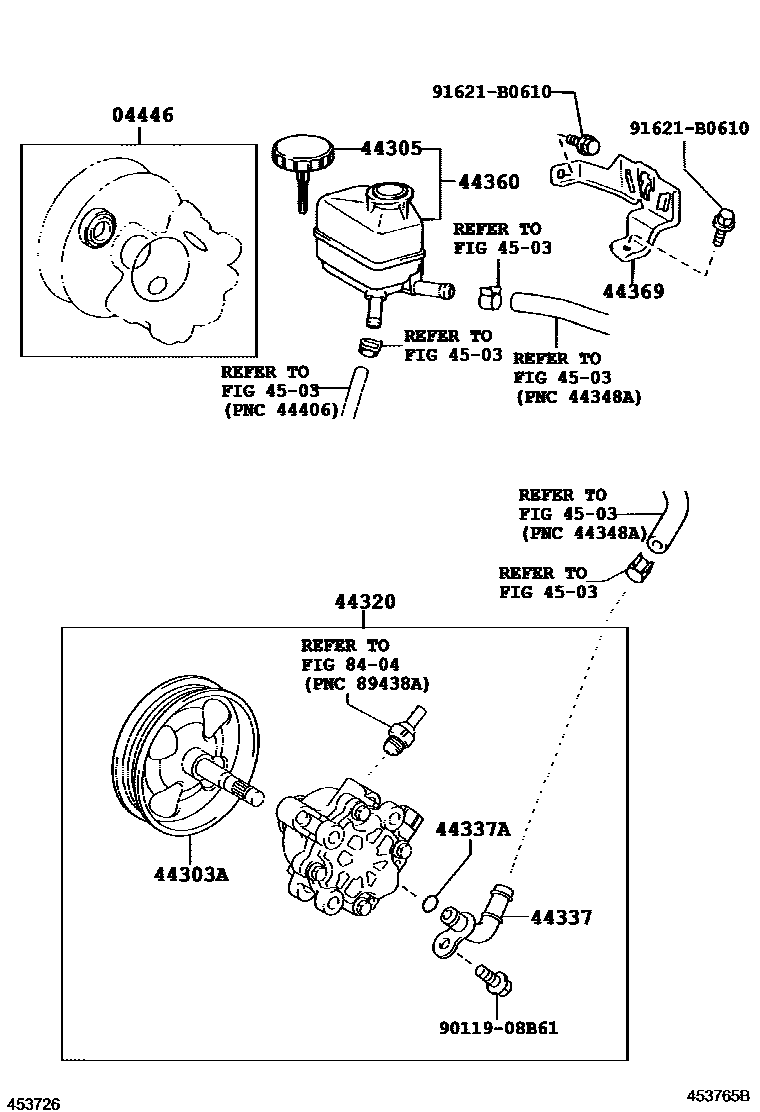

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iANT10200405-201007

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iANT10200405

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iANT10200405-200711

sub44305-20050

main44305-20050iANT10200712

44320PUMP ASSY, VANE

main44310-20870iANT10200405-200504

main44310-21050iANT10200504-201007

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iANT10200405

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iANT10200405

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iANT10200405-201007

44369BRACKET, OIL RESERVOIR, NO.1

main44390-20060iANT10200405

4503

8404

9011908B61

main90119-08B61

91621B0610

main91621-B0610

12 parts on this diagram · 1 diagram in section
