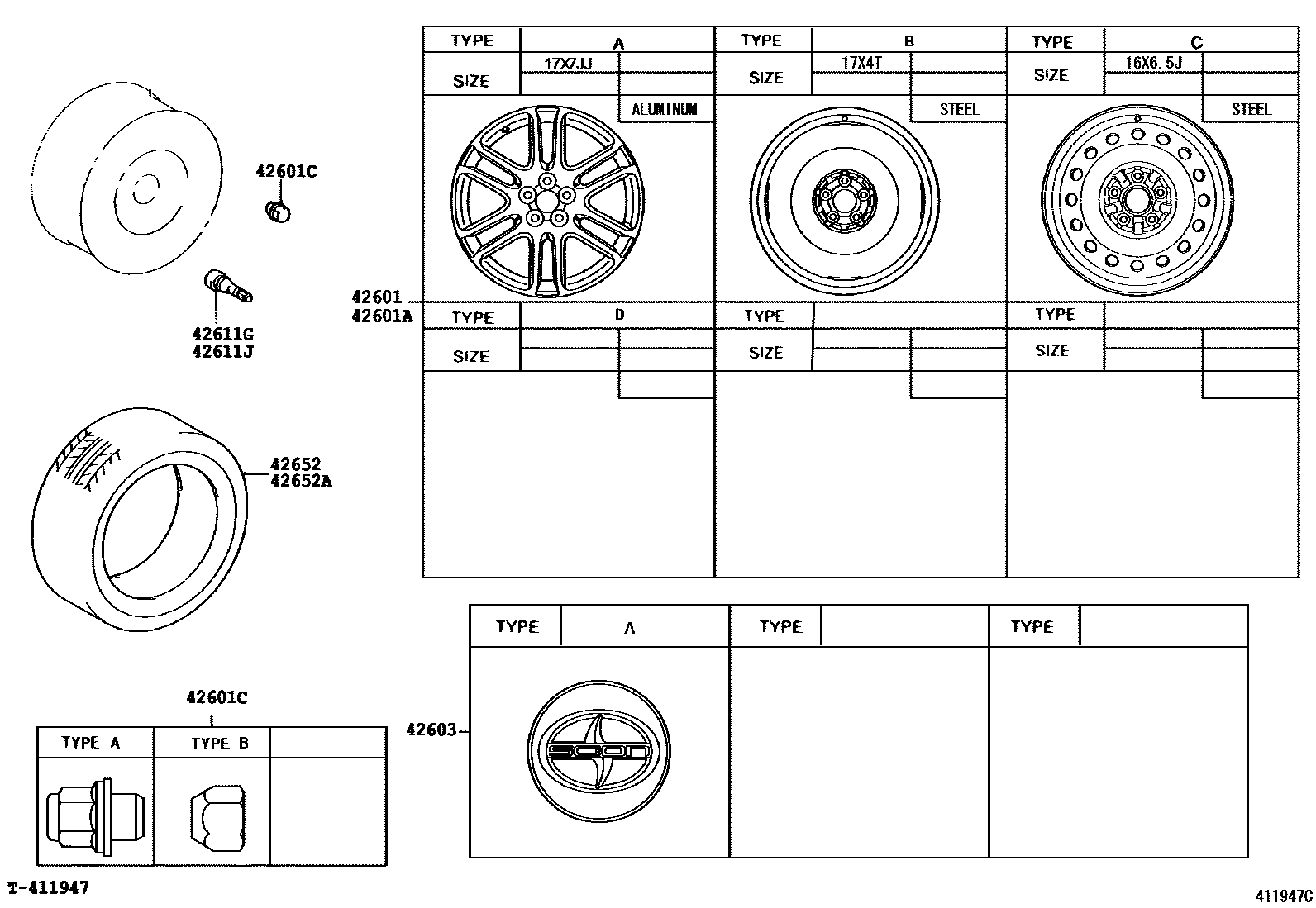

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-21170iANT10200405-200605

17X7JJ, #,TYPE A:REFER ILLUST.

main42611-21190iANT10200605

17X7JJ, #,TYPE A:REFER ILLUST.

main42611-21210iANT10200605-200804

16X6.5J, #,BASE PACKAGE,TYPE C:REFER ILLUST.

main42611-21220iANT10200603-200604

17X7JJ, #,SPECIAL EDITION,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21150iANT10200405-200912

17X4T,TYPE B:REFER ILLUST.

main42611-21290iANT10201001

17X4T,TYPE B:REFER ILLUST.

sub42611-21291

42601CNUT, HUB (FOR AXLE)

main90942-01007iANT10200605-200804

BASE PACKAGE,TYPE B:REFER ILLUST.

main90942-01007iANT10200902-201007

TIRE & DISC WHEEL-205/55R16 STEEL,TYPE B:REFER ILLUST.

main90942-01033iANT10200405-201007

TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-21040iANT10200405

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iANT10200405-200605

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iANT10200405

42652TIRE

main42652-21110iANT10200411-201007

215/45ZR17 *Y/H

main42652-53110iANT10200405-200605

215/45ZR17 *B/S

main42652-53111iANT10200605-200612

215/45ZR17 *B/S

main42652-53112iANT10200612-201007

215/45ZR17 *B/S

main42652-53151iANT10200605-200804

205/55R16,*Y/H,BASE PACKAGE

42652ATIRE (FOR SPARE)

main42652-05250iANT10200512-201007

T125/70D17,MICHELIN

main42652-2B460iANT10200405-201007

T125/70D17,*B/S

8 parts on this diagram · 3 diagrams in section
