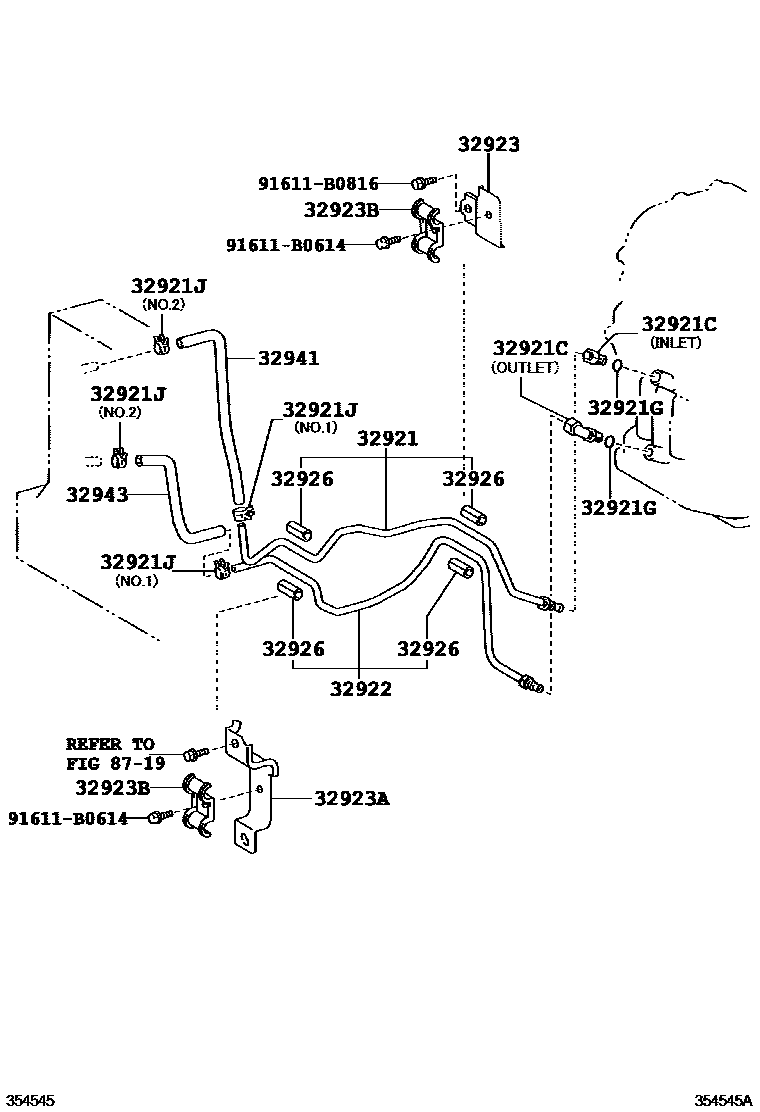

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-21120iANT10..4FC200405

sub32921-68010

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iANT10..4FC200405

INLET

main90407-16010iANT10..4FC200405

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iANT10..4FC200405

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004iANT10..4FC200901

NO.2

main90467-16022iANT10..4FC200405-200812

NO.2

main90467-16022iANT10..4FC200405

NO.1

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-21080iANT10..4FC200405

sub32922-68010

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-32090iANT10..4FC200405

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-63010iANT10..4FC200405

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main90462-12044iANT10..4FC200405

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iANT10..4FC200405

L=35,ID=10

32941HOSE, OIL COOLER INLET, NO.1

main32943-21040iANT10..4FC200405-200409

sub32943-21041

main32943-21041iANT10..4FC200409

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-68020iANT10..4FC200405

8719

91611B0614

main91611-B0614

91611B0816

main91611-B0816

14 parts on this diagram · 1 diagram in section
