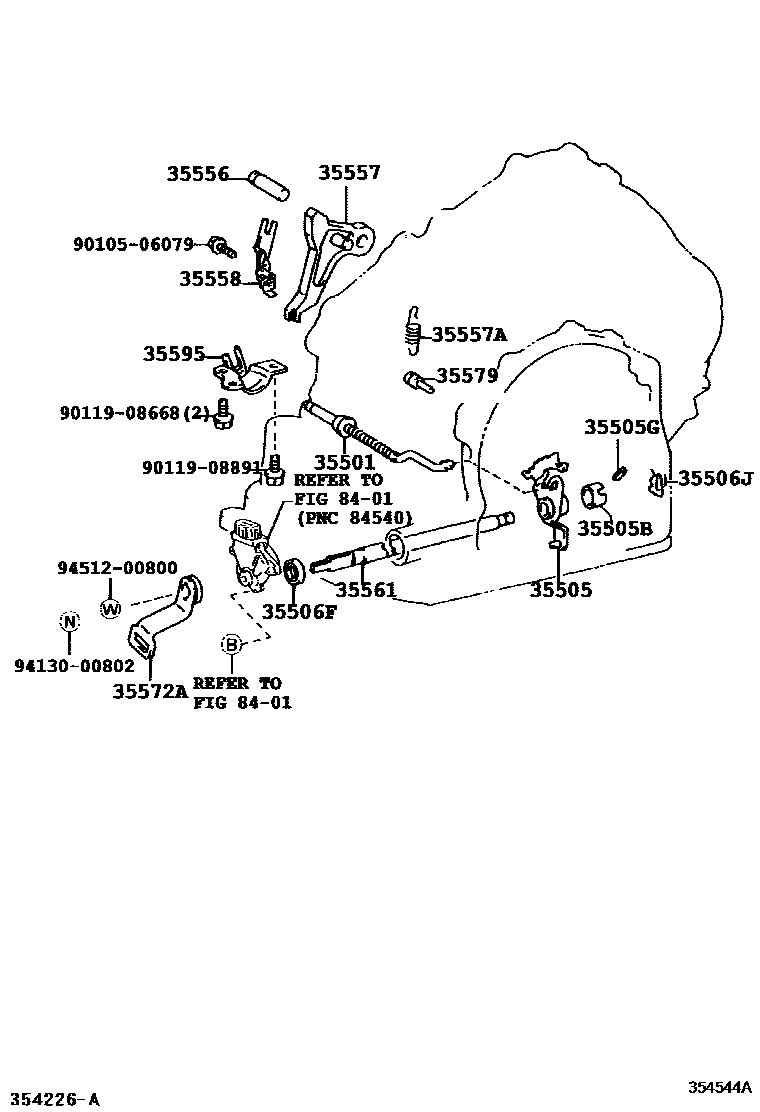

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iANT10..4FC200405

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iANT10..4FC200405

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iANT10..4FC200405

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iANT10..4FC200405-201007

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iANT10..4FC200405

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iANT10..4FC200405

35556SHAFT, PARKING LOCK PAWL

main35556-32030iANT10..4FC200405

35557PAWL, PARKING LOCK

main35590-32010iANT10..4FC200405

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iANT10..4FC200405

35558CLAMP, PAWL SHAFT

main35558-32010iANT10..4FC200405

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iANT10..4FC200405

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48010iANT10..4FC200405-201007

35579PIN, PARKING LOCK PAWL

main35594-21010iANT10..4FC200405

35595BRACKET, PARKING LOCK PAWL

main35595-21010iANT10..4FC200405

8401

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
