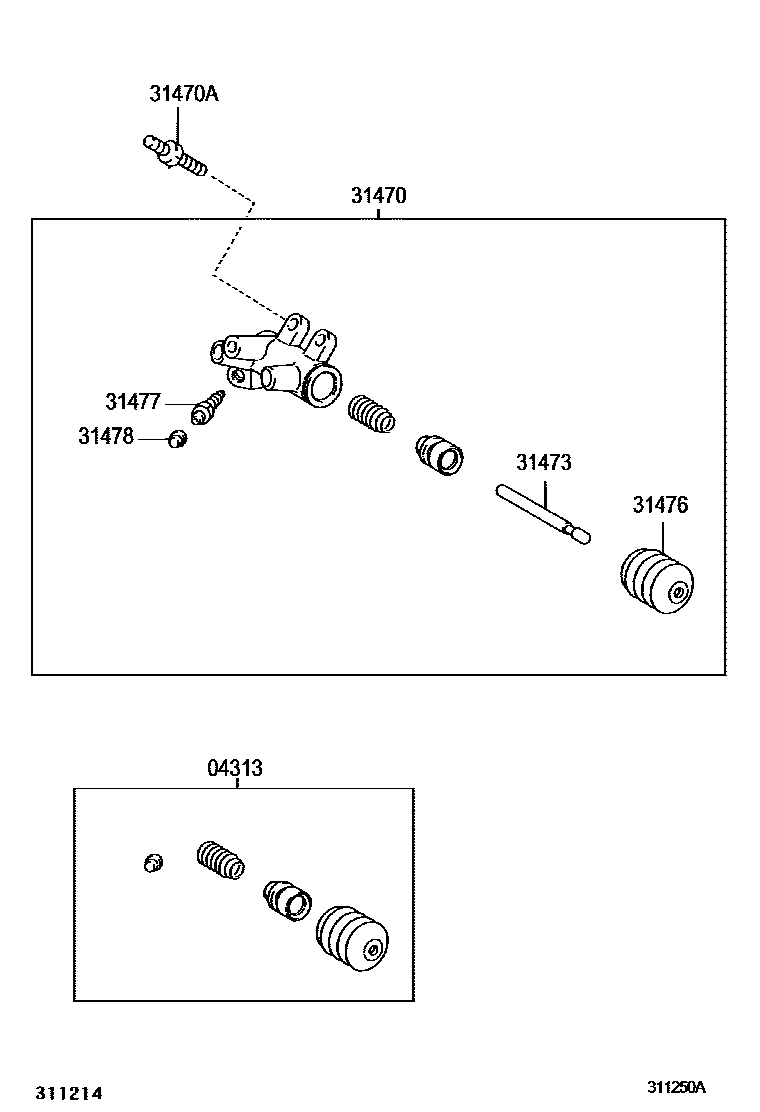

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52020iANT10..5F200405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42031iANT10..5F200406-201007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iANT10..5F200405

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iANT10..5F200406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iANT10..5F200406

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iANT10..5F200406

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iANT10..5F200406

7 parts on this diagram · 1 diagram in section
