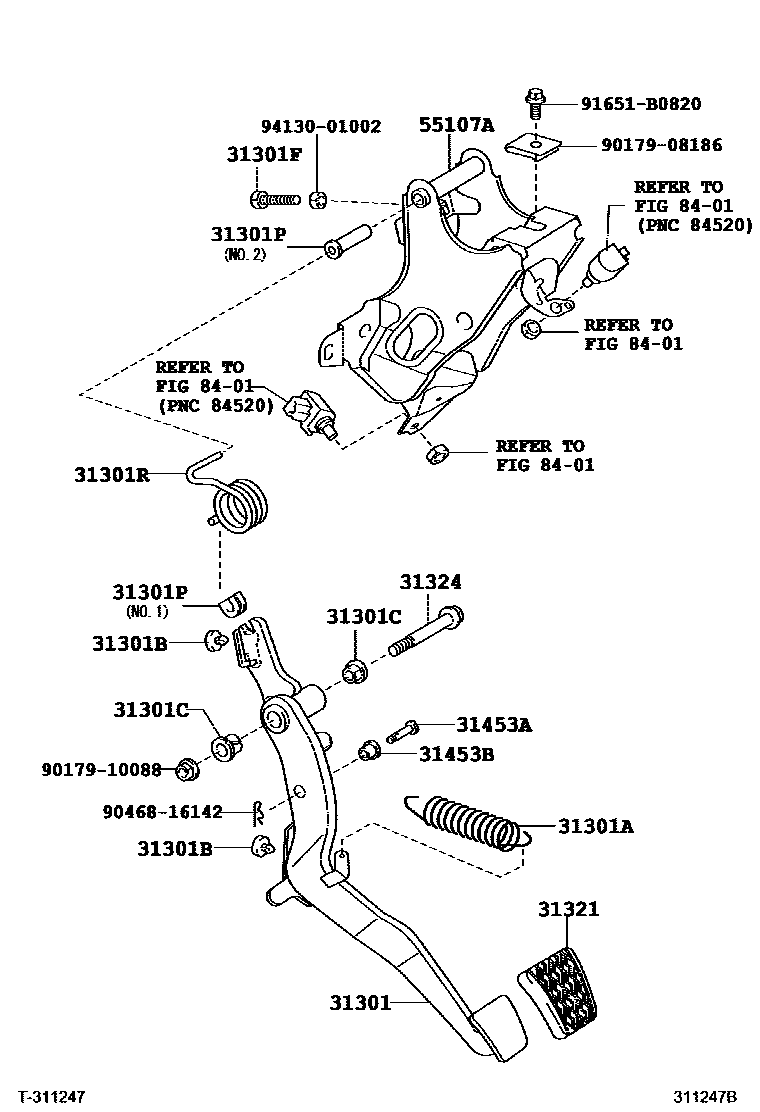

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-21050iANT10..5F¥2,500200405

31301ASPRING(FOR CLUTCH PEDAL)

main90507-16028iANT10..5F¥320200405

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iANT10..5F¥110200405

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iANT10..5F¥120200405

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iANT10..5F¥110200405

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iANT10..5F¥110200405

NO.1

main90389-05019iANT10..5F¥270200405

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iANT10..5F¥850200405

31321PAD, CLUTCH PEDAL

main31321-52010iANT10..5F¥200200405

31324SHAFT, CLUTCH PEDAL

main90109-10167iANT10..5F¥190200405-200706

main90109-10174iANT10..5F¥190200707

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iANT10..5F¥230200405

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iANT10..5F¥240200405

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-21060iANT10..5F¥3,370200405-201007

8401

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

91651B0820

main91651-B0820¥160

9413001002

main94130-01002¥90

18 parts on this diagram · 2 diagrams in section
