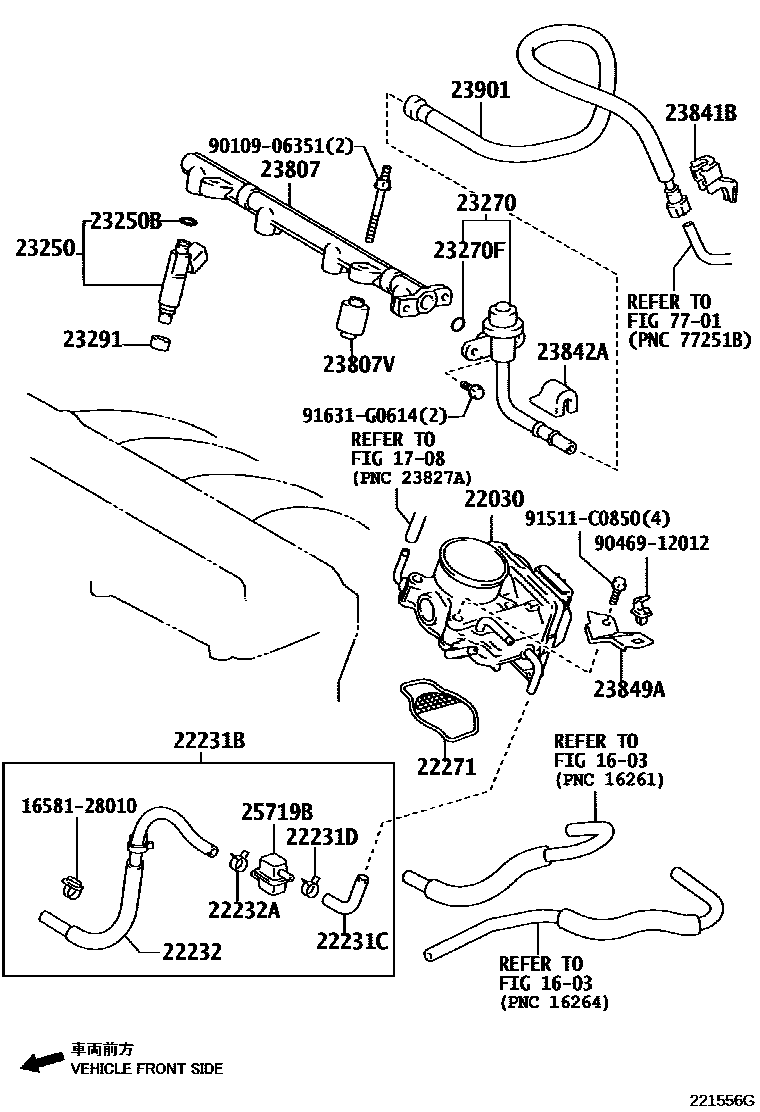

FUEL INJECTION SYSTEM
1603
1708
22231BHOSE, THROTTLE BODY
22231CHOSE, THROTTLE BODY, NO.1
22231DCLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22232HOSE, THROTTLE BODY, NO.2
22232ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23814-28060
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
25719BTANK, VACUUM SURGE
7701
1658128010CLAMP, HOSE(FOR WATER HOSE)
main16581-28010
9010906351
main90109-06351
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
27 parts on this diagram · 2 diagrams in section
