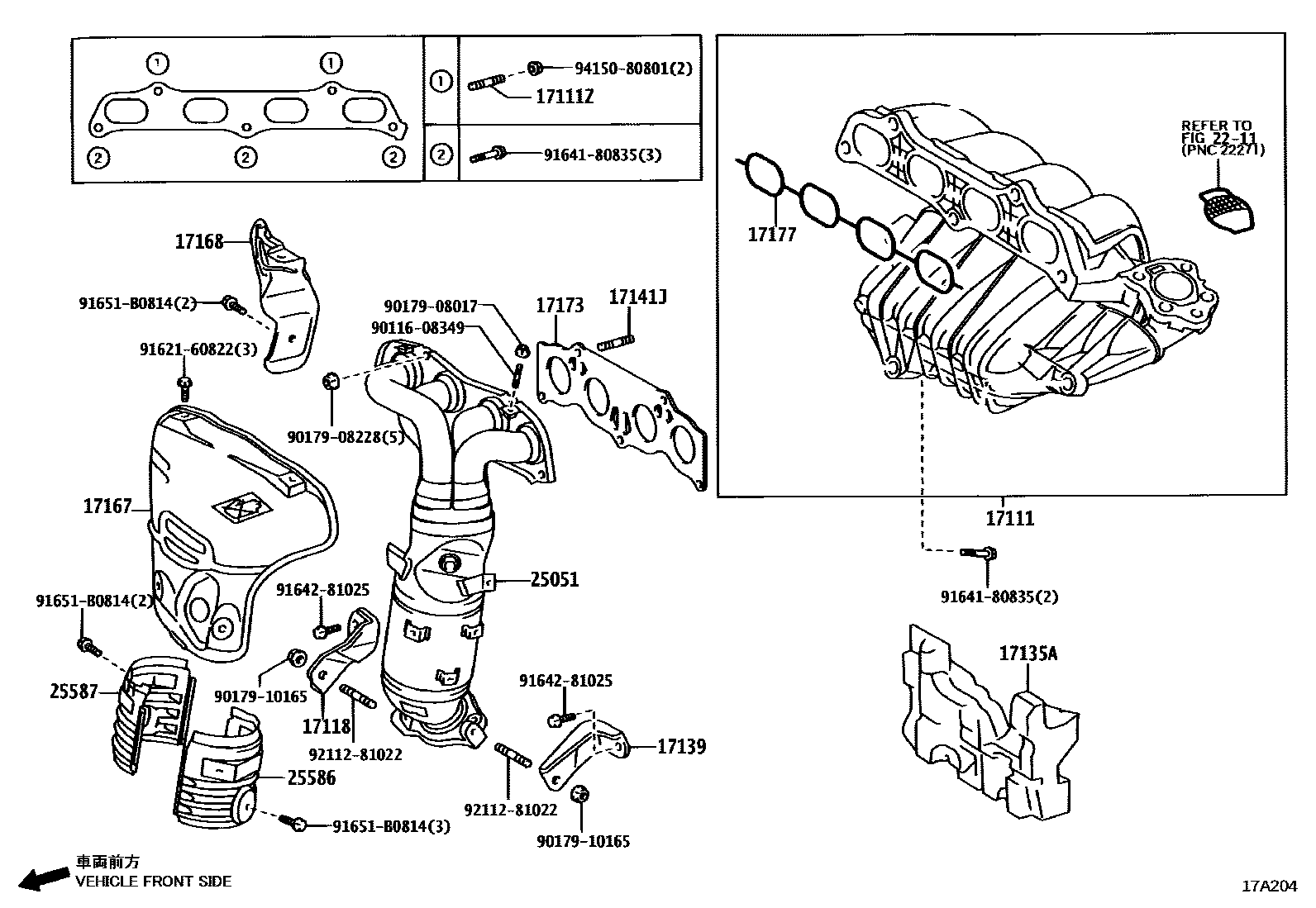

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-28031
2211
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
9011608349
main90116-08349
9017908017
main90179-08017
9017908228
main90179-08228
9017910165
main90179-10165
9162160822
main91621-60822
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
9211281022
main92112-81022
9415080801
main94150-80801
24 parts on this diagram · 2 diagrams in section
