BATTERY & BATTERY CABLE

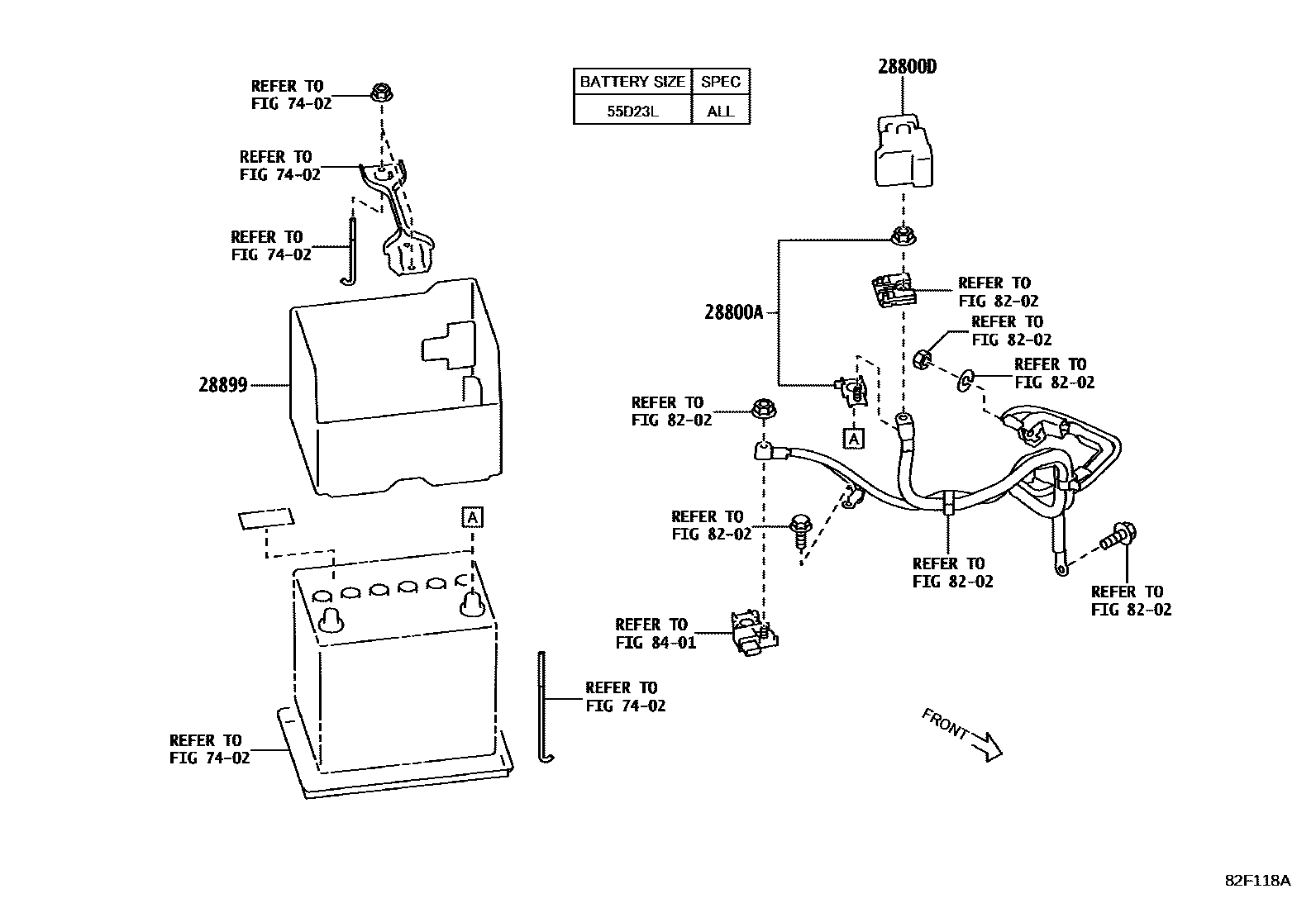

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

mainSU00302356i202110-202312

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

mainSU00309320i202110-202312

28899INSULATOR, BATTERY

mainSU00302413i202110-202312

7402

8202

8401

6 parts on this diagram · 1 diagram in section
