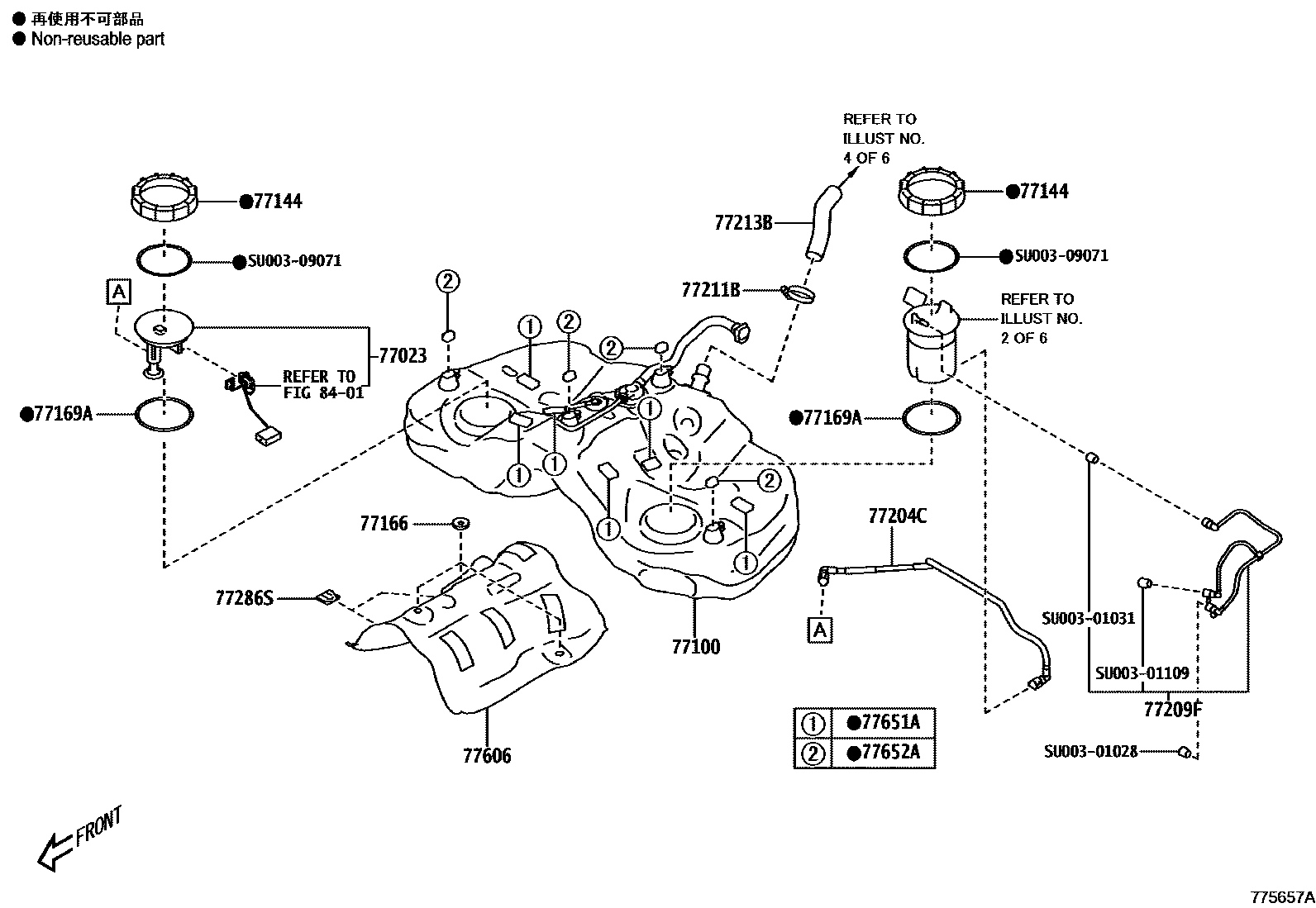

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL SUCTION TUBE(FUEL PUMP) 0003 1FUEL TANK BAND & PROTECTOR 0004 1CHARCOAL CANISTER & FILLER PI0005 1FUEL(BRAKE) PIPE 0006 1FUEL LID

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00309073iZN8202110-202312

77100TANK ASSY, FUEL

mainSU00309609iZN8202110-202312

77144RETAINER, FUEL PUMP GAUGE

mainSU00309068iZN8202110-202312

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042iZN8202110-202312

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00309610iZN8202110-202312

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00309537iZN8202110-202312

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00309534iZN8202110-202312

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00308444iZN8202110-202312

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00310573iZN8202110-202312

77286SCUSHION, FUEL TANK PROTECTOR

mainSU00310559iZN8202110-202312

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00309532iZN8202110-202312

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047iZN8202110-202312

77652ACUSHION, FUEL TANK, NO.2

mainSU00309529iZN8202110-202312

8401

SU00301028

mainSU003-01028

SU00301031

mainSU003-01031

SU00301109

mainSU003-01109

SU00309071

mainSU003-09071

18 parts on this diagram · 6 diagrams in section
