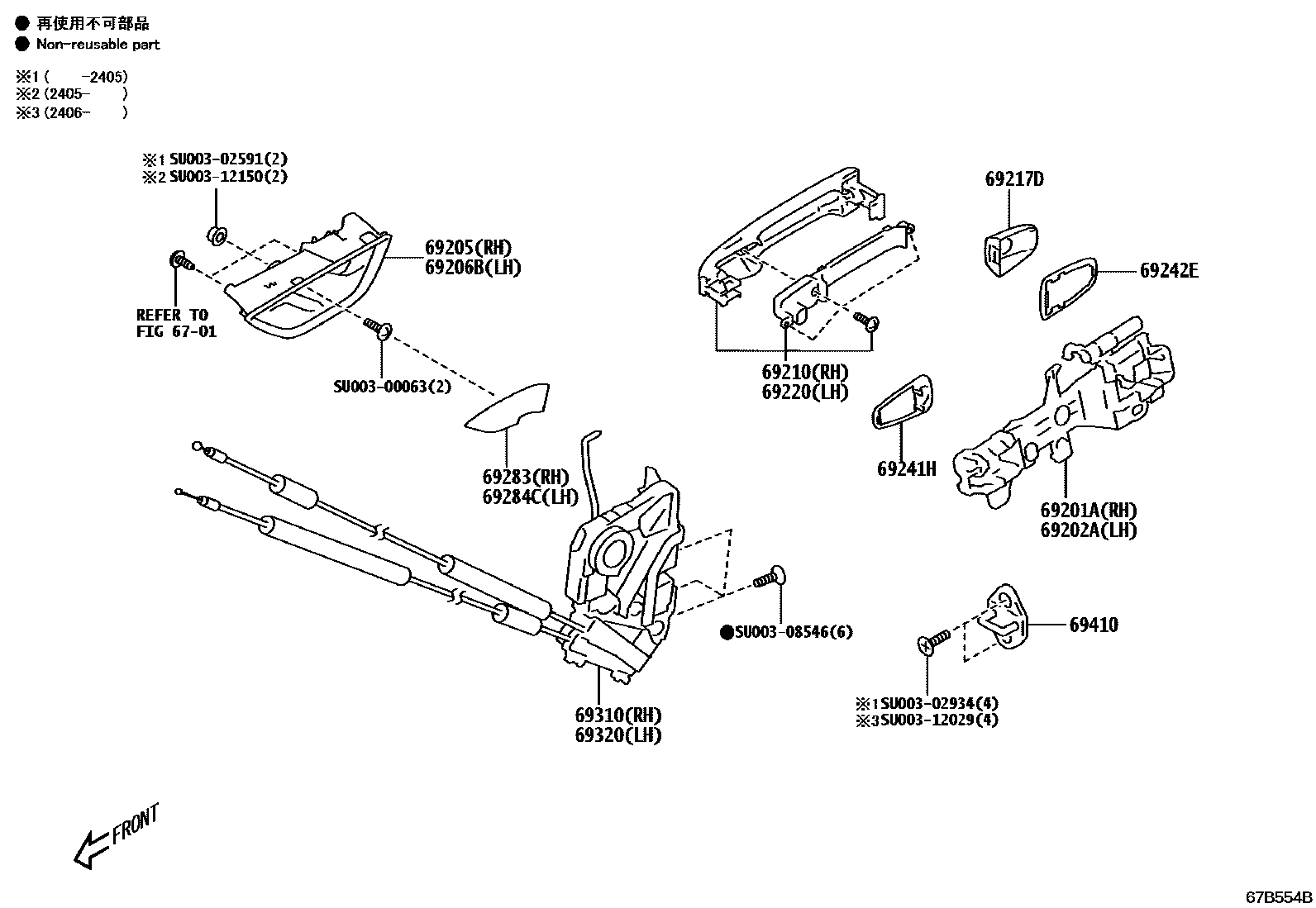

FRONT DOOR LOCK & HANDLE

6701

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

mainSU00301584iZN8..C202110-202312

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

mainSU00301585iZN8202110-202312

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

mainSU00308459iZN8202110-202309

BLACK

subSU003-11638

mainSU00311638iZN8..B202309-202312

BLACK

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

mainSU00308460iZN8202110-202309

BLACK

subSU003-11639

mainSU00311639iZN8..B202309-202312

BLACK

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

mainSU00308463iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

MAGNETITE GRAY M,P8Y

mainSU00308464iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

ICE SILVER METALLIC,G1U

mainSU00308465iZN8..C202110-202312

CRYSTAL BLACK SILICA,D4S

mainSU00308466iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

CRYSTAL WHITE PEARL,K1X

mainSU00308665iZN8202110-202312

BRIGHT BLUE,DAR

mainSU00308666iZN8..(BASE,HIGH)..C202110-202312

SAPPHIRE BLUE PEARL,WCH

mainSU00308667iZN8..(BASE,HIGH)..D202110-202312

IGNITION RED,DCK

mainSU00310958iZN8..ORA202206-202312

SOLAR ORANGE PEARL

mainSU00311410iZN8..(BASE,HIGH)..C202312

OASIS BLUE,XDA

mainSU00312018iZN8..D202409

MOSS GREEN,DMG

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

mainSU00301573iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

CRYSTAL BLACK SILICA,D4S,DRIVER SIDE

mainSU00301573iZN8..C202312

CRYSTAL BLACK SILICA,D4S,DRIVER SIDE

mainSU00301580iZN8..(BASE,HIGH)..D202110-202206

CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE

mainSU00301580iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE

mainSU00305300iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

ICE SILVER METALLIC,G1U,DRIVER SIDE

mainSU00305300iZN8..(BASE,HIGH)..C202312

ICE SILVER METALLIC,G1U,DRIVER SIDE

mainSU00305301iZN8..(BASE,HIGH)..D202110-202312

CRYSTAL WHITE PEARL,K1X,DRIVER SIDE

mainSU00305301iZN8..(BASE,HIGH)..C202312

CRYSTAL WHITE PEARL,K1X,DRIVER SIDE

mainSU00305302iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

ICE SILVER METALLIC,G1U,PASSENGER SIDE

mainSU00305302iZN8..(BASE,HIGH)..D202110-202206

ICE SILVER METALLIC,G1U,PASSENGER SIDE

mainSU00305303iZN8..(BASE,HIGH)..D202110-202206

CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE

mainSU00305303iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE

mainSU00307858iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

BRIGHT BLUE,DAR,DRIVER SIDE

mainSU00307859iZN8202110-202206

BRIGHT BLUE,DAR,PASSENGER SIDE

mainSU00307859iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

BRIGHT BLUE,DAR,PASSENGER SIDE

mainSU00308133iZN8..(BASE,HIGH)..C202312

MAGNETITE GRAY M,P8Y,DRIVER SIDE

mainSU00308133iZN8202110-202312

MAGNETITE GRAY M,P8Y,DRIVER SIDE

mainSU00308135iZN8202110-202206

MAGNETITE GRAY M,P8Y,PASSENGER SIDE

mainSU00308135iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

MAGNETITE GRAY M,P8Y,PASSENGER SIDE

mainSU00308662iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE

mainSU00308662iZN8..(BASE,HIGH)..C202312

SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE

mainSU00308663iZN8202110-202312

IGNITION RED,DCK,DRIVER SIDE

mainSU00308663iZN8..(BASE,HIGH)..C202312

IGNITION RED,DCK,DRIVER SIDE

mainSU00308664iZN8..(BASE,HIGH)..D202110-202206

SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE

mainSU00308664iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE

mainSU00308909iZN8202110-202206

IGNITION RED,DCK,PASSENGER SIDE

mainSU00308909iZN8..(BASE,BASE2,HIGH,HIGH2)..B202206-202312

IGNITION RED,DCK,PASSENGER SIDE

mainSU00310956iZN8..ORA202206-202312

SOLAR ORANGE PEARL,DRIVER SIDE

mainSU00310957iZN8..ORA202206-202312

SOLAR ORANGE PEARL,PASSENGER SIDE

mainSU00311408iZN8..(BASE,HIGH)..C202312

OASIS BLUE,XDA,DRIVER SIDE

mainSU00311409iZN8..(BASE,HIGH)..C202312

OASIS BLUE,XDA,PASSENGER SIDE

mainSU00312016iZN8..D202409

MOSS GREEN,DMG,DRIVER SIDE

mainSU00312017iZN8..D202409

MOSS GREEN,DMG,PASSENGER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

mainSU00308463iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

MAGNETITE GRAY M,P8Y

mainSU00308464iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

ICE SILVER METALLIC,G1U

mainSU00308465iZN8..C202110-202312

CRYSTAL BLACK SILICA,D4S

mainSU00308466iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

CRYSTAL WHITE PEARL,K1X

mainSU00308665iZN8202110-202312

BRIGHT BLUE,DAR

mainSU00308666iZN8202110-202312

SAPPHIRE BLUE PEARL,WCH

mainSU00308667iZN8..(BASE,BASE2,HIGH,HIGH2)..B202110-202312

IGNITION RED,DCK

mainSU00310958iZN8..ORA202206-202312

SOLAR ORANGE PEARL

mainSU00311410iZN8..(BASE,HIGH)..C202312

OASIS BLUE,XDA

mainSU00312018iZN8..D202409

MOSS GREEN,DMG

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

mainSU00301614iZN8..C202110-202312

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

mainSU00301615iZN8..D202110-202312

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

mainSU00308461iZN8202110-202303

BLACK

subSU003-11259

mainSU00311259iZN8..B202303-202312

BLACK

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

mainSU00308462iZN8202110-202303

BLACK

subSU003-11260

mainSU00311260iZN8..B202303-202312

BLACK

69310LOCK ASSY, FRONT DOOR, RH

mainSU00309724iZN8202110-202206

subSU003-11128

mainSU00311128iZN8..B202206-202305

mainSU00311535iZN8..B202305-202312

69320LOCK ASSY, FRONT DOOR, LH

mainSU00309725iZN8202110-202206

subSU003-11129

mainSU00311129iZN8..B202206-202305

mainSU00311536iZN8..B202305-202312

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

mainSU00304119iZN8202110-202312

SU00300063

mainSU003-00063

SU00302591

mainSU003-02591

SU00302934

mainSU003-02934

SU00308546

mainSU003-08546

SU00312029

mainSU003-12029

SU00312150

mainSU003-12150

21 parts on this diagram · 1 diagram in section
