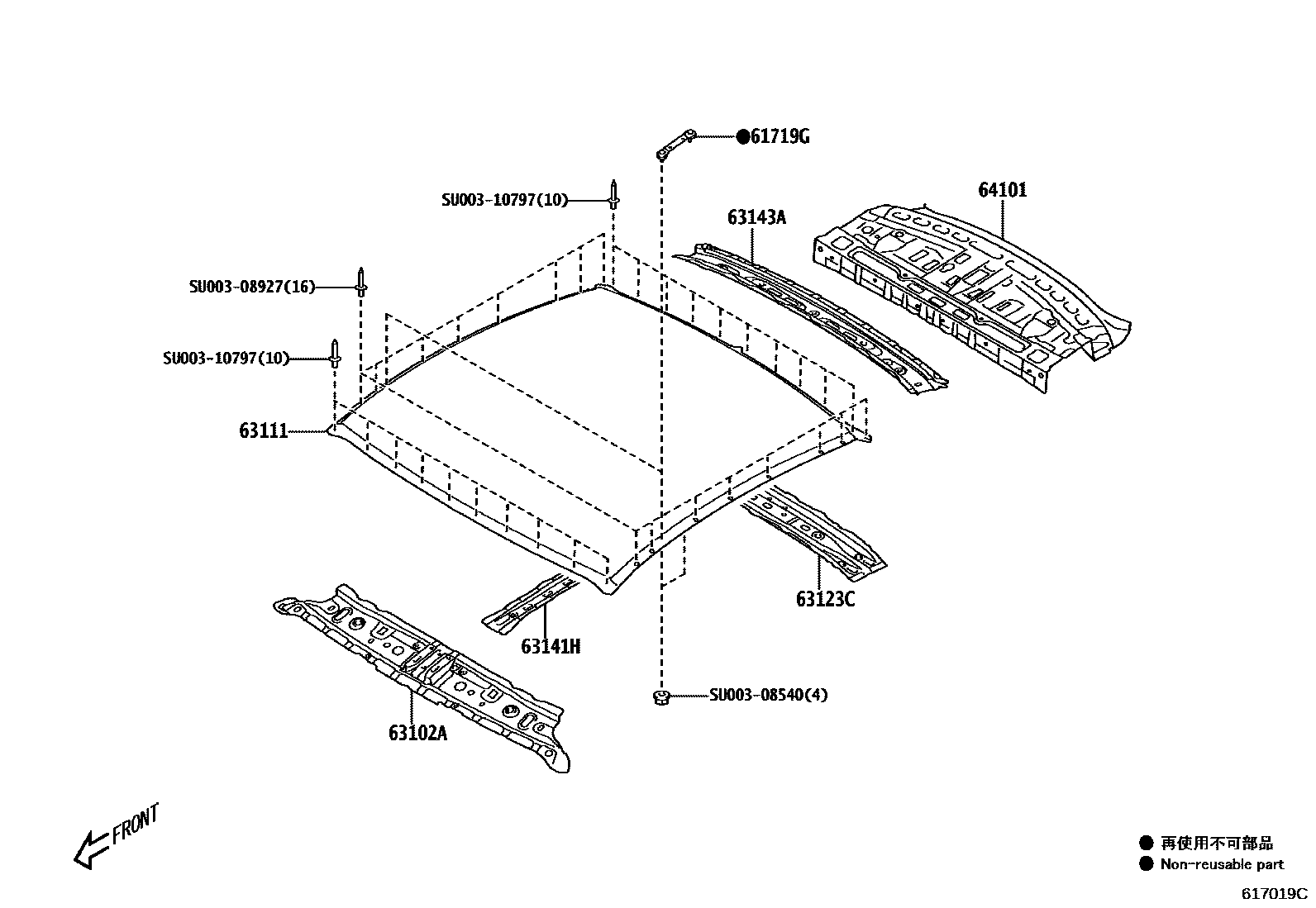

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL & UPPER BACK PANEL0002 1BACK WINDOW GLASS

61719GBRACKET, ROOF SIDE, INNER

mainSU00308899iZN8202110-202312

63102APANEL SUB-ASSY, WINDSHIELD HEADER

mainSU00308900iZN8202110-202312

63111PANEL, ROOF

mainSU00308902iZN8202110-202409

mainSU00312347iZN8..C,D202409

63123CREINFORCEMENT, ROOF PANEL

mainSU00308903iZN8202110-202312

63141HREINFORCEMENT, ROOF PANEL, CENTER

mainSU00308904iZN8202110-202312

63143AREINFORCEMENT, ROOF PANEL

mainSU00308901iZN8202110-202312

64101PANEL SUB-ASSY, UPPER BACK

mainSU00309167iZN8202110-202312

SU00308540

mainSU003-08540

SU00308927

mainSU003-08927

SU00310797

mainSU003-10797

10 parts on this diagram · 2 diagrams in section
