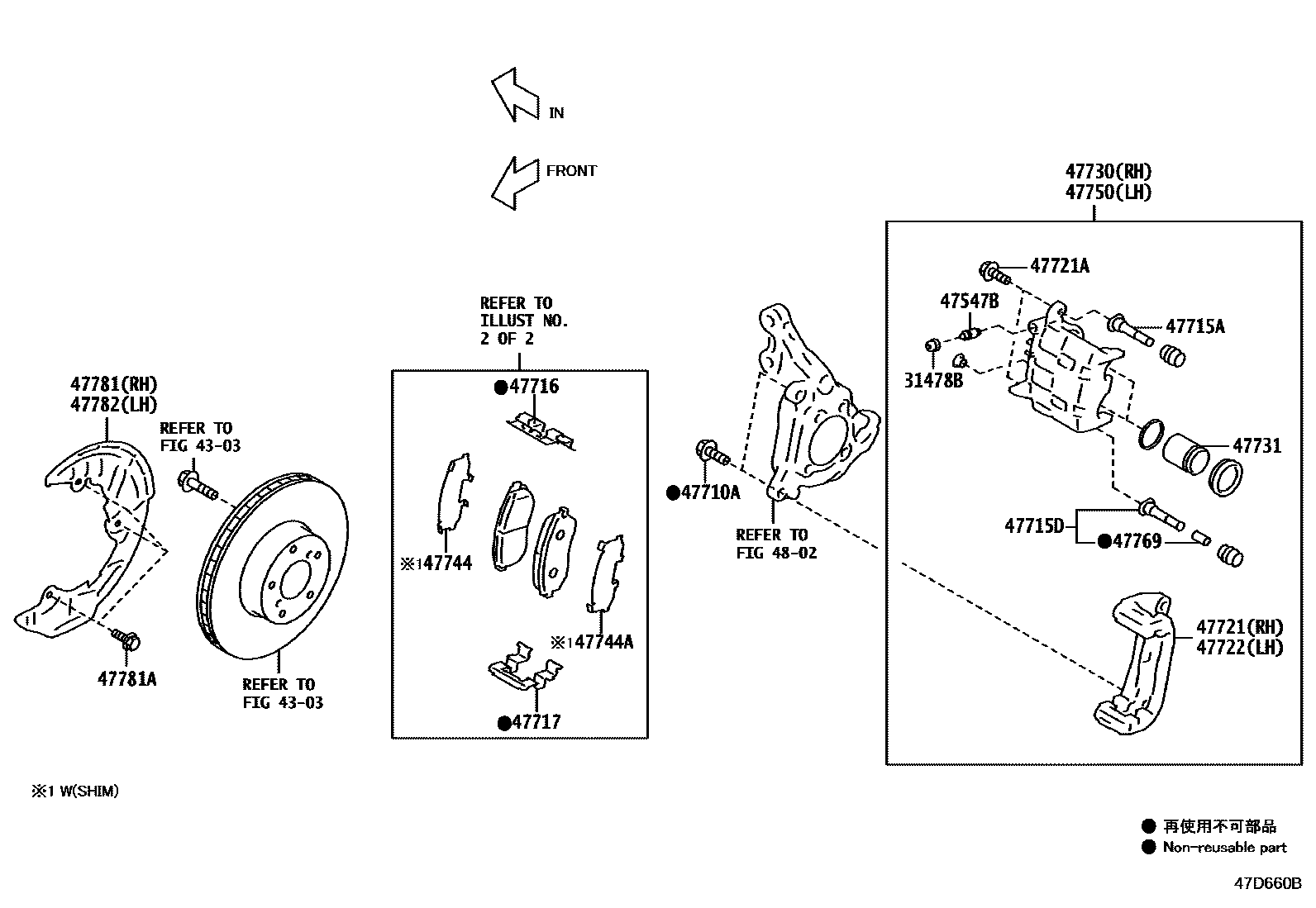

FRONT DISC BRAKE CALIPER & DUST COVER
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
2POD TYPE
4POD TYPE
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
M12X54,OPTION CODE=XH
M12X54
M12X54,OPTION CODE=FH
M12X54,OPTION CODE=CH
M12X54,OPTION CODE=AH
M12X54,OPTION CODE=BH
M12-19
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
2POD TYPE
4POD TYPE
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
OPTION CODE=AH
OPTION CODE=BH
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
subSU003-12031
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
47731PISTON, FRONT DISC BRAKE
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
subSU003-12032
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
4802
21 parts on this diagram · 4 diagrams in section
