BRAKE BOOSTER & VACUUM TUBE

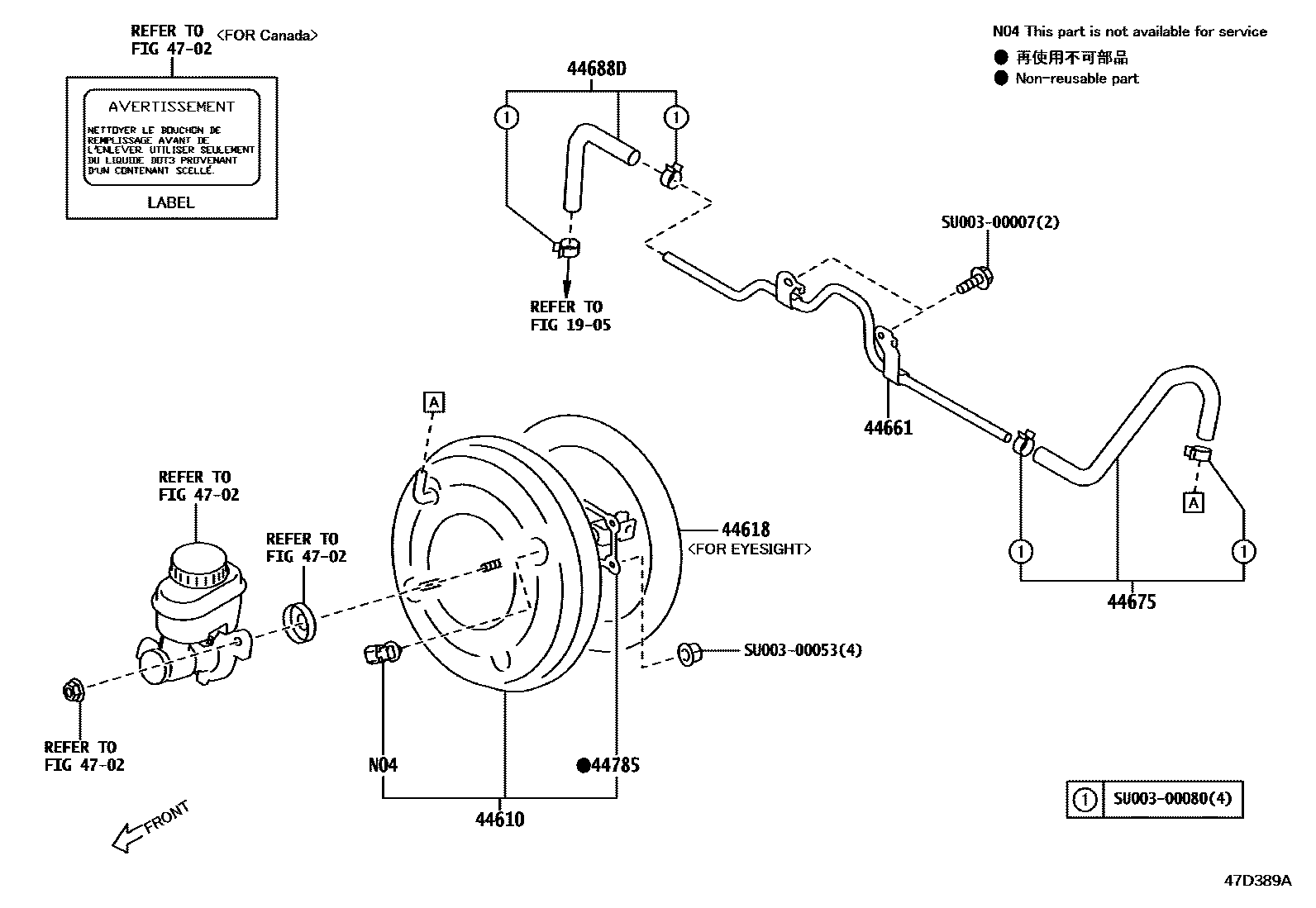

Parts diagram

1905

44610BOOSTER ASSY, BRAKE

mainSU00309709i202110-202401

mainSU00311614i202401

44618SEAL, BOOSTER BODY

mainSU00308834i202110-202312

44661TUBE, BOOSTER VACUUM

mainSU00310347i202110-202312

44675HOSE, BOOSTER VACUUM

mainSU00309858i202110-202312

44688DHOSE, BOOSTER VACUUM

mainSU00309859i202110-202312

44785GASKET, BRAKE BOOSTER

mainSU00304545i202110-202312

4702

SU00300007

mainSU003-00007¥20

SU00300053

mainSU003-00053¥30

SU00300080

mainSU003-00080¥90

11 parts on this diagram · 1 diagram in section
