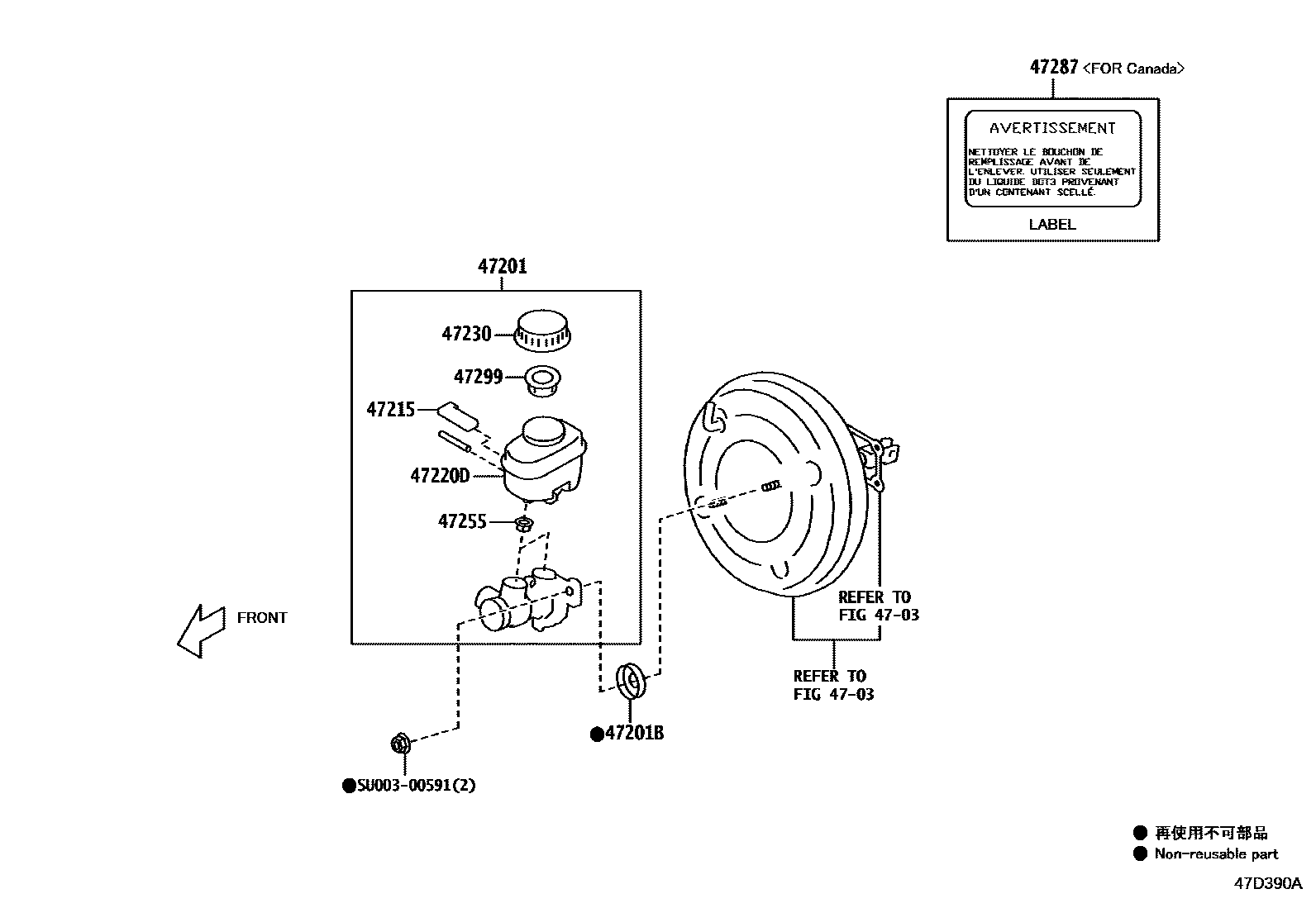

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00309708iZN8202110-202312

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iZN8202110-202312

subSU003-12052

47215INDICATOR, BRAKE FLUID

mainSU00304246iZN8202110-202312

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00310515iZN8202110-202312

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00310494iZN8202110-202312

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245iZN8202110-202312

47287LABEL, BRAKE FLUID INFORMATION

mainSU00300521iZN8..6F;ZN8..BASE2,HIGH2202110-202312

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iZN8202110-202312

SU00300591

mainSU003-00591

10 parts on this diagram · 1 diagram in section
