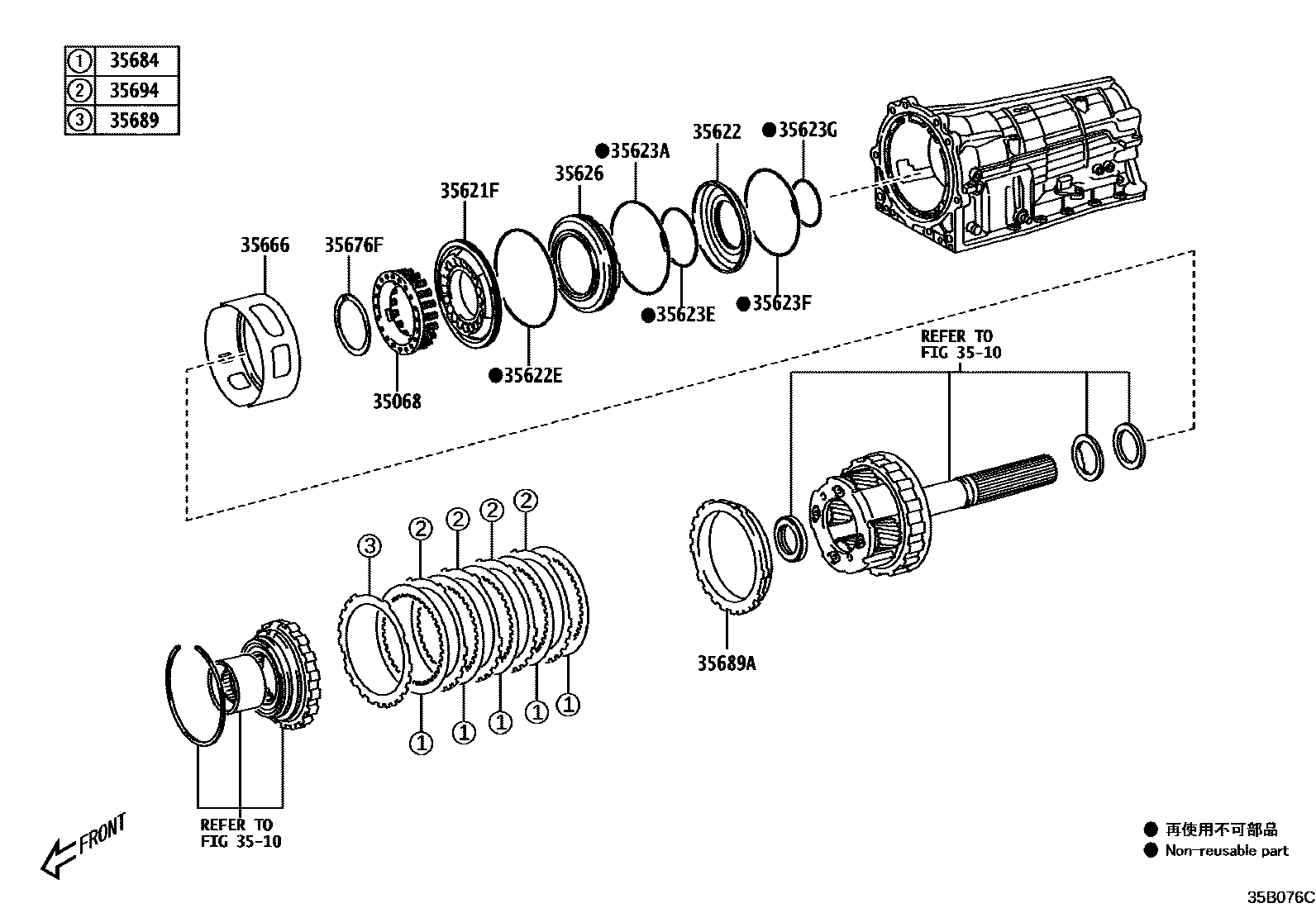

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
3510
35621FPISTON, BRAKE, NO.1
35622PISTON, BRAKE, NO.2
35622ERING, O (FOR BRAKE PISTON NO.2)
35623ARING, O (FOR BRAKE PISTON NO.3 )
35623ERING, O, NO.1 (FOR BRAKE PISTON)
35623FRING, O, NO.2 (FOR BRAKE PISTON)
35623GRING, O, NO.3 (FOR BRAKE PISTON)
35626SLEEVE, BRAKE REACTION
35666TUBE, BRAKE APPLY
35676FRING, SNAP (FOR TRANSMISSION CASE)
35684DISC, BRAKE, NO.4
35689FLANGE, BRAKE, NO.4
T=1.8 MARK 0
T=1.97 MARK 1
T=2.11 MARK 3
T=2.25 MARK 4
T=2.39 MARK 5
T=2.53 MARK 7
T=2.67 MARK 8
T=2.81 MARK 10
T=2.95 MARK 11
T=3.09 MARK 12
35689AFLANGE, BRAKE, NO.4
35694PLATE, BRAKE, NO.4
16 parts on this diagram · 1 diagram in section
