CLUTCH MASTER CYLINDER

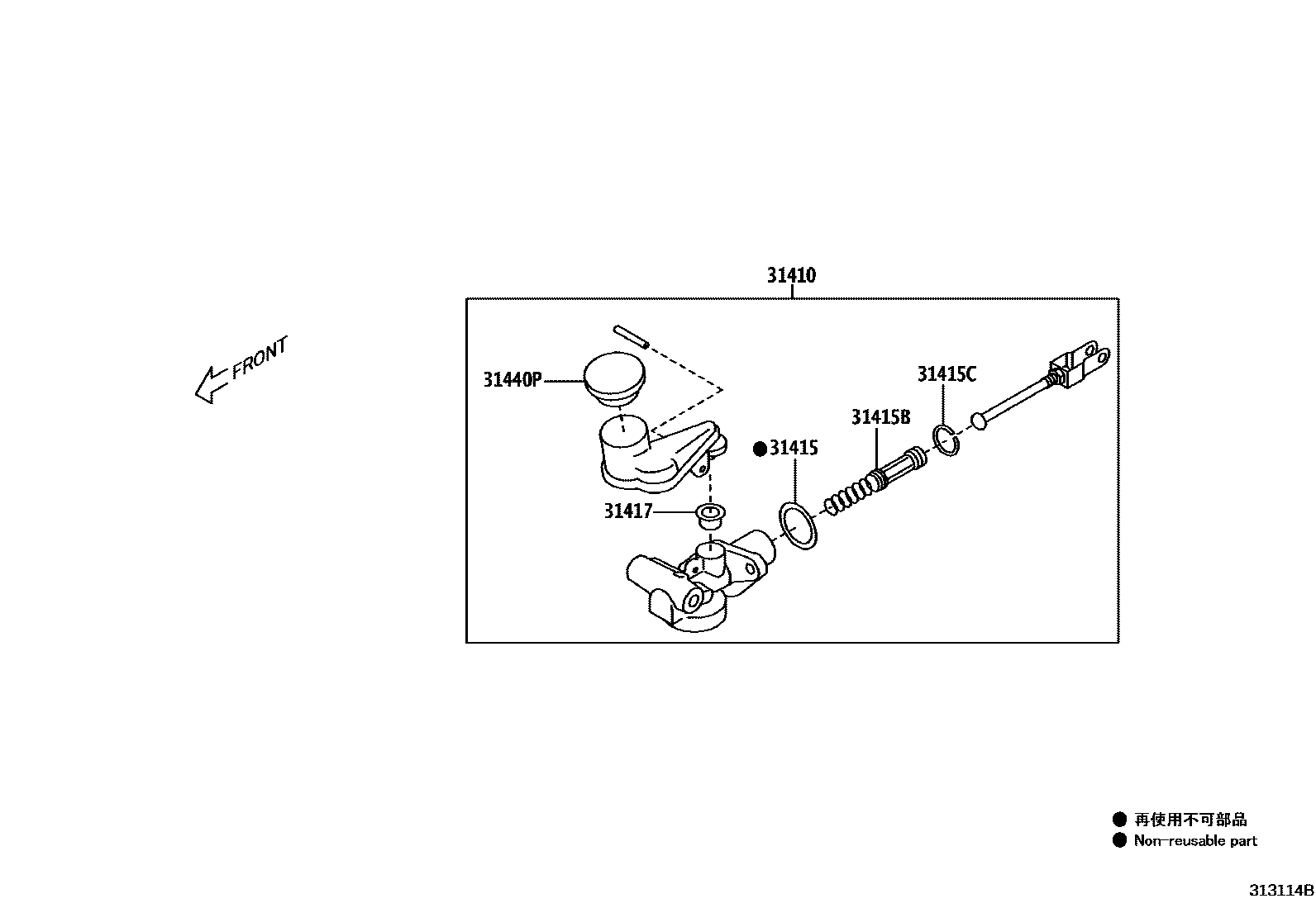

Parts diagram

31410CYLINDER ASSY, CLUTCH MASTER

mainSU00309880i202110-202312

31415GASKET, CLUTCH MASTER CYLINDER

mainSU00300994i202110-202312

31415BPISTON ASSY

mainSU00300992i202110-202312

31415CSTOP RING

mainSU00300126i202110-202312

31417GROMMET, CLUTCH RESERVOIR

mainSU00300592i202110-202312

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

mainSU00310676i202110-202312

6 parts on this diagram · 1 diagram in section
