HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL(AUTO) 0002 1HEATER CONTROL(MANUAL) 0003 1AIR DUCT(UPPER) 0004 1AIR DUCT(LOWER) 0005 1SENSOR

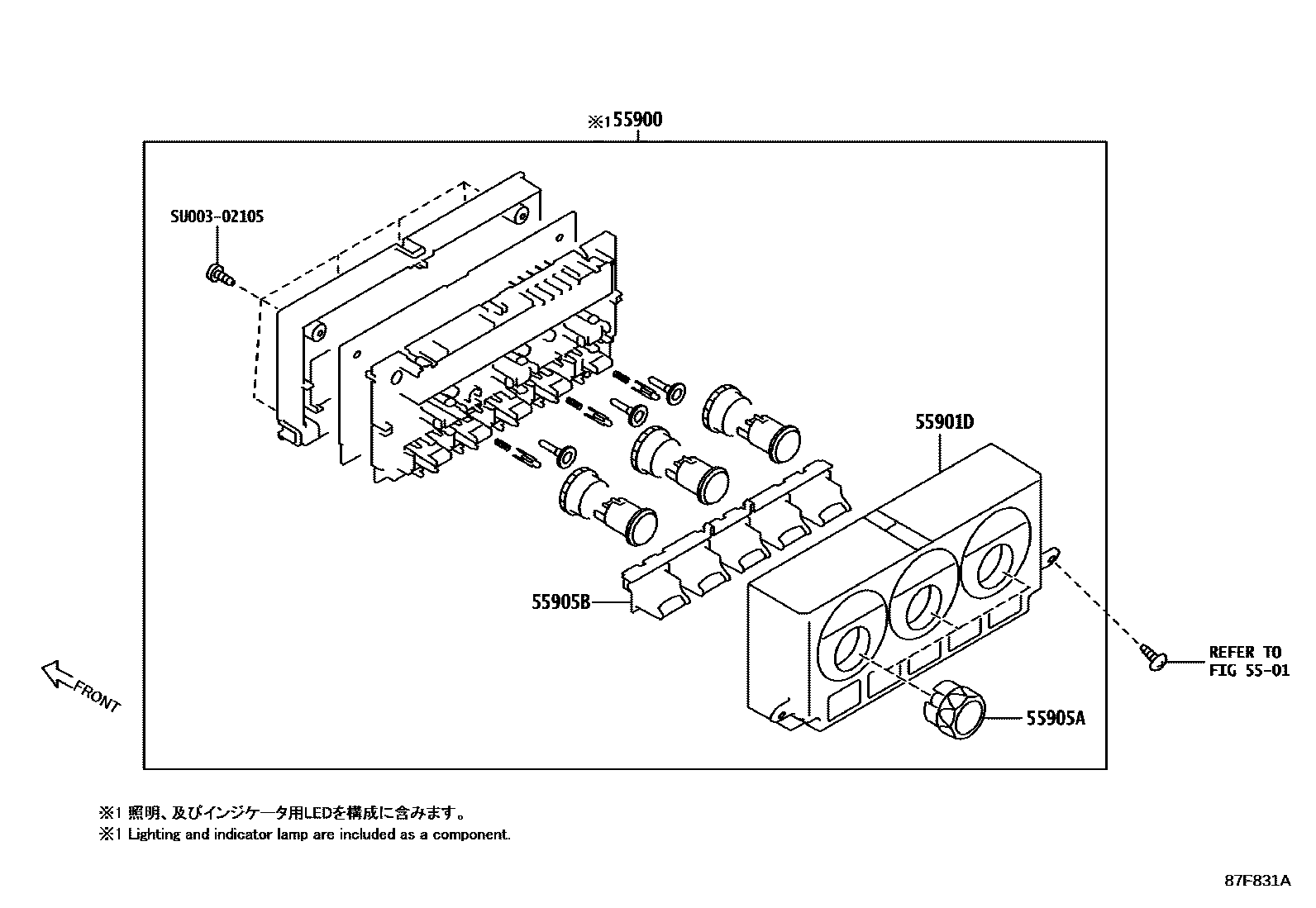

5501

55900CONTROL ASSY, AIR CONDITIONER

mainSU00307224iZN6..HI,SPE201607-201907

mainSU00308109iZN6..HI1,HI2,SPE1,SPE2201908-202012

55901BASE SUB-ASSY, HEATER CONTROL

mainSU00302086iZN6..STD201607-202012

55901DCONTROL SUB-ASSY, HEATER, NO.1

mainSU00302096iZN6..HI,SPE201607-202012

55905AKNOB, HEATER CONTROL

mainSU00305870iZN6..HI,SPE201607-202012

55905BKNOB, HEATER CONTROL, NO.2

mainSU00305940iZN6..HI,SPE201607-202012

SU00302105

mainSU003-02105

7 parts on this diagram · 5 diagrams in section
