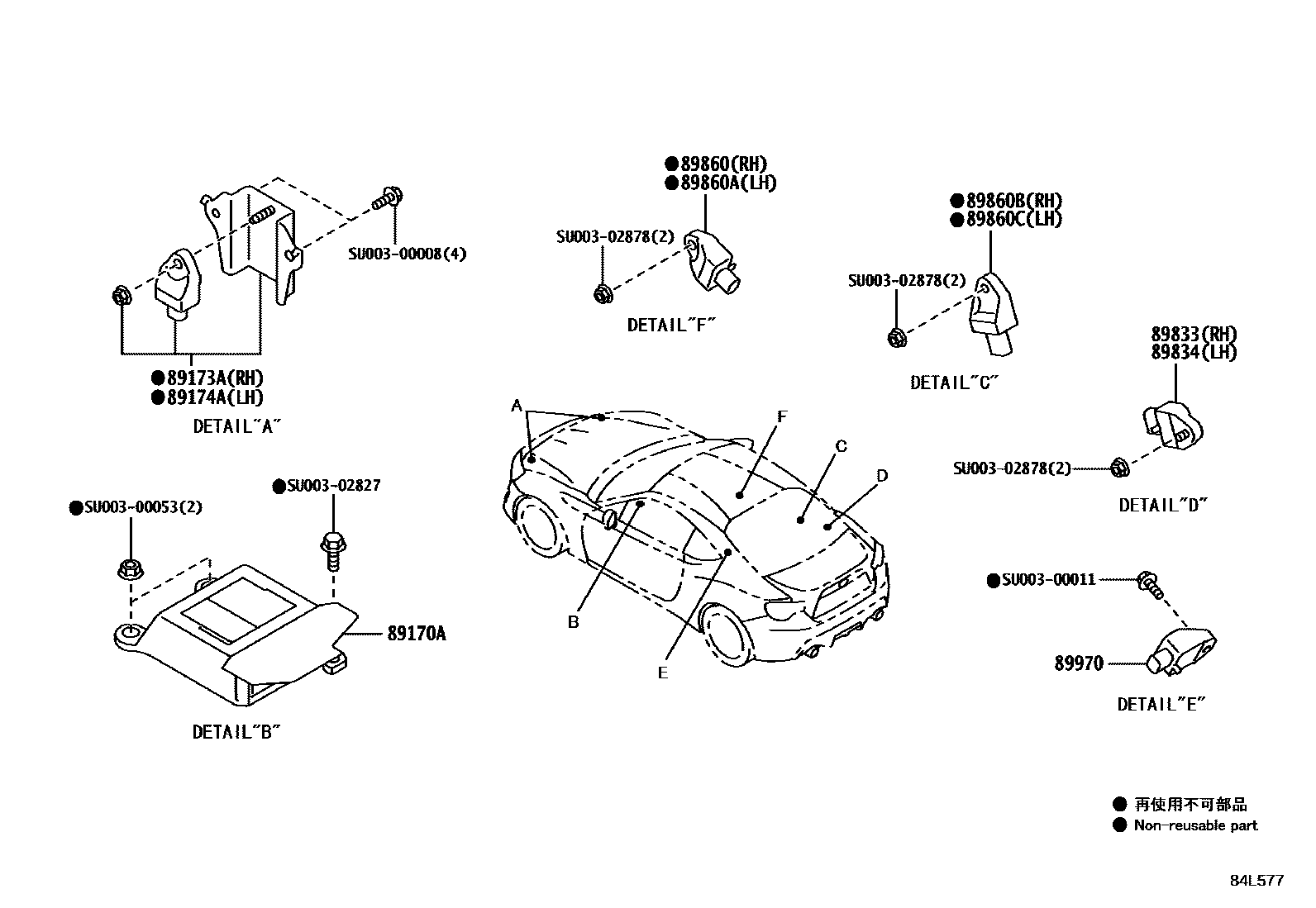

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

mainSU00307070iZN6..HI1,SPE1201711-201806

mainSU00307071iZN6..HI2,SPE2,STD201908-202012

89173ASENSOR, AIRBAG, FRONT RH

mainSU00307072iZN6201807-201907

89174ASENSOR, AIRBAG, FRONT LH

mainSU00307072iZN6201607-201711

89833SENSOR, AIRBAG, REAR RH

mainSU00307073iZN6201607-201711

89834SENSOR, AIRBAG, REAR LH

mainSU00307073iZN6201807-201907

89860SENSOR ASSY, SIDE AIRBAG, RH

mainSU00307074iZN6201607-201711

89860ASENSOR ASSY, SIDE AIRBAG, LH

mainSU00307074iZN6201607-201711

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

mainSU00306373iZN6201607-201711

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

mainSU00306373iZN6201607-201711

89970SENSOR ASSY, AIRBAG, NO.2

mainSU00303423iZN6201607-201711

SU00300008

mainSU003-00008

SU00300011

mainSU003-00011

SU00300053

mainSU003-00053

SU00302827

mainSU003-02827

SU00302878

mainSU003-02878

15 parts on this diagram · 1 diagram in section
