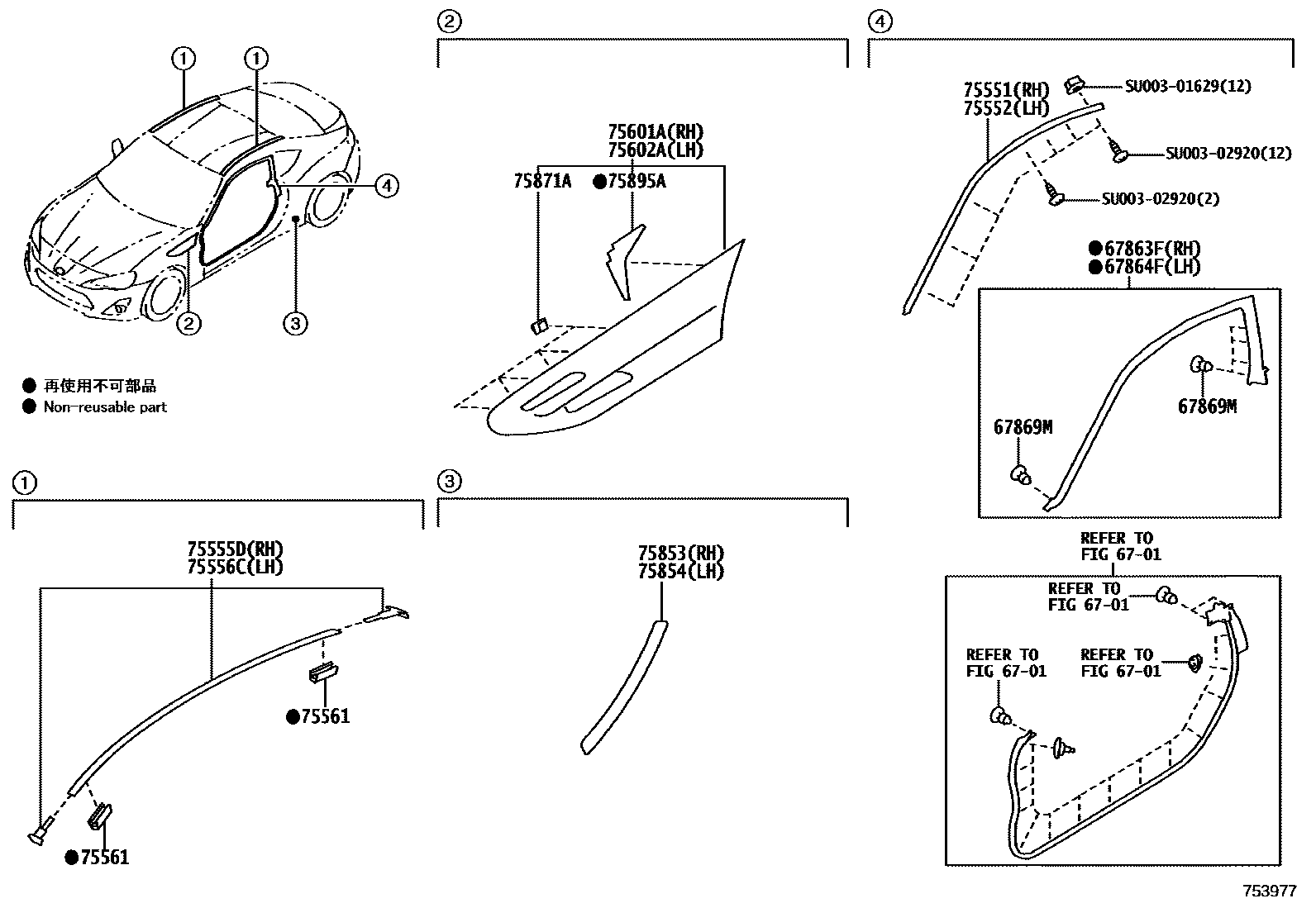

SIDE MOULDING
6701
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
67869MCLIP, DOOR WEATHERSTRIP
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB
MATERIAL COLOR,61K,D4S,G1U,K1X,K3X,M7Y,PBA
MATERIAL COLOR,61K,D4S,DAR,G1U,K1X,K3X,M7Y
MATERIAL COLOR,D4S,DAR,G1U,K1X,K3X,M7Y,P8Y
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB
MATERIAL COLOR,61K,D4S,G1U,K1X,K3X,M7Y,PBA
MATERIAL COLOR,61K,D4S,DAR,G1U,K1X,K3X,M7Y
MATERIAL COLOR,D4S,DAR,G1U,K1X,K3X,M7Y,P8Y
75853PROTECTOR, REAR FENDER, RH
75854PROTECTOR, REAR FENDER, LH
75871ACLIP (FOR FRONT FENDER MOULDING NO.1)
75895ATAPE, MOULDING, NO.1
SU00301629
mainSU003-01629
SU00302920
mainSU003-02920
17 parts on this diagram · 1 diagram in section
