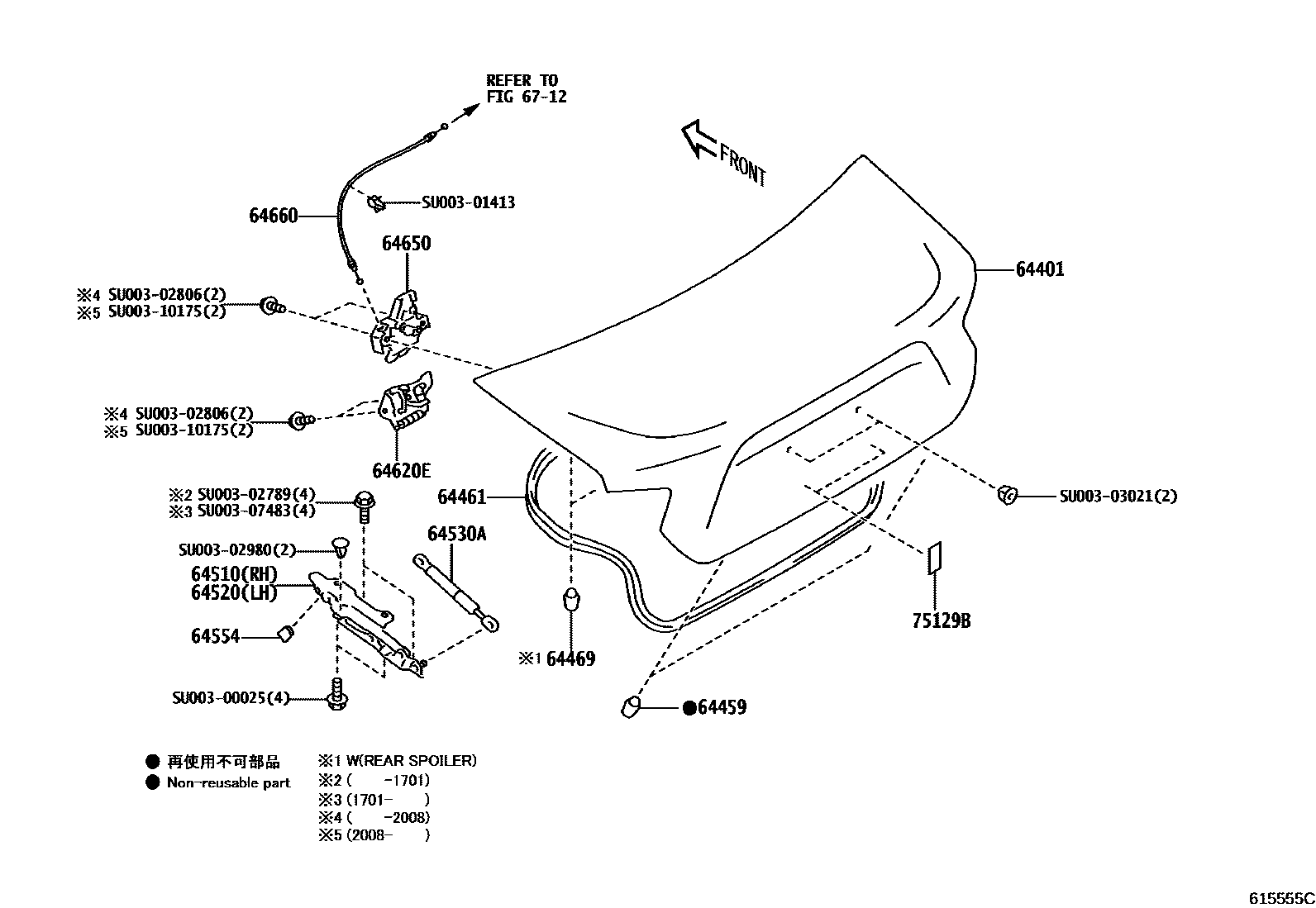

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1HOLE PLUG

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00305907iZN6..STD201607-201711

mainSU00306403iZN6..HI201607-201711

mainSU00307367iZN6..HI2,SPE2201807-201907

64459CUSHION, LUGGAGE COMPARTMENT DOOR

mainSU00305129×2iZN6201607-201711

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

mainSU00305128iZN6..F201711-201806

64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2

mainSU00301470×2iZN6..HI1,HI2,SPE1,SPE2201902-201907

mainSU00304563×2iZN6..HI1,HI2,SPE1,SPE2201711-201806

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

mainSU00307292iZN6..F201711-201806

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

mainSU00307293iZN6201607-201711

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00306404×2iZN6..HI,SPE201607-201711

mainSU00307208×2iZN6..STD,TRD201807-201907

64554STOPPER, LUGGAGE DOOR BALANCER

mainSU00301471×2iZN6201607-201711

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00301467iZN6..STD201908-202012

mainSU00301468iZN6..HI,SPE201607-201711

64650CLOSER ASSY, LUGGAGE DOOR

mainSU00305802iZN6201607-201711

64660CABLE ASSY, LUGGAGE CLOSER

mainSU00301406iZN6201607-201711

6712

75129BCUSHION, REAR LICENCE PLATE

mainSU00301630×2iZN6201607-201711

subSU003-01543

SU00300025

mainSU003-00025

SU00301413

mainSU003-01413

SU00302789

mainSU003-02789

SU00302806

mainSU003-02806

SU00302980

mainSU003-02980

SU00303021

mainSU003-03021

SU00307483

mainSU003-07483

SU00310175

mainSU003-10175

21 parts on this diagram · 2 diagrams in section
