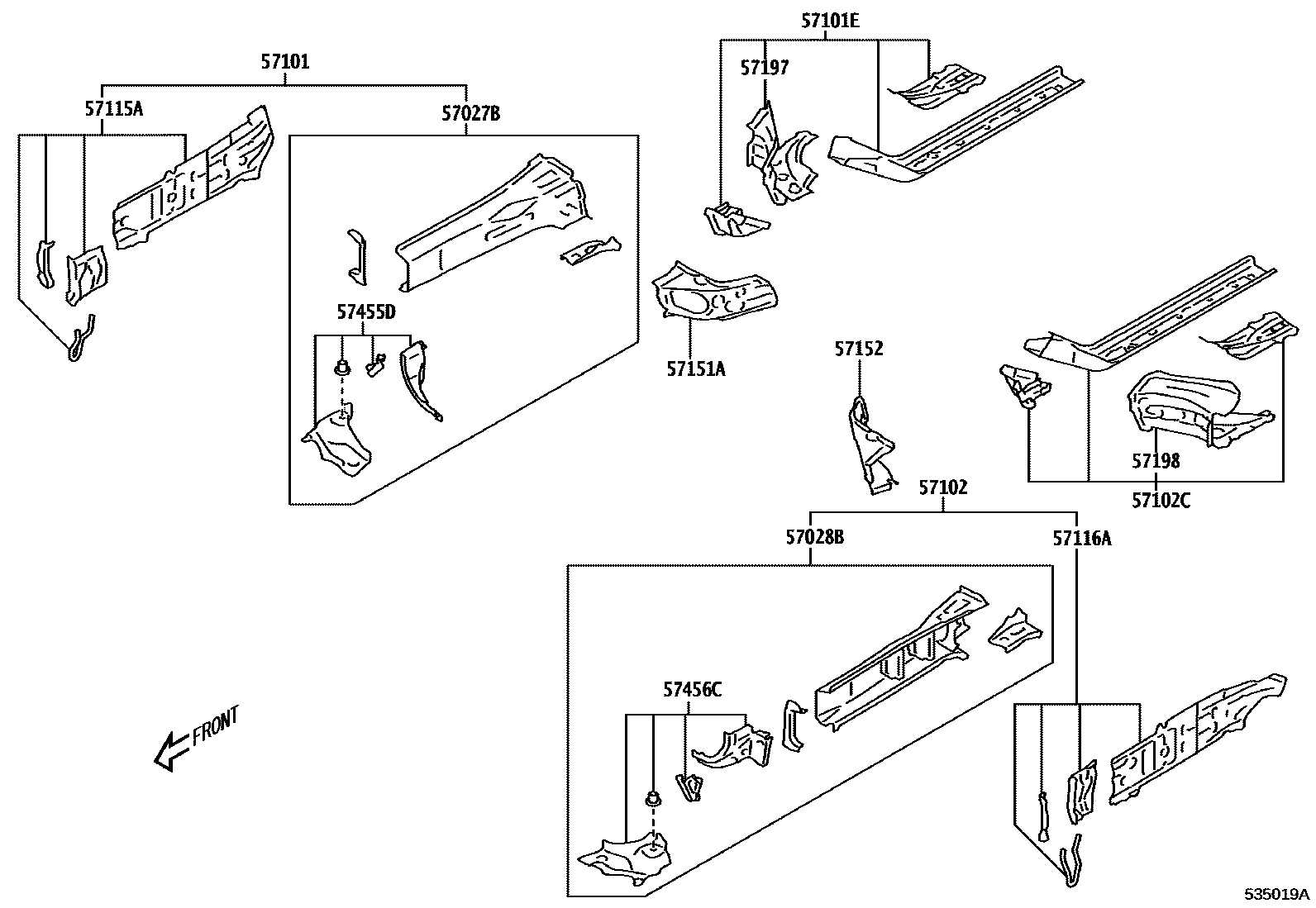

FLOOR SIDE MEMBER

0001 1FRONT 0002 1CENTER & REAR

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

mainSU00301297iZN6201607-202012

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

mainSU00301298iZN6201607-202012

57101MEMBER SUB-ASSY, FRONT SIDE, RH

mainSU00305220iZN6201607-202012

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

mainSU00305222iZN6201607-202012

57102MEMBER SUB-ASSY, FRONT SIDE, LH

mainSU00305221iZN6201607-202012

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

mainSU00305223iZN6201607-202012

57115APLATE, FRONT SIDE MEMBER, OUTER RH

mainSU00305218iZN6201607-202012

57116APLATE, FRONT SIDE MEMBER, OUTER LH

mainSU00305219iZN6201607-202012

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

mainSU00301304iZN6201607-202012

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

mainSU00301305iZN6201607-202012

57197BOX, TORQUE, FRONT RH

mainSU00305224iZN6201607-202012

57198BOX, TORQUE, FRONT LH

mainSU00305225iZN6201607-202012

57455DGUSSET, FRONT FLOOR CROSSMEMBER, RH

mainSU00301302iZN6201607-202012

57456CGUSSET, FRONT FLOOR CROSSMEMBER, LH

mainSU00301303iZN6201607-202012

14 parts on this diagram · 2 diagrams in section
