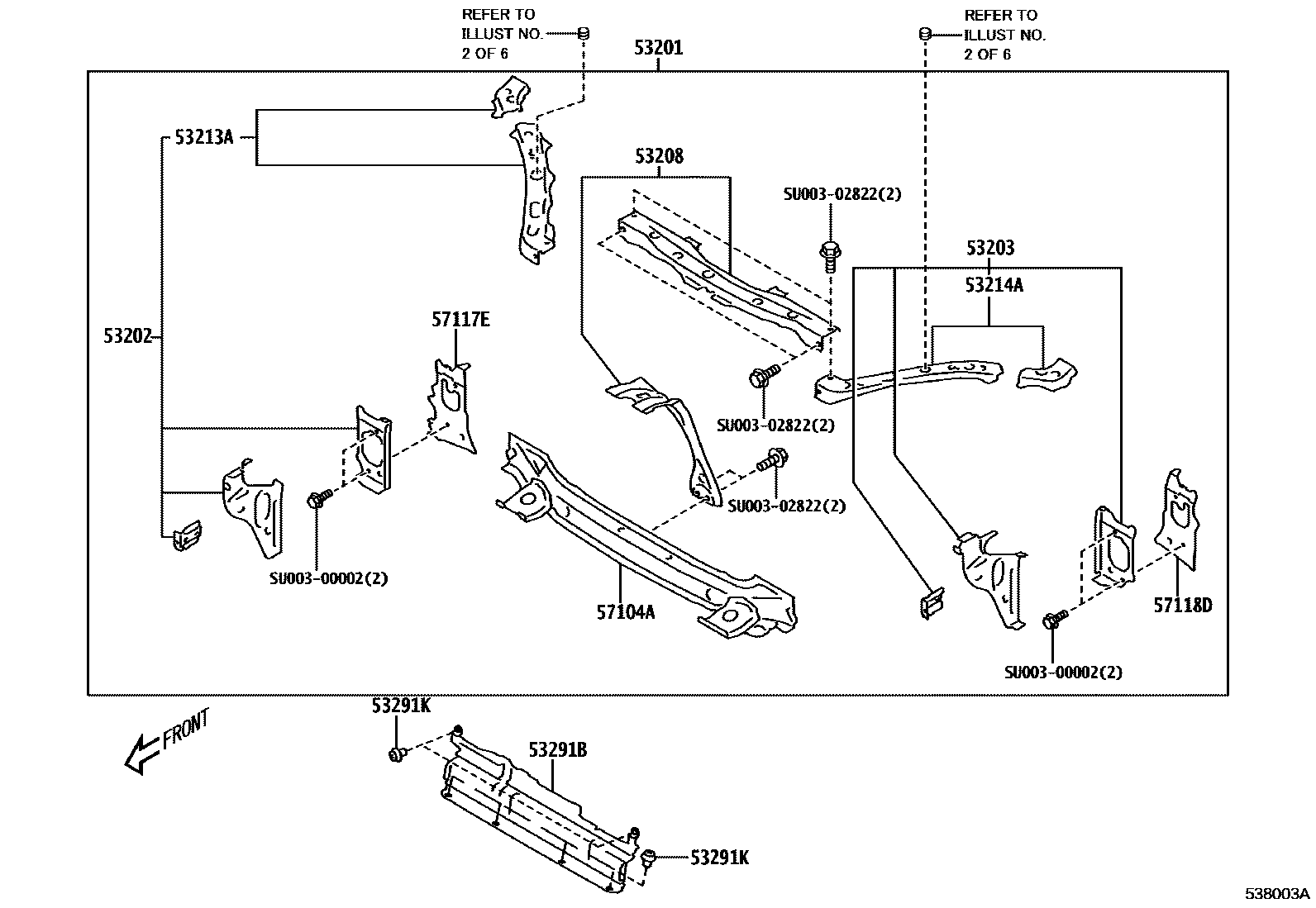

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT 0002 1FENDER APRON & HOOD BUMPER CU0003 1DASH PANEL 0004 1BRACKET,BRACE 0005 1CLUTCH MASTER CYLINDER HOLE C0006 1WELD BOLT

53201SUPPORT SUB-ASSY, RADIATOR

mainSU00301364iZN6201607-201711

subSU003-07360

mainSU00307360iZN6..F201711-202012

53202SUPPORT SUB-ASSY, RADIATOR, RH

mainSU00301368iZN6201607-202012

53203SUPPORT SUB-ASSY, RADIATOR, LH

mainSU00301369iZN6201607-202012

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

mainSU00301365iZN6201607-201711

subSU003-07361

mainSU00307361iZN6..F201711-202012

53213ASUPPORT, RADIATOR, UPPER RH

mainSU00301366iZN6201607-202012

53214ASUPPORT, RADIATOR, UPPER LH

mainSU00301367iZN6201607-202012

53291BPLATE, RADIATOR COVER

mainSU00301221iZN6201607-202012

53291KCLIP, RADIATOR COVER PLATE

mainSU00302984iZN6201607-202012

57104AMEMBER SUB-ASSY, FRONT CROSS

mainSU00301372iZN6201607-202012

57117ERETAINER, FRONT BUMPER ARM, RH

mainSU00301370iZN6201607-202012

57118DRETAINER, FRONT BUMPER ARM, LH

mainSU00301371iZN6201607-202012

SU00300002

mainSU003-00002

SU00302822

mainSU003-02822

13 parts on this diagram · 6 diagrams in section
