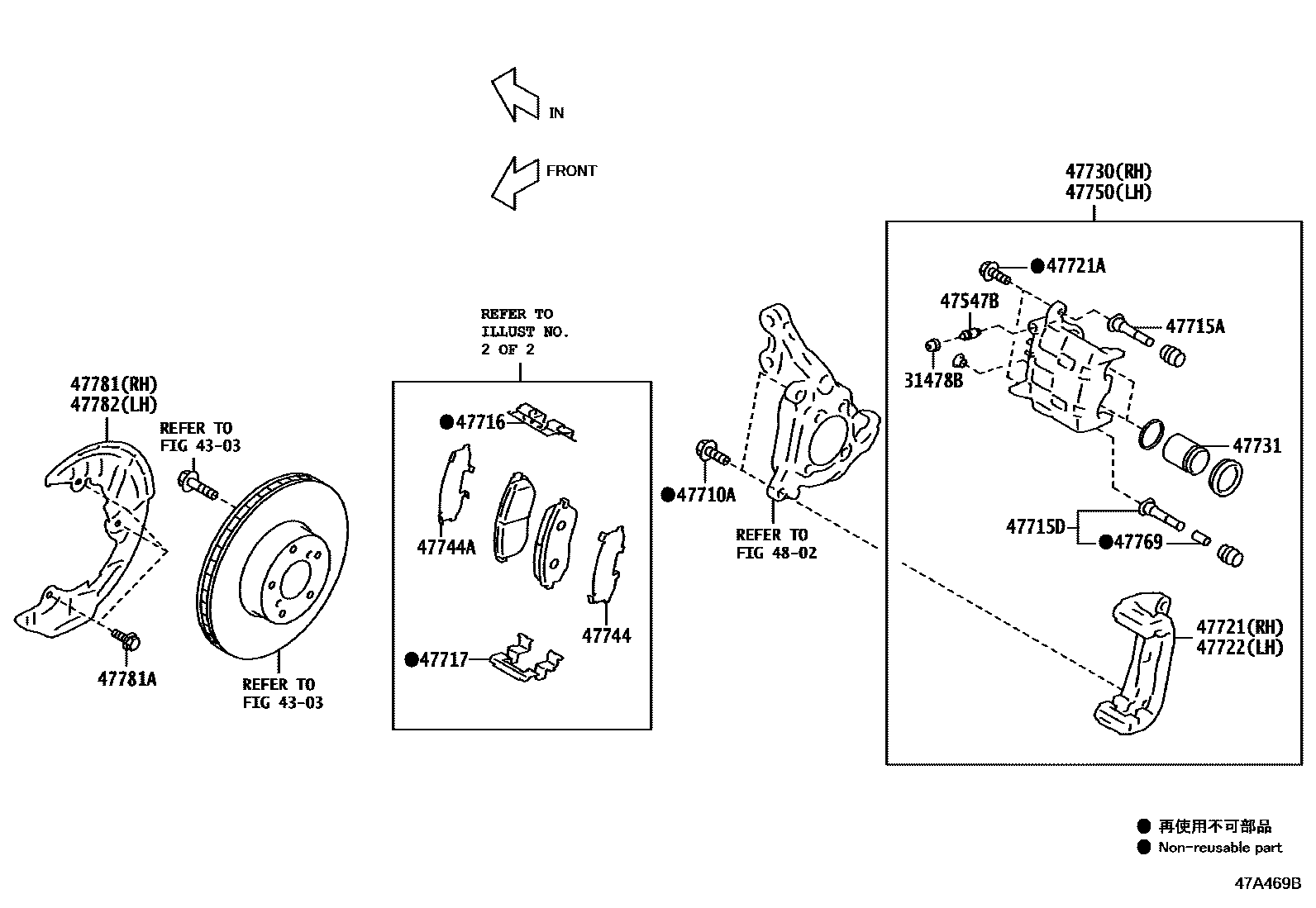

FRONT DISC BRAKE CALIPER & DUST COVER

0001 12POD TYPE 0002 12POD TYPE 0003 14POD TYPE 0004 14POD TYPE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

mainSU00301627iZN6..F201607-201907

subSU003-12086

mainSU00301627iZN6201908-202012

2POD TYPE

subSU003-12086

mainSU00306296iZN6..6F..(HI2,STD)201908-202012

4POD TYPE

mainSU00306296iZN6..TRD201807-201907

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

mainSU00300582iZN6201607-201907

mainSU00300582iZN6201908-202012

2POD TYPE

mainSU00306295iZN6..6F..(HI2,STD)201908-202012

4POD TYPE

mainSU00306295iZN6..TRD201807-201907

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

mainSU00302841iZN6..F201607-201806

mainSU00306369iZN6..TRD201807-201907

M12X54

mainSU00307586iZN6..6F..(HI2,STD)201807-202012

M12-19

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=NC

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=MD

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=ND

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=NK

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=MC

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=NJ

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=MJ

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=MK

mainSU00307586iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

M12-19,OPTION CODE=1C

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

mainSU00305830iZN6201908-202012

2POD TYPE

mainSU00305830iZN6..F201607-201907

mainSU00306288iZN6..6F..(HI2,STD)201908-202012

4POD TYPE

mainSU00306288iZN6..TRD201807-201907

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

mainSU00305829iZN6201607-202012

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

mainSU00300578iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MJ

mainSU00300578iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MK

mainSU00300578iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=1C

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NC

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=MD

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=ND

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NK

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=MC

mainSU00300578iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NJ

mainSU00300578iZN6201607-201907

mainSU00306290iZN6..TRD201807-201907

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

mainSU00300577iZN6201607-202012

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MD

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=ND

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NK

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MC

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NJ

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MJ

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MK

mainSU00300572iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=1C

mainSU00300572iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NC

mainSU00300572iZN6201607-201907

mainSU00306297iZN6..TRD201807-201907

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

mainSU00300575iZN6201607-202012

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

mainSU00300573iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NK

mainSU00300573iZN6201607-201907

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NC

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MD

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=ND

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MC

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NJ

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MJ

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MK

mainSU00300573iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=1C

mainSU00306297iZN6..TRD201807-201907

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

mainSU00306070iZN6..HI1,HI2,SPE1,SPE2,STD201607-201907

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NC

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MD

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=ND

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NK

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MC

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NJ

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MJ

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MK

subSU003-10486

mainSU00306070iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=1C

subSU003-10486

mainSU00307197iZN6..TRD201807-201907

mainSU00310486iZN6..6F..(HI2,STD)202006-202012

OPTION CODE=MD

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=NC

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=ND

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=NK

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MC

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=NJ

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MJ

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MK

subSU003-12031

mainSU00310486iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=1C

subSU003-12031

47731PISTON, FRONT DISC BRAKE

mainSU00300634iZN6..HI1,HI2,SPE1,SPE2,STD201607-202012

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

mainSU00306292iZN6..TRD201807-201907

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MD

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=ND

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NK

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MC

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NJ

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MJ

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MK

mainSU00306294iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=1C

mainSU00306294iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=NC

mainSU00306294iZN6201607-201907

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

mainSU00306291iZN6..TRD201807-201907

mainSU00306293iZN6..6F..(HI2,STD)201908-202012

OPTION CODE=MD

mainSU00306293iZN6201607-201907

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NC

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=ND

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NK

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MC

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=NJ

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MJ

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=MK

mainSU00306293iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202012

OPTION CODE=1C

47750CYLINDER ASSY, DISC BRAKE, LH

mainSU00306071iZN6..6F..(HI2,STD)201908-202006

OPTION CODE=1C

subSU003-10502

mainSU00306071iZN6..HI1,HI2,SPE1,SPE2,STD201607-201907

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NC

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MD

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=ND

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NK

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MC

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=NJ

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MJ

subSU003-10502

mainSU00306071iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)201908-202006

OPTION CODE=MK

subSU003-10502

mainSU00307198iZN6..TRD201807-201907

mainSU00310502iZN6..6F..(HI2,STD)202006-202012

OPTION CODE=NC

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MD

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=ND

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=NK

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MC

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=NJ

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MJ

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=MK

subSU003-12032

mainSU00310502iZN6..6FC;ZN6..6F..(HI1,SPE1,SPE2)202006-202012

OPTION CODE=1C

subSU003-12032

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

mainSU00300576iZN6..HI1,HI2,SPE1,SPE2,STD201607-202012

47781COVER, DISC BRAKE DUST, FRONT RH

mainSU00306803iZN6201607-202012

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

mainSU00302783iZN6..F201607-202012

47782COVER, DISC BRAKE DUST, FRONT LH

mainSU00306804iZN6..F201607-202012

4802

21 parts on this diagram · 4 diagrams in section
