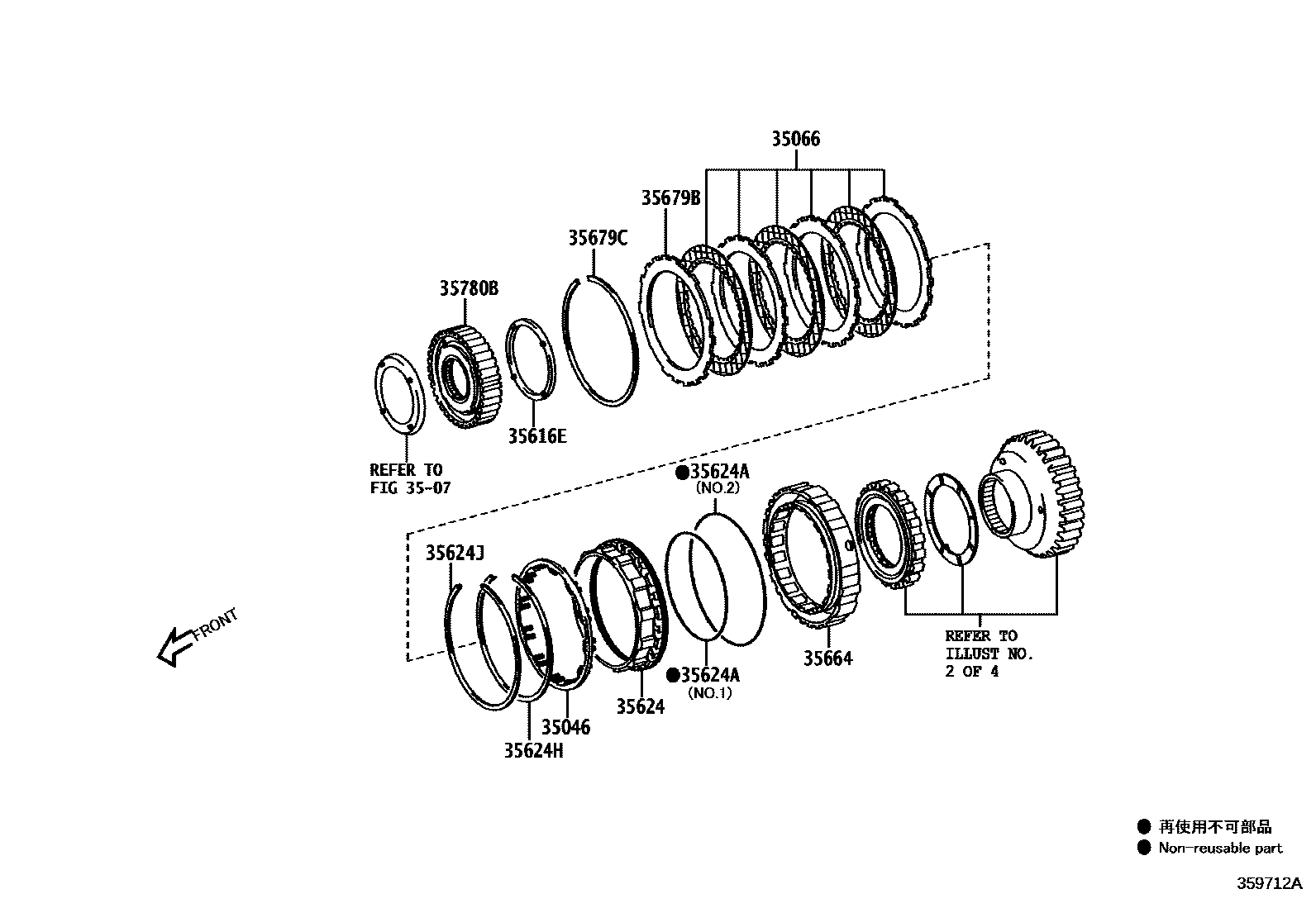

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1TX6A 0002 1TX6A 0003 1TX6A 0004 1TX6A

35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3

mainSU00304149iZN6..6FC201607-202012

35066DISC SET, 2ND BRAKE

mainSU00303661iZN6..6FC201607-202012

3507

35616EWASHER,CLUTCH DRUM THRUST

mainSU00303493iZN6..6FC201607-202012

35624PISTON, 2ND BRAKE

mainSU00304150iZN6..6FC201607-202012

35624ARING, O (FOR 2ND BRAKE PISTON)

mainSU00303611iZN6..6FC201607-202012

NO.1:REFER ILLUST.

mainSU00304142iZN6..6FC201607-202012

NO.2:REFER ILLUST.

35624HRING, SNAP (FOR 2ND BRAKE PISTON)

mainSU00303548iZN6..6FC201607-202012

35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)

mainSU00303542iZN6..6FC201607-202012

35664CYLINDER, 2ND BRAKE

mainSU00304151iZN6..6FC201607-202012

35679BFLANGE, BRAKE, NO.3

mainSU00303779iZN6..6FC201607-202012

35679CRING, SNAP (FOR BRAKE NO.3)

mainSU00303543iZN6..6FC201607-202012

35780BCLUTCH ASSY, 1 WAY N0.2

mainSU00303814iZN6..6FC201607-202012

12 parts on this diagram · 4 diagrams in section
