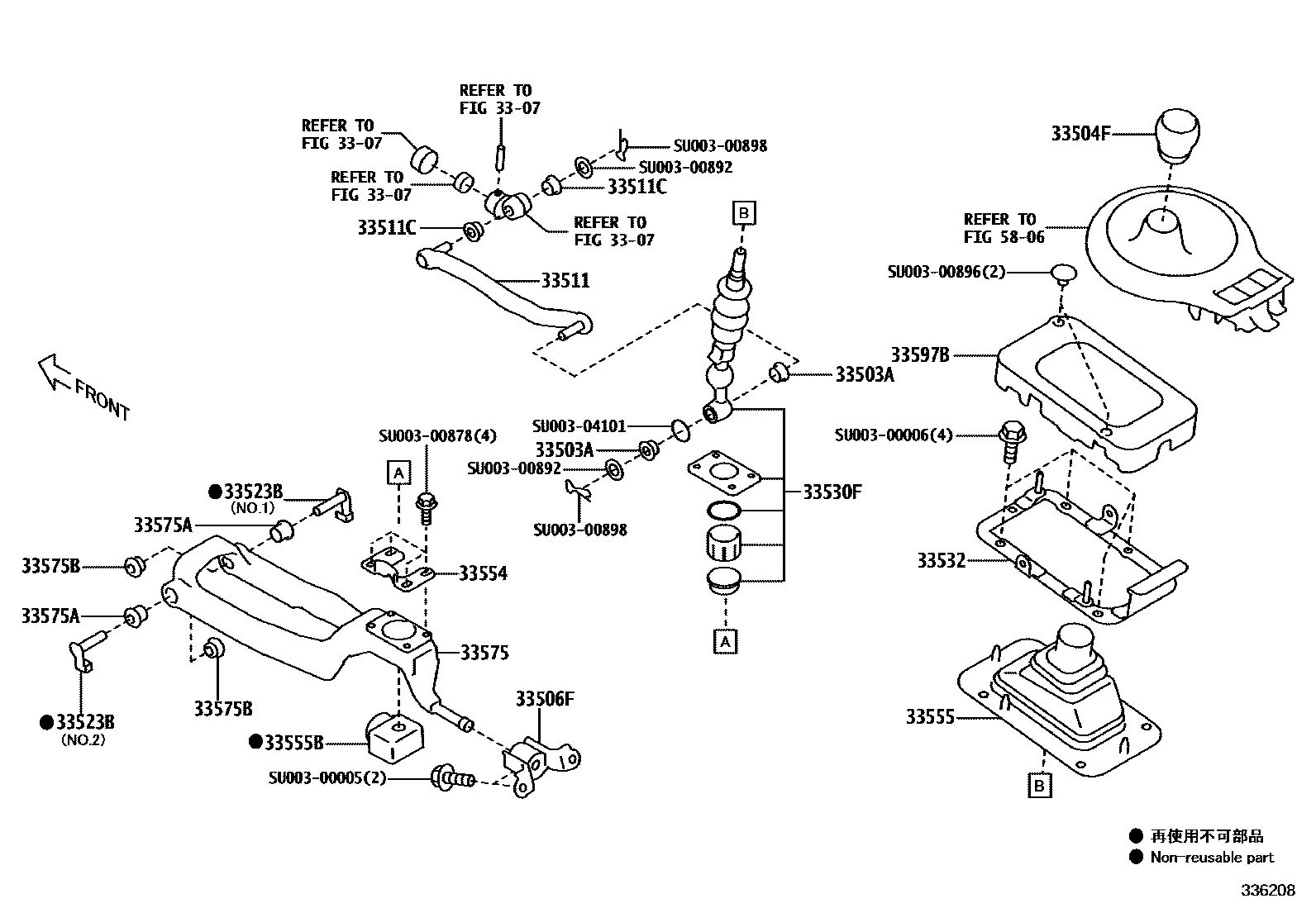

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

3307

33503ACOLLAR(FOR SHIFT LEVER)

mainSU00300886iZN6..6F201607-202012

33504FKNOB SUB-ASSY, SHIFT LEVER

mainSU00300884iZN6..6F..HI201607-201711

TRIM3#

subSU003-08085

mainSU00300932iZN6..6FC..HI201607-201711

TRIM3#

mainSU00307111iZN6..6F..(HI,STD)201607-201711

TRIM2#

mainSU00307113iZN6..6FC..(HI,STD)201607-201711

TRIM2#

mainSU00307439iZN6..6F..SPE201607-201711

mainSU00307447iZN6..6FC..SPE201607-201711

mainSU00307720iZN6..6F201711-202012

mainSU00307721iZN6..6FC201711-202012

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300890iZN6..6F201607-202012

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

mainSU00300893iZN6..6F201607-202012

33511CCOLLAR (FOR CONTROL SHAFT)

mainSU00300886iZN6..6F201607-202012

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300899iZN6..6F201607-202012

NO.1:REFER ILLUST.

mainSU00300900iZN6..6F201607-202012

NO.2:REFER ILLUST.

mainSU00300925iZN6..6FC..F201607-202012

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

mainSU00304598iZN6..6F..F201607-202012

33532PLATE, DUST BOOT

mainSU00300891iZN6..6F201607-202012

33554CAP, SHIFT LEVER

mainSU00300877iZN6..6F..F201607-202012

33555BOOT, SHIFT LEVER

mainSU00300879iZN6..6F201607-202012

33555BBOOT, SHIFT & SELECT LEVER

mainSU00300881iZN6..6F201607-202012

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300887iZN6..6F201607-202012

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

mainSU00300888iZN6..6F201607-202012

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

mainSU00300889iZN6..6F201607-202012

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

mainSU00300880iZN6..6F201607-202012

5806

SU00300005

mainSU003-00005

SU00300006

mainSU003-00006

SU00300878

mainSU003-00878

SU00300892

mainSU003-00892

SU00300896

mainSU003-00896

SU00300898

mainSU003-00898

SU00304101

mainSU003-04101

24 parts on this diagram · 4 diagrams in section
