CLUTCH MASTER CYLINDER

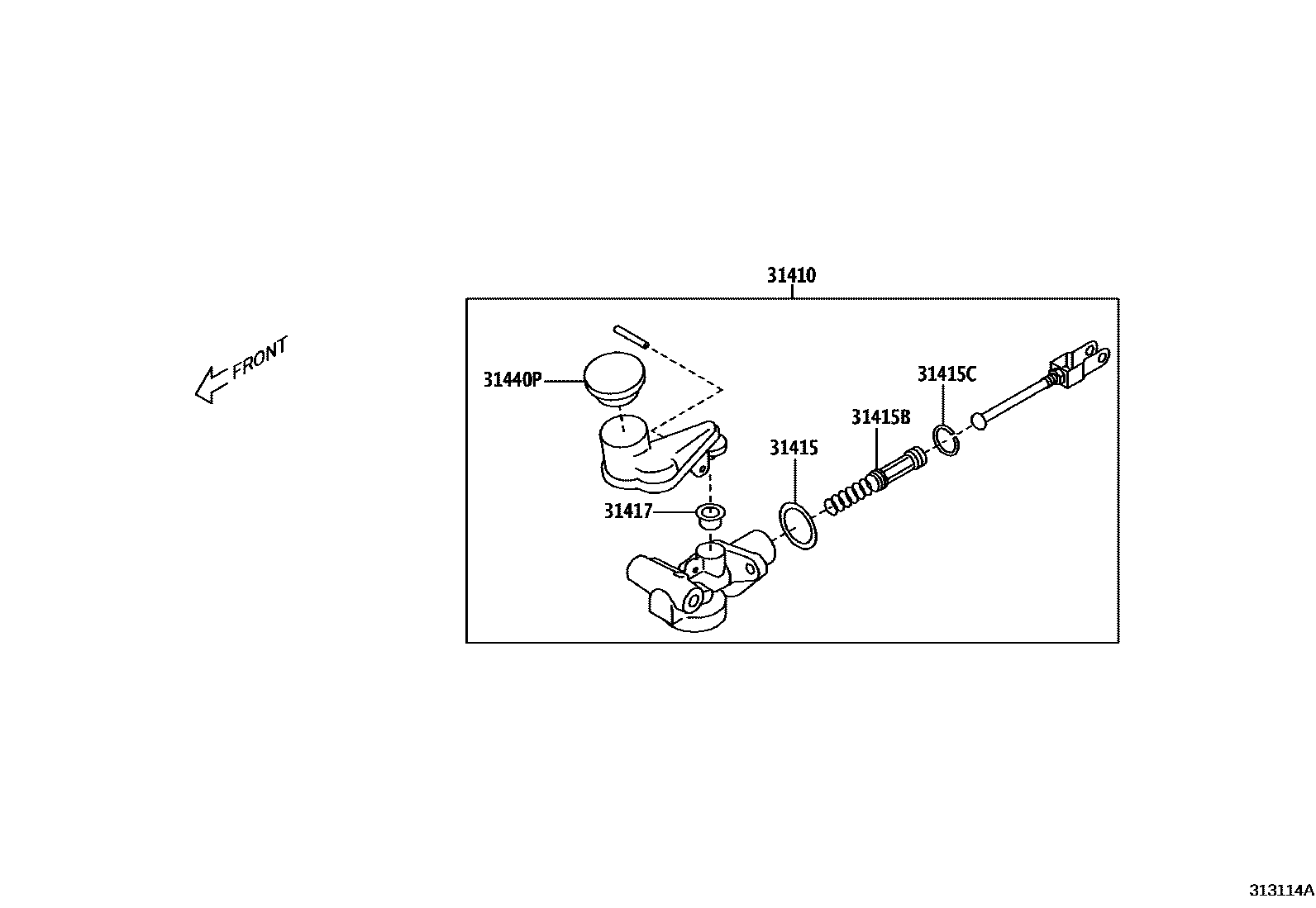

Parts diagram

31410CYLINDER ASSY, CLUTCH MASTER

mainSU00307118i201607-202011

mainSU00310487i202011-202012

31415GASKET, CLUTCH MASTER CYLINDER

mainSU00300994i201607-202012

31415BPISTON ASSY

mainSU00300992i201607-202012

31415CSTOP RING

mainSU00300126i201607-202012

31417GROMMET, CLUTCH RESERVOIR

mainSU00300592i201607-202012

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

mainSU00307119i201607-202012

6 parts on this diagram · 1 diagram in section
