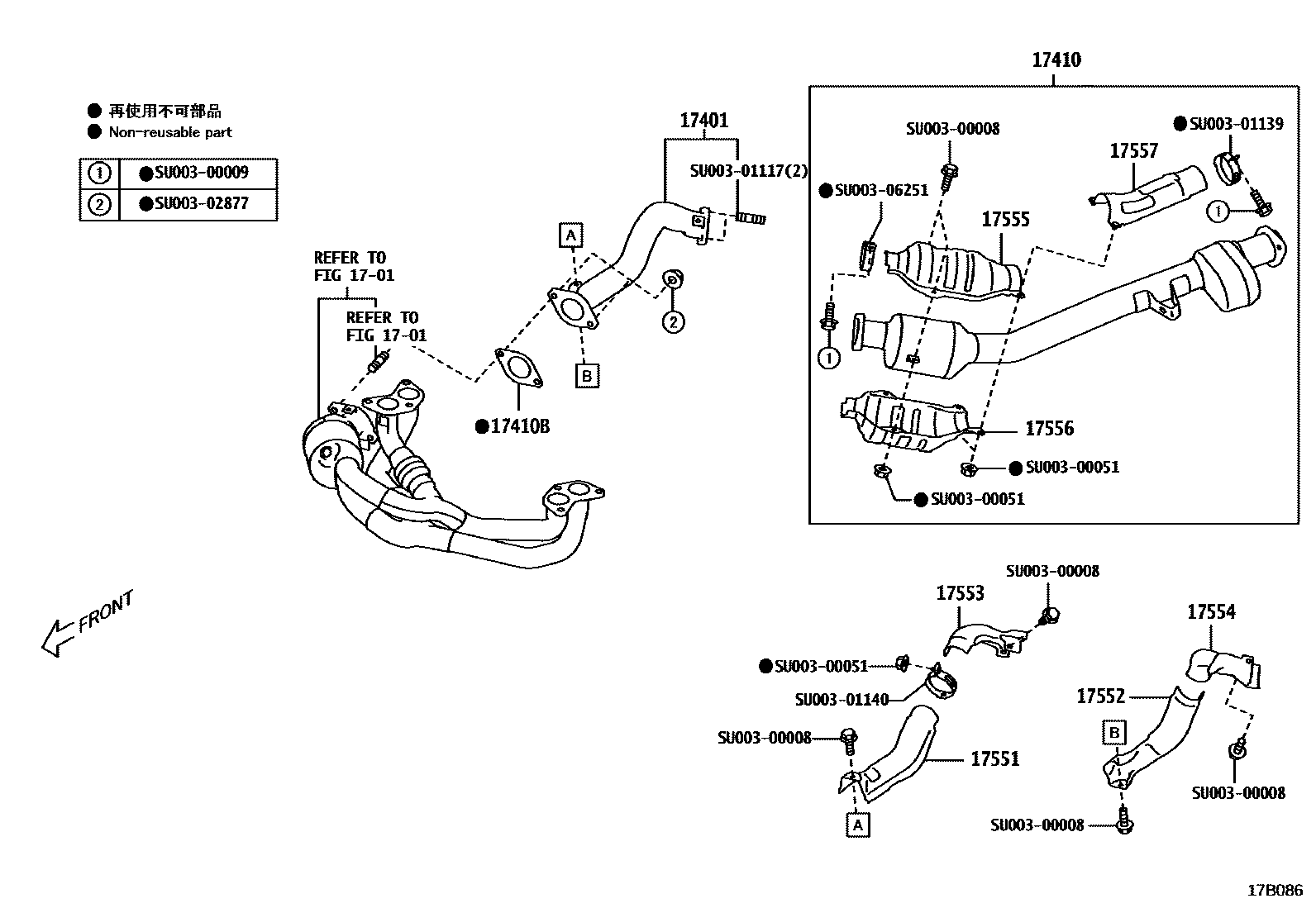

EXHAUST PIPE
1701
17401PIPE SUB-ASSY, EXHAUST, FRONT
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
subSU003-10928
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17553INSULATOR, EXHAUST PIPE HEAT, NO.3
17554INSULATOR, EXHAUST PIPE HEAT, FRONT
17555INSULATOR, EXHAUST PIPE HEAT, NO.5
17556INSULATOR, EXHAUST PIPE HEAT, NO.6
17557INSULATOR, EXHAUST PIPE HEAT, NO.7
SU00300008
mainSU003-00008
SU00300009
mainSU003-00009
SU00300051
mainSU003-00051
SU00301117
mainSU003-01117
SU00301139
mainSU003-01139
SU00301140
mainSU003-01140
SU00302877
mainSU003-02877
SU00306251
mainSU003-06251
19 parts on this diagram · 3 diagrams in section
