HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL(AUTO) 0002 1HEATER CONTROL(MANUAL) 0003 1AIR DUCT(UPPER) 0004 1AIR DUCT(LOWER) 0005 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

mainSU00302092iZN6..HI201203-201207

mainSU00304549iZN6..HI201207-201303

mainSU00304580iZN6..HI,LIMD201304-201308

mainSU00305939iZN6..(HI,SPE)..D201504-201604

mainSU00307224iZN6..HI,SPE201604-201606

55901BASE SUB-ASSY, HEATER CONTROL

mainSU00302086iZN6..BASE,STD201203-201308

55901DCONTROL SUB-ASSY, HEATER, NO.1

mainSU00302096iZN6..HI,LIMD201203-201308

55905AKNOB, HEATER CONTROL

mainSU00302097×3iZN6..HI,LIMD201203-201308

mainSU00305870×3iZN6..(HI,SPE)..D201504-201606

55905BKNOB, HEATER CONTROL, NO.2

mainSU00302104iZN6..HI,LIMD201203-201308

mainSU00305940iZN6..(HI,SPE)..D201504-201606

SU00302105

mainSU003-02105

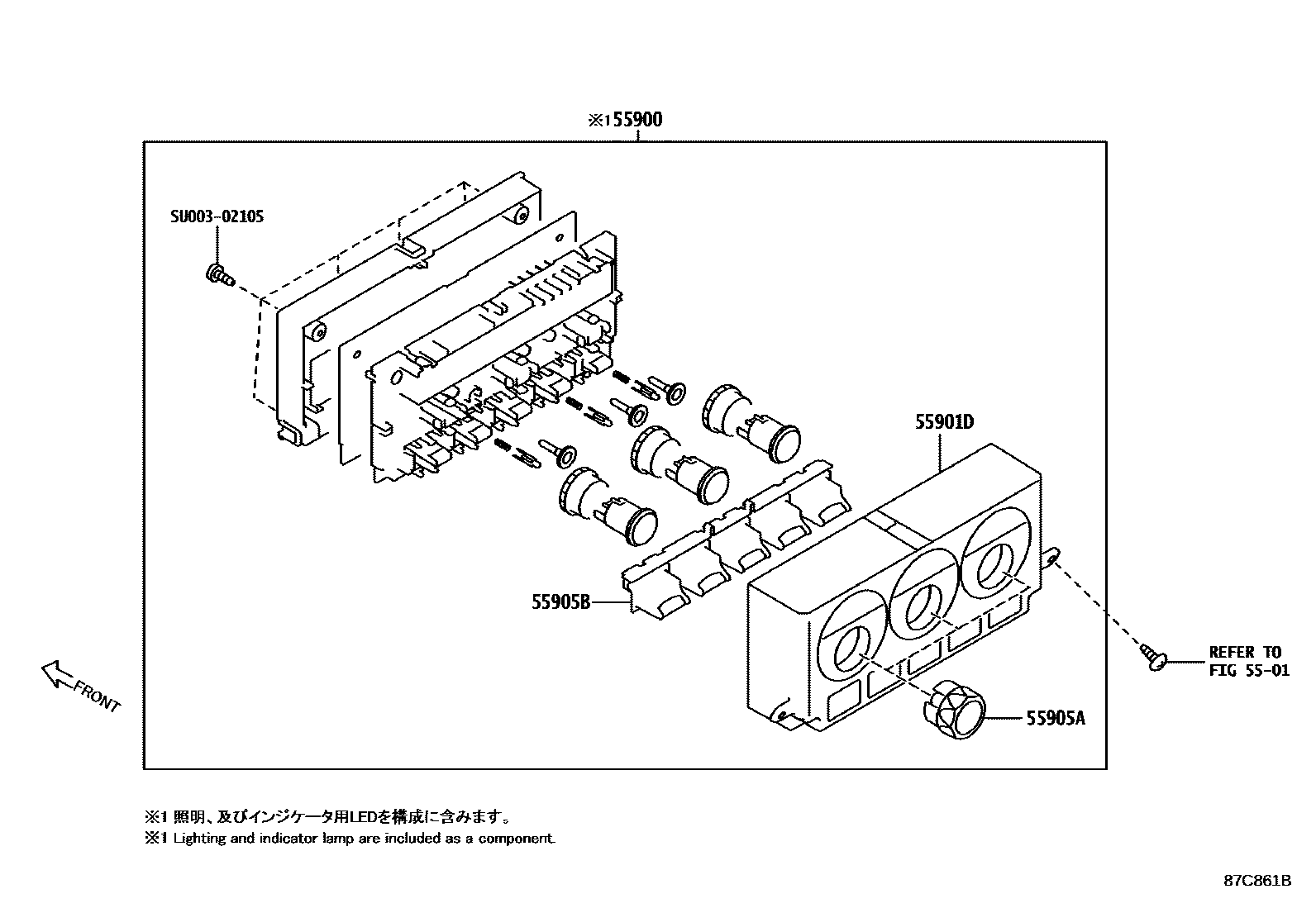

7 parts on this diagram · 5 diagrams in section
