FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL SUCTION TUBE(FUEL PUMP) 0003 1FUEL TANK BAND & PROTECTOR 0004 1CHARCOAL CANISTER & FILLER PI0005 1FUEL(BRAKE) PIPE 0006 1FUEL LID CONTROL CABLE & LEVE0007 1FUEL FILLER OPENING LID

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00301105iZN6201203-201606

77023BFILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

mainSU00301081iZN6201203-201606

77100TANK ASSY, FUEL

mainSU00301013iZN6..B201203-201606

77144RETAINER, FUEL PUMP GAUGE

mainSU00301023iZN6201203-201606

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042iZN6201203-201606

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00301019iZN6201203-201606

subSU003-07284

mainSU00307284iZN6201606-201606

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00301084iZN6201203-201606

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00301085iZN6201203-201606

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00301030iZN6201203-201606

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00301093iZN6201203-201606

77404HOSE SUB-ASSY, FUEL TANK VENT

mainSU00301103iZN6201203-201606

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00301070iZN6201203-201606

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047iZN6201203-201606

77652ACUSHION, FUEL TANK, NO.2

mainSU00301045iZN6201203-201606

8401

SU00301015

mainSU003-01015

SU00301016

mainSU003-01016

SU00304078

mainSU003-04078

SU00304167

mainSU003-04167

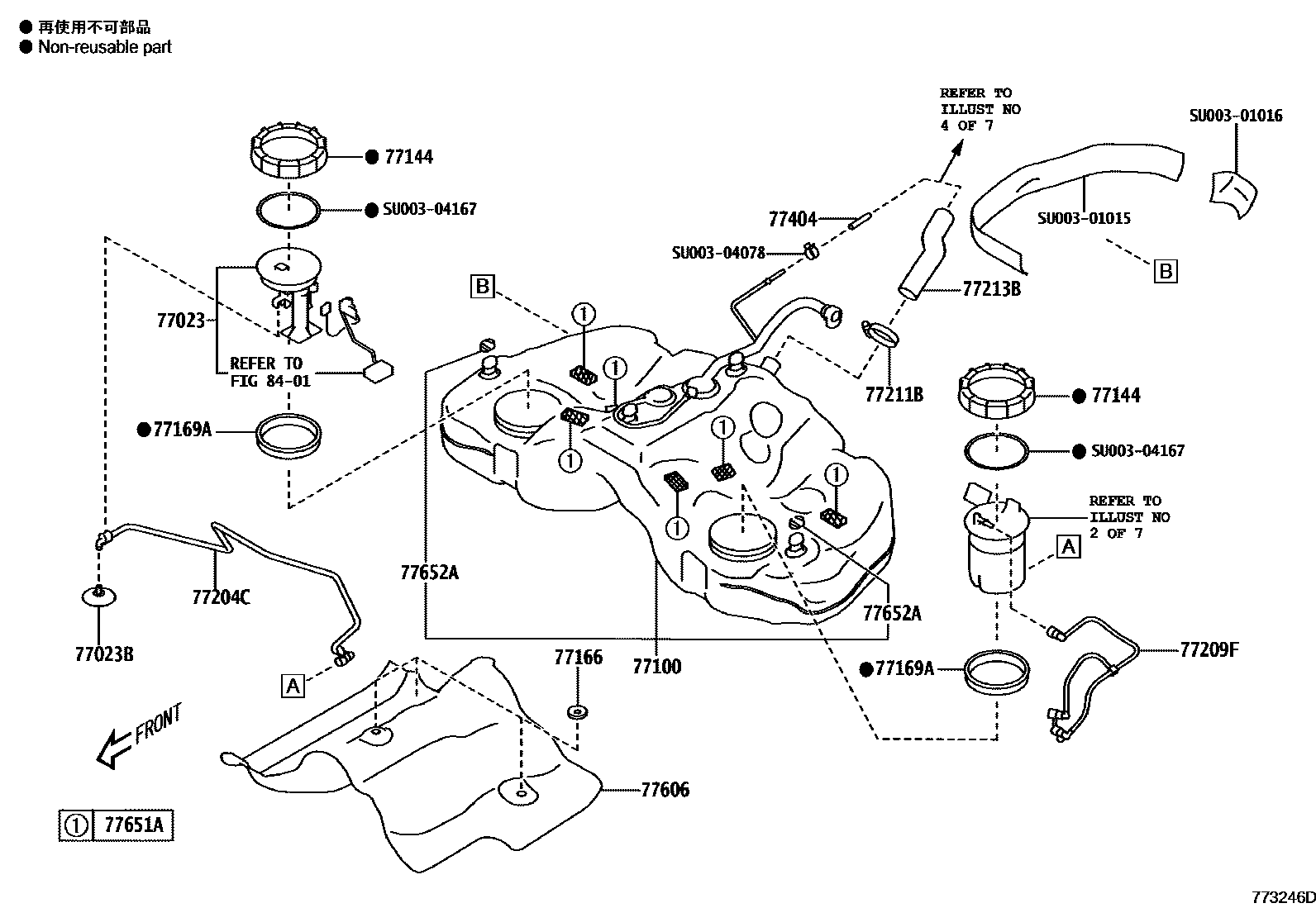

19 parts on this diagram · 7 diagrams in section
