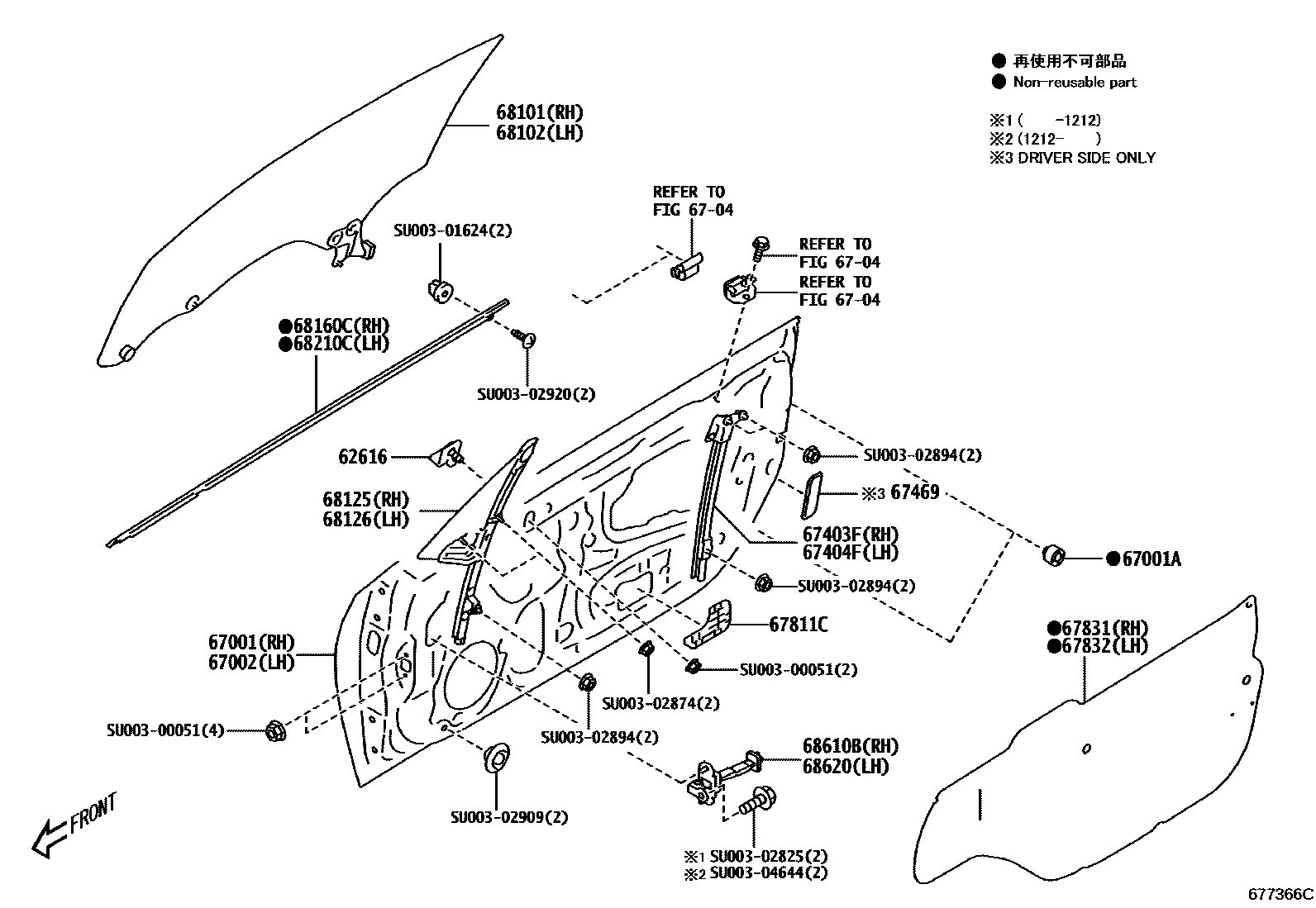

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHER STRIP 0003 1DOOR SPEAKER 0004 1DOOR TRIM

62616STOPPER, FRONT DOOR SASH

mainSU00304118iZN6201203-201606

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00301558iZN6201203-201606

67001ACUSHION, FRONT DOOR PANEL

mainSU00304136iZN6201203-201606

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00301559iZN6201203-201606

6704

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00301608iZN6201203-201606

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00301609iZN6201203-201606

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625iZN6..D201203-201606

67811CCOVER, FRONT DOOR HOLE

mainSU00301604iZN6..C201203-201606

RH

mainSU00301605iZN6..D201203-201606

LH

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00301610iZN6..(BASE,HI)..D201203-201606

mainSU00301612iZN6..(LIMD,STD)..C201203-201606

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00301611iZN6..(BASE,HI)..C201203-201606

mainSU00301613iZN6..LIMD,STD201203-201606

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0001iZN6201203-201307

subSU003-G0019

mainSU003G0019iZN6201307-201604

mainSU003G0024iZN6201604-201606

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0002iZN6201203-201307

subSU003-G0020

mainSU003G0020iZN6201307-201604

mainSU003G0025iZN6201604-201606

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0010iZN6201203-201404

subSU003-G0022

mainSU003G0022iZN6..C201404-201606

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0011iZN6201203-201404

subSU003-G0023

mainSU003G0023iZN6..C201404-201606

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00304334iZN6201203-201207

subSU003-04531

mainSU00304531iZN6201207-201304

subSU003-04771

mainSU00304771iZN6201304-201312

subSU003-05207

mainSU00305207iZN6201312-201404

subSU003-05659

mainSU00305659iZN6201405-201606

subSU003-08595

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00304335iZN6201203-201207

subSU003-04532

mainSU00304532iZN6201207-201304

subSU003-04772

mainSU00304772iZN6201304-201312

subSU003-05208

mainSU00305208iZN6201312-201404

subSU003-05660

mainSU00305660iZN6201405-201606

subSU003-08596

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00301567iZN6201203-201606

subSU003-07368

68620CHECK ASSY, FRONT DOOR, LH

mainSU00301567iZN6201203-201606

subSU003-07368

SU00300051

mainSU003-00051

SU00301624

mainSU003-01624

SU00302825

mainSU003-02825

SU00302874

mainSU003-02874

SU00302894

mainSU003-02894

SU00302909

mainSU003-02909

SU00302920

mainSU003-02920

SU00304644

mainSU003-04644

27 parts on this diagram · 4 diagrams in section
