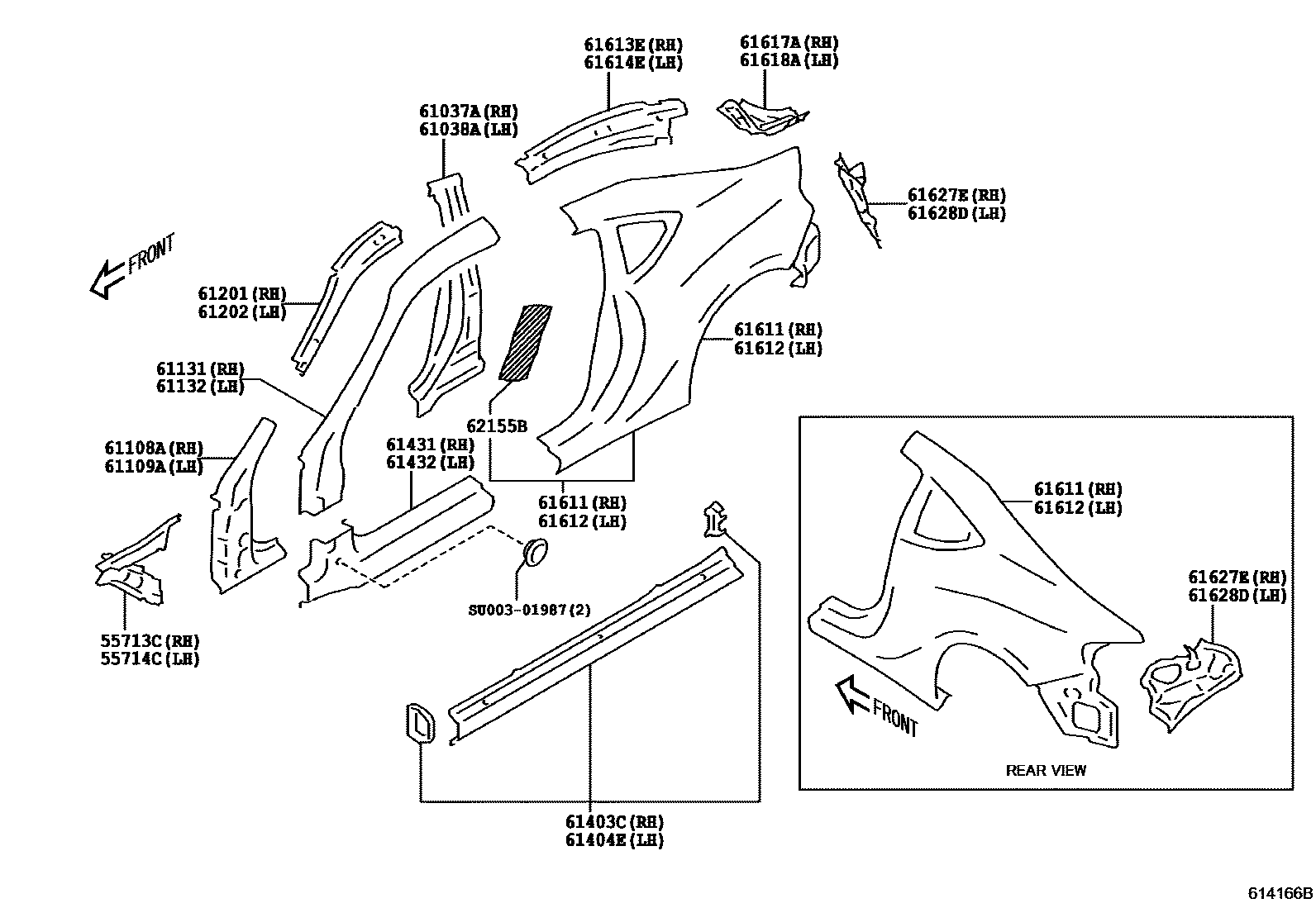

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL 0003 1REAR WHEEL HOUSE LINER

55713CPANEL, COWL TOP SIDE, RH

mainSU00301255iZN6201203-201308

55714CPANEL, COWL TOP SIDE, LH

mainSU00301256iZN6201203-201308

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

mainSU00301257iZN6201203-201308

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

mainSU00301258iZN6201203-201308

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

mainSU00301259iZN6201203-201308

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

mainSU00301260iZN6201203-201308

61131PILLAR, FRONT BODY, UPPER OUTER RH

mainSU00301245iZN6201203-201308

61132PILLAR, FRONT BODY, UPPER OUTER LH

mainSU00301246iZN6201203-201308

61201RAIL SUB-ASSY, ROOF SIDE, RH

mainSU00301261iZN6201203-201308

61202RAIL SUB-ASSY, ROOF SIDE, LH

mainSU00301262iZN6201203-201308

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

mainSU00301270iZN6201203-201308

subSU003-03030

mainSU00305170iZN6201310-201404

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

mainSU00301271iZN6201203-201308

subSU003-03030

mainSU00305171iZN6201310-201404

61431PANEL, ROCKER, OUTER REAR RH

mainSU00301251iZN6201203-201308

61432PANEL, ROCKER, OUTER REAR LH

mainSU00301252iZN6201203-201308

61611PANEL, QUARTER, RH

mainSU00301247iZN6201203-201308

61612PANEL, QUARTER, LH

mainSU00301248iZN6201203-201308

61613EPANEL, QUARTER, INNER RH

mainSU00301263iZN6201203-201308

mainSU00306108iZN6201505-201606

61614EPANEL, QUARTER, INNER LH

mainSU00301264iZN6201203-201308

mainSU00306109iZN6201505-201606

61617APANEL, QUARTER INNER, REAR RH

mainSU00301265iZN6201203-201308

61618APANEL, QUARTER, INNER REAR LH

mainSU00301266iZN6201203-201308

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

mainSU00301267iZN6201203-201308

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

mainSU00301268iZN6201203-201308

62155BPAD, QUARTER PANEL

mainSU00302952×2iZN6201203-201308

SU00301987

mainSU003-01987

24 parts on this diagram · 3 diagrams in section
