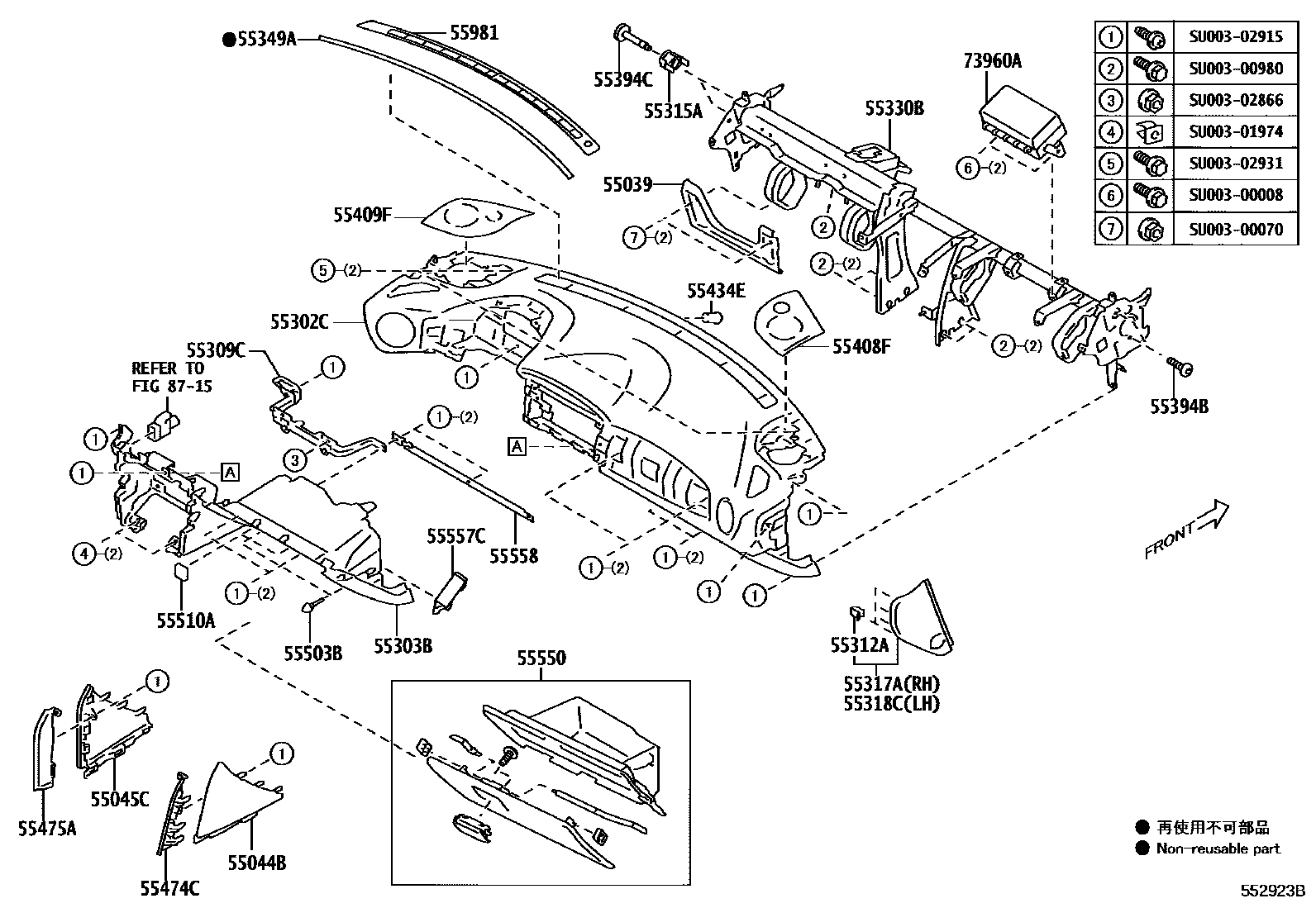

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55039REINFORCEMENT SUB-ASSY,INSTRUMENT PANEL, LOWER

mainSU00304208iZN6..C201404-201504

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

mainSU00301917iZN6..BASE..C201404-201504

mainSU00301919iZN6..(HI,LIMD,STD)..C201404-201504

mainSU00305934iZN6..SPE201504-201606

55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

mainSU00301918iZN6..BASE..C201404-201504

mainSU00301920iZN6..(HI,LIMD,STD)..C201404-201504

mainSU00305935iZN6..SPE201504-201606

55302CPANEL SUB-ASSY, INSTRUMENT

mainSU00301906iZN6201203-201308

subSU003-07341

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

mainSU00301908iZN6..B201307-201404

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

mainSU00301967iZN6..C201404-201504

55312ACLIP, INSTRUMENT PANEL

mainSU00302967iZN6..D201504-201606

55315ASPACER, INSTRUMENT PANEL, NO.1

mainSU00302991×2iZN6..C201404-201504

55317APANEL, INSTRUMENT SIDE, RH

mainSU00301923iZN6..D201504-201606

55318CPANEL, INSTRUMENT SIDE, LH

mainSU00301925iZN6..B201307-201404

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

mainSU00301978iZN6..B201307-201404

55349ACUSHION, INSTRUMENT PANEL

mainSU00301968iZN6..D201504-201606

subSU003-07508

55394BBOLT, INSTRUMENT PANEL

mainSU00302856×2iZN6..D201504-201606

55394CBOLT, INSTRUMENT PANEL

mainSU00302855×2iZN6201203-201308

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

mainSU00301951iZN6..C201404-201504

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

mainSU00301952iZN6..B201307-201404

55434ECAP

mainSU00302961iZN6..B201307-201404

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

mainSU00301927iZN6..BASE..B201307-201404

mainSU00301929iZN6..(HI,LIMD,STD)..C201404-201504

mainSU00305936iZN6..(HI,SPE,STD)..D201504-201606

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

mainSU00301928iZN6..BASE201203-201308

mainSU00301930iZN6..(HI,LIMD,STD)..C201404-201504

mainSU00305937iZN6..(HI,SPE,STD)..D201504-201606

55503BCUSHION(FOR GLOVE COMPARTMENT)

mainSU00301956×2iZN6201203-201308

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

mainSU00304310×2iZN6201203-201308

55550DOOR ASSY, GLOVE COMPARTMENT

mainSU00301954iZN6..C201404-201504

55557CDAMPER, GLOVE COMPARTMENT DOOR

mainSU00301972iZN6..C201404-201504

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

mainSU00301965iZN6201203-201308

55981GARNISH, DEFROSTER NOZZLE, NO.1

mainSU00301946iZN6..STD201203-201308

OPTION CODE=NT

mainSU00301948iZN6..(HI,SPE,STD)..D201504-201606

OPTION CODE=JL

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

mainSU00303428iZN6201203-201308

8715

SU00300008

mainSU003-00008

SU00300070

mainSU003-00070

SU00300980

mainSU003-00980

SU00301974

mainSU003-01974

SU00302866

mainSU003-02866

SU00302915

mainSU003-02915

SU00302931

mainSU003-02931

34 parts on this diagram · 3 diagrams in section
