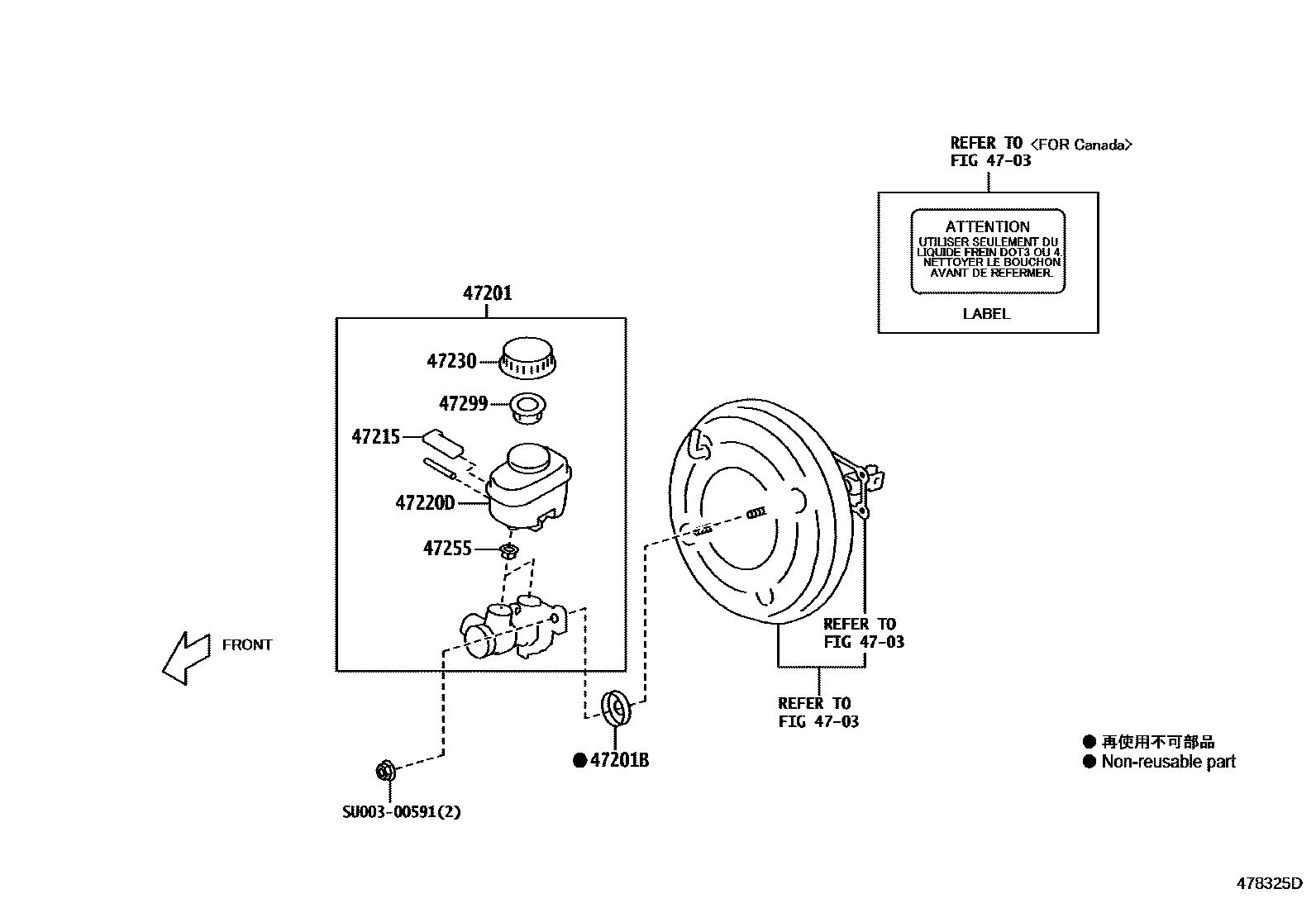

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00304242iZN6201203-201606

subSU003-10514

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iZN6201203-201606

subSU003-12052

47215INDICATOR, BRAKE FLUID

mainSU00304246iZN6201203-201606

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00304288iZN6201203-201606

subSU003-10515

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00304244iZN6201203-201606

subSU003-10494

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245iZN6201203-201606

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iZN6201203-201606

SU00300591

mainSU003-00591

9 parts on this diagram · 1 diagram in section
