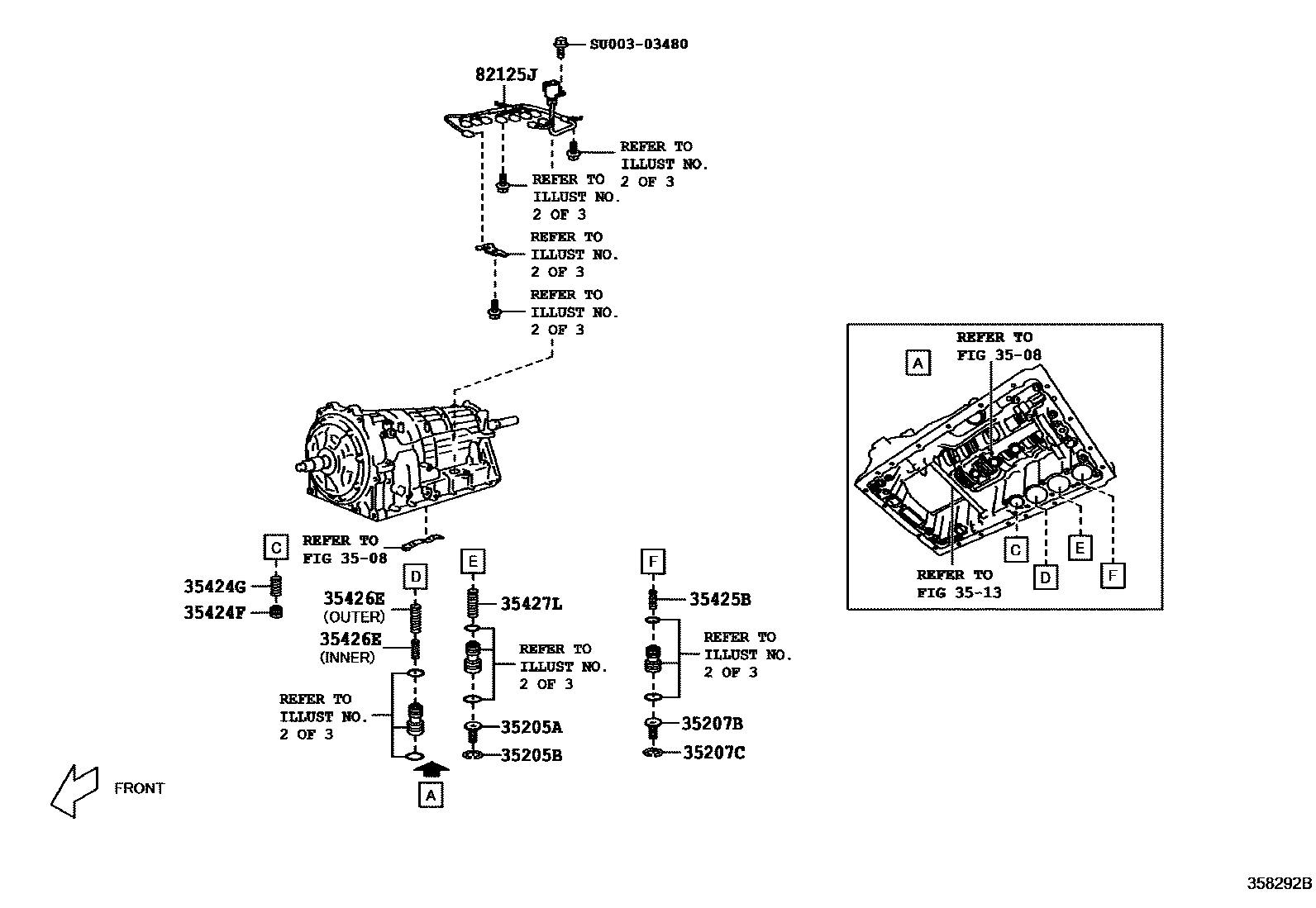

VALVE BODY & OIL STRAINER (ATM)
3508
3513
35205ASPRING SUB-ASSY, B-3 ACCUMULATOR
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207BSPRING SUB-ASSY, C-2 ACCUMULATOR
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35424FVALVE, C-1 ACCUMULATOR
35424GSPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
INNER
OUTER
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
82125JWIRE, TRANSMISSION
SU00303480
mainSU003-03480
13 parts on this diagram · 3 diagrams in section
