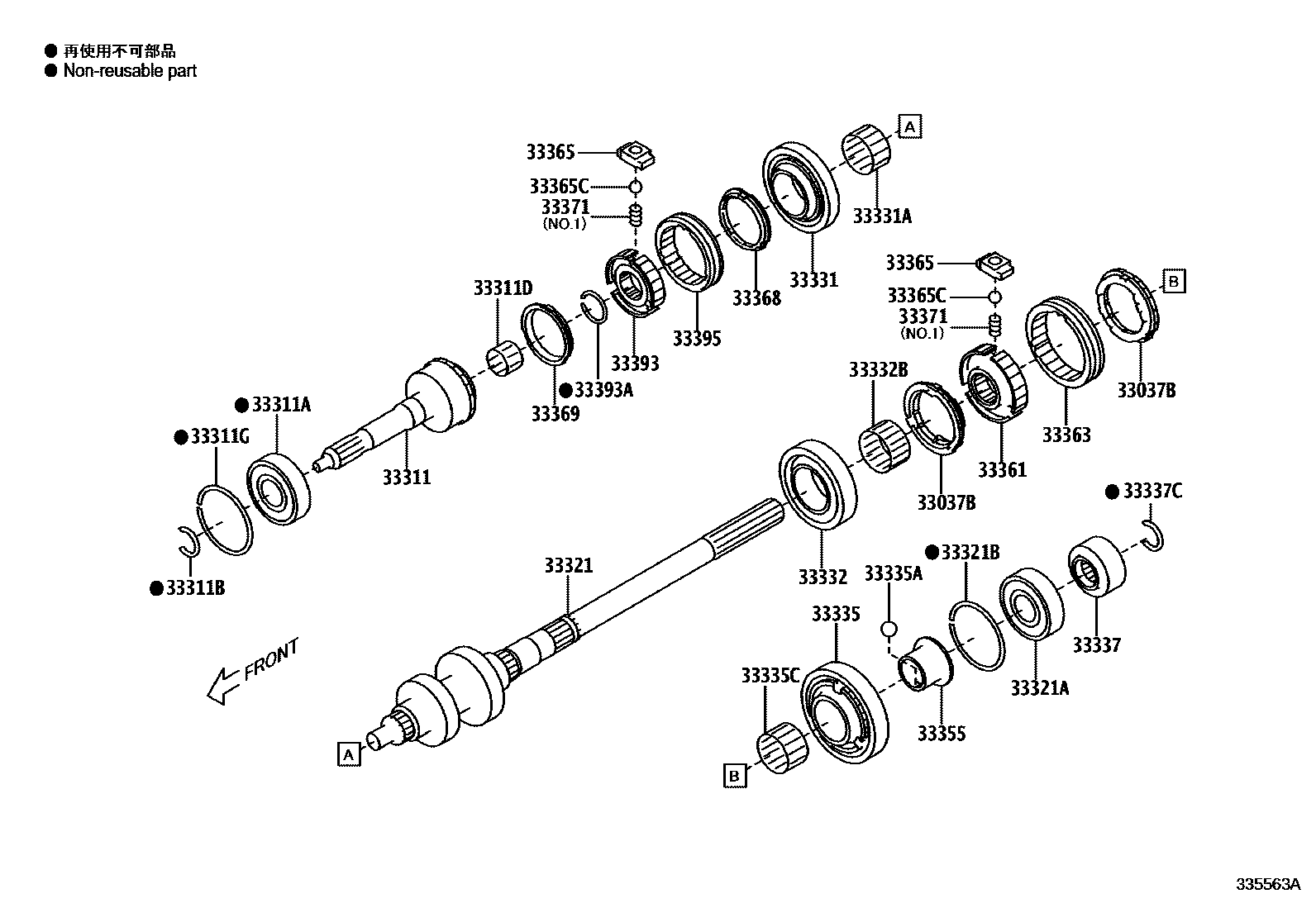

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=1.95-2.20 SET
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33335GEAR, 1ST
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337GEAR SUB-ASSY, 6TH
33337CRING, SHAFT SNAP(FOR 6TH GEAR)
T=2.67
T=2.73
T=2.79
T=2.85
T=2.91
T=2.97
T=3.03
T=3.09
T=3.15
T=3.21
T=3.27
T=2.67-3.27 SET
33355RACE, 1ST GEAR BEARING INNER
33361HUB, TRANSMISSION CLUTCH, NO.1
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
NO.1
NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=1.80-2.05 SET
33395SLEEVE, TRANSMISSION HUB, NO.3
29 parts on this diagram · 2 diagrams in section
