CLUTCH MASTER CYLINDER

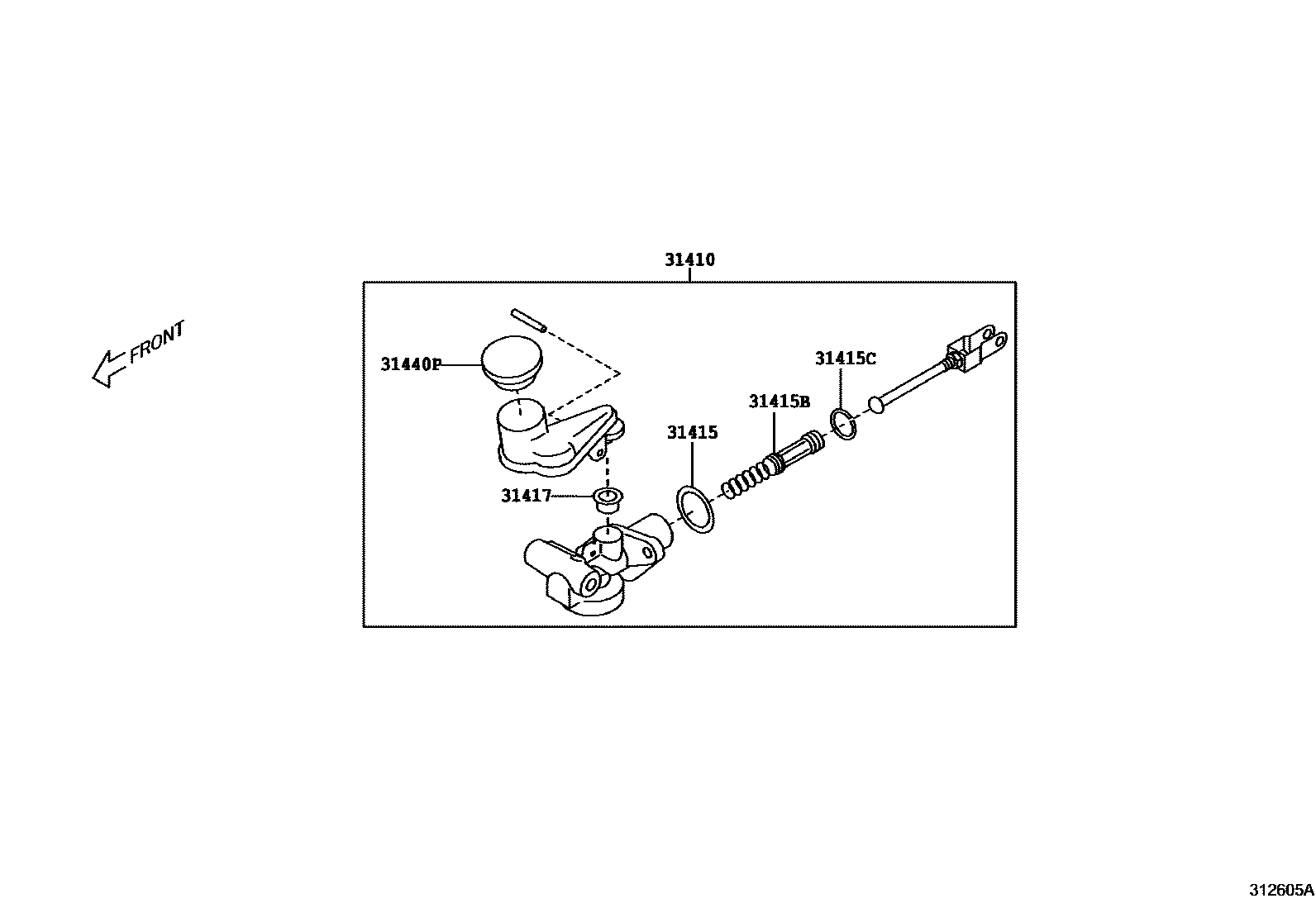

Parts diagram
31410CYLINDER ASSY, CLUTCH MASTER
mainSU00300991i201203-201601
subSU003-10675
mainSU00307118i201602-201606
subSU003-10487
31415GASKET, CLUTCH MASTER CYLINDER
mainSU00300994i201203-201606
31415BPISTON ASSY
mainSU00300992i201203-201606
31415CSTOP RING
mainSU00300126i201203-201606
31417GROMMET, CLUTCH RESERVOIR
mainSU00300592i201203-201606
31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
mainSU00300993i201203-201601
subSU003-07119
mainSU00307119i201602-201606
subSU003-10676

6 parts on this diagram · 1 diagram in section
