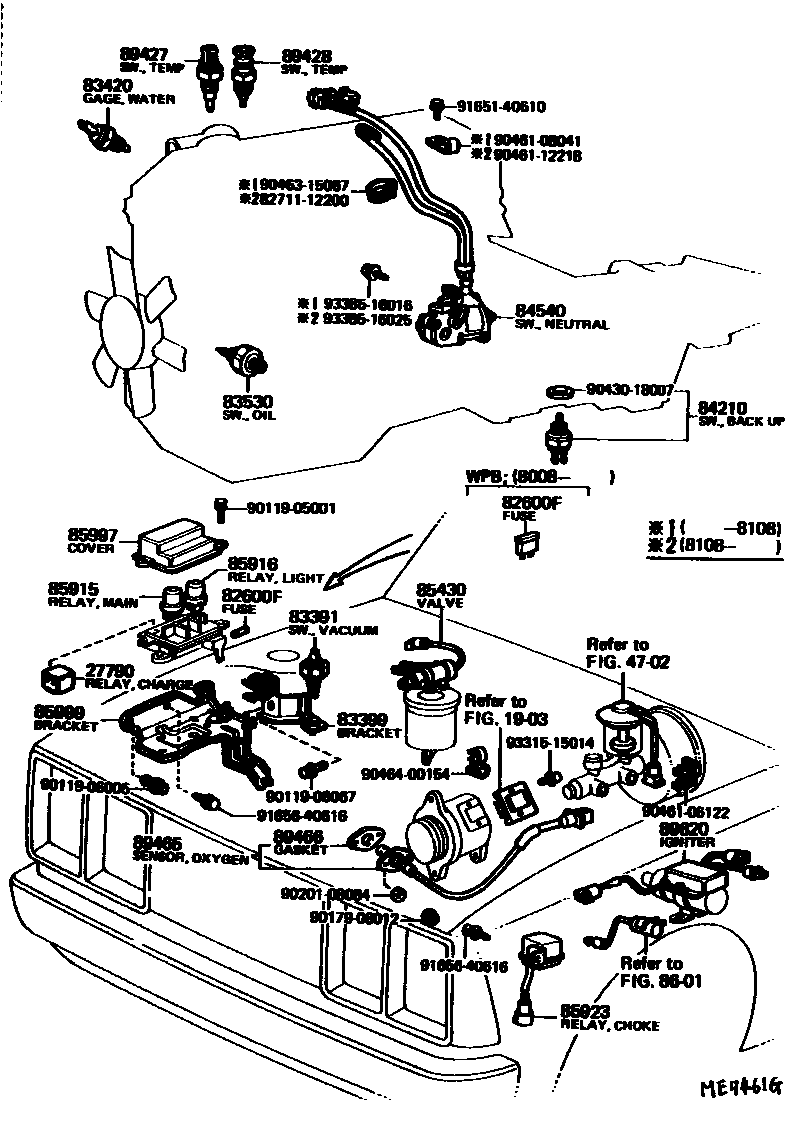

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1903

27790RELAY ASSY, CHARGE LAMP

main27790-13010i20R..RT134..WPB198001-198112

main27790-41010i20R..RT134..LPB197809-198008

4702

82600FFUSE, FUSE BLOCK

main90982-09001iRT134..WPB198001-198112

5A,5A

main90982-09002iRT135198001-198112

10A,10A

main90982-09003iRT134..WPB198001-198112

15A,15A

main90982-09004iRT134..WPB198001-198003

20A,YELLOW,20A

main90982-09005iRT134..WPB198001-198112

7.5A,7.5A

main99118-62005iRT134..LPB197809-198008

5A

main99118-62910iRT134..LPB197809-198008

10A

main99118-62915iRT134..LPB197809-198008

15A,15A

main99118-62920iRT134..LPB197809-198008

20A,20A

83391SWITCH, VACUUM

main83391-14010iRT135;RT134..USA197809-198112

83399BRACKET, VACUUM SWITCH

main83399-20080iRT134..USA197809-197908

main83399-22011iRT134..USA197908-198008

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iRT13#197908-198112

DENSO

sub83420-20020

main83420-20011iRT134197809-197908

main83420-20020iRT13#197908-198112

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRT13#197809-198112

sub83530-14030

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iRT134..MTM197809-198008

main84210-60021iRT135..5F198008-198112

84540SWITCH ASSY, NEUTRAL START

main84540-12090iRT134..ATM197809-198002

sub84540-12130

sub90461-12223

sub93385-16025

main84540-12120iRT134..ATM198002-198008

sub84540-12121

sub90461-12223

sub93385-16025

main84540-14051iRT135..4FC198008-198108

sub84540-22150

main84540-14100iRT135..4FC198108-198112

85430VALVE, OUTER VENT CONTROL

main85430-14010iRT134..USA197809-197810

main85430-14011iRT134..USA197810-197908

main85430-14012iRT134..USA197908-198008

85915RELAY, MAIN

main90987-02001iRT134197809-198006

sub90999-99089

main90987-02002iRT135198012-198112

sub90987-02004

main90987-02004iRT13#198006-198012

85916RELAY, LIGHT CONTROL

main90987-01001iRT134197809-198006

sub90999-99088

main90987-01003iRT13#198006-198112

85923RELAY, CHOKE CONTROL

main85923-20021iRT135198008-198108

85997COVER, RELAY BRACKET

main85997-20010iRT134..LPB197809-198008

main85997-20050iRT135198008-198112

85999BRACKET, COMBINATION RELAY

main85999-20050iRT134197809-198008

sub85999-20051

main85999-20051iRT135198008-198112

8601

89427SWITCH, TEMPERATURE DETECT

main89427-14040iRT13#197908-198112

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRT135..USA198008-198112

89465SENSOR, OXYGEN

main89465-29045iRT135..USA198008-198112

89466GASKET, OXYGEN SENSOR

main89466-30010iRT135..USA198008-198112

sub89466-20020

89620IGNITER ASSY

main89620-14151iRT134..CND197809-198008

sub89620-20H92

main89620-14153iRT135..USA198008-198108

COLD SPEC

sub89620-14H94

main89620-20130iRT135..CND198008-198108

main89620-20131iRT135..CND198108-198112

main89620-20180iRT135..USA198108-198112

COLD SPEC

sub89620-20H93

main89620-35041iRT134..USA197809-197908

sub89620-35H92

main89620-35042iRT134..USA197908-198008

CALIFORNIA SPEC

sub89620-14H95

main89620-35043iRT135..USA198008-198108

sub89620-14H94

main89620-35044iRT135..USA198108-198112

sub89620-20H93

main89620-35051iRT134..USA197809-197908

COLD SPEC

sub89620-35H92

main89620-35052iRT134..USA197908-198008

FEDERAL SPEC

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011905001

main90119-05001

9011906005

main90119-06005

9011906067

main90119-06067

9017908012

main90179-08012

9020108084

main90201-08084

9043018007

main90430-18007

9046106122

main90461-06122

9046108041

main90461-08041

9046112218

main90461-12218

9046315067

main90463-15067

9046400154

main90464-00154

9165140610

main91651-40610

9165640616

main91656-40616

9331515014

main93315-15014

9338516016

main93385-16016

9338516025

main93385-16025

39 parts on this diagram · 4 diagrams in section
