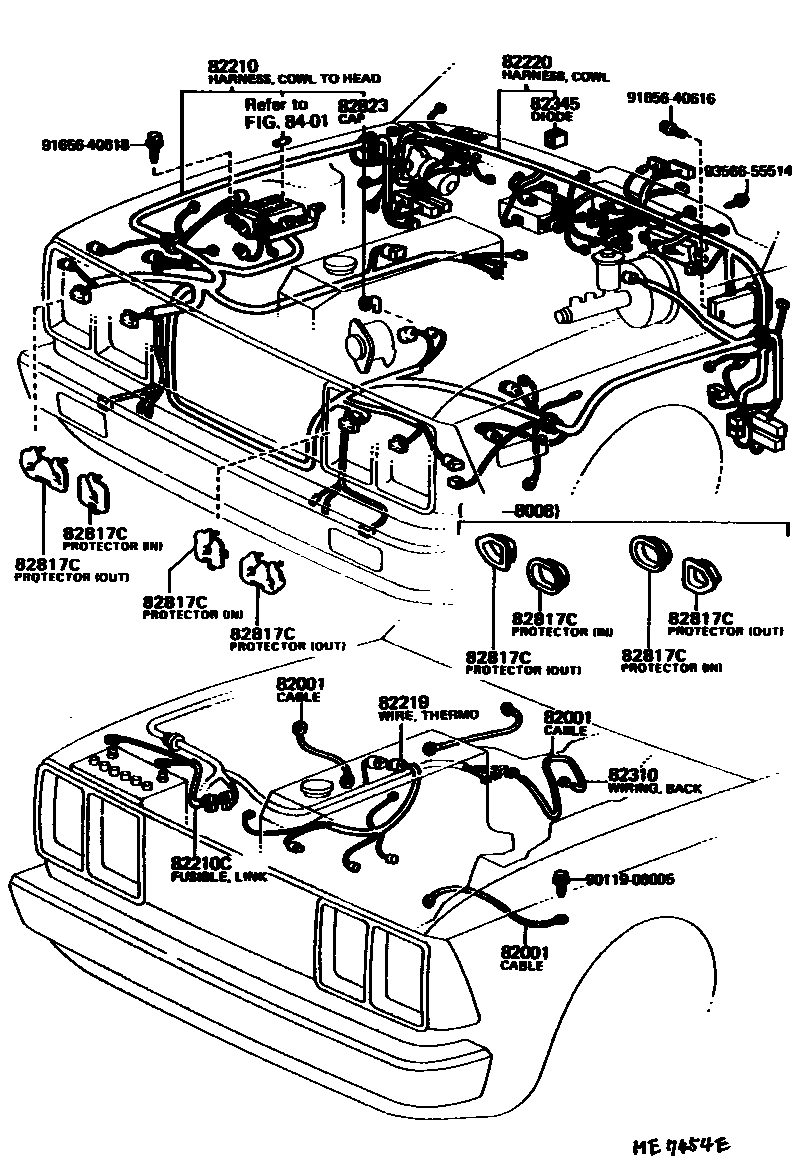

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=210
L=260,MISSION
L=380
L=320,ENGINE
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82219WIRE, THERMO SENSOR
82220HARNESS ASSY, WIRING COWL
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82345DIODE
sub82345-12020
82817PROTECTOR, WIRING HARNESS, NO.1
L=35X35
L=120X170
L=100
L=60X80
82817CPROTECTOR, WIRING HARNESS, NO.4
IN
OUT
IN
OUT:RH
OUT:LH
82823CAP, TERMINAL, NO.1
sub82823-12020
8401
9011906005
main90119-06005
9165640616
main91656-40616
9165640618
main91656-40618
9356655514
main93566-55514
15 parts on this diagram · 7 diagrams in section
