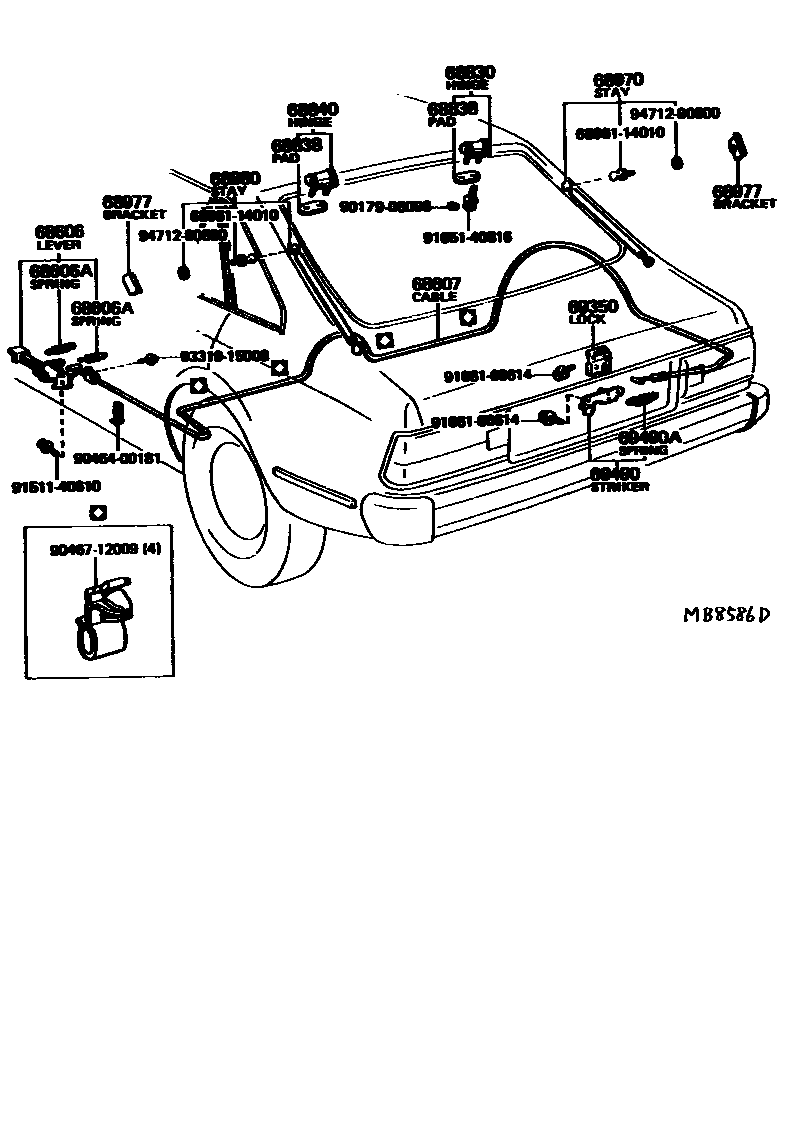

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68970STAY ASSY, BACK DOOR, RH
TOKIKO
TOKIKO
KAYABA
KAYABA
W/RR WIPER
68977BRACKET, BACK DOOR STAY
68980STAY ASSY, BACK DOOR
TOKIKO
TOKIKO
KAYABA
KAYABA
W/RR WIPER
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
6896114010BOLT, BACK DOOR STAY
main68961-14010
9017908096
main90179-08096
9046400181
main90464-00181
9046712009
main90467-12009
9151140610
main91511-40610
9165140816
main91651-40816
9166160614
main91661-60614
9331915008
main93319-15008
9471290800
main94712-90800
21 parts on this diagram · 2 diagrams in section
